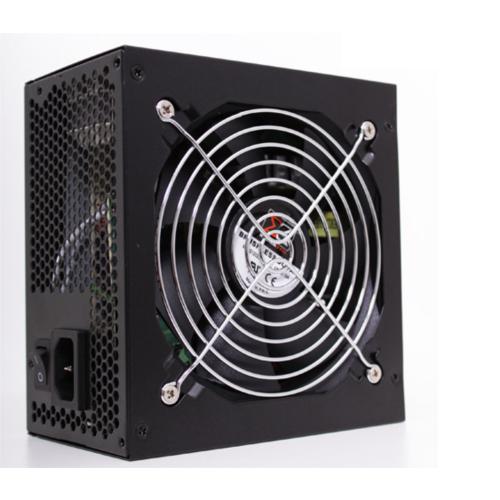

Xigmatek PSU 500W Silent NRP-VC503
[CPH-0500Q-X01]
№: ++751
Manufacturer: Xigmatek
Specifications:
  | ||||||
|
With EMI filter and safety certificates, Xigmatek launched the most suitable budget power supply for common users. Xigmatek VC series power supply describes "Valued-Class" and offers the stable DC output and full electric protection with ideal cost/performance rate. VC series supports latest dual and quad cores CPU and mid-end graphic cards for home entertainment and gaming.
Overview
|
Features
 |
|
Specification
|
Product Name |
NRP-VC503 | |||
|
Product Number |
CPH-0500Q-X01 | |||
|
Power |
500W | |||
|
Dimension |
150mm(L) x 150mm(W) x 86mm(H) | |||
|
Switches |
ATX Logic on-off additional power rocker switch | |||
|
Power Factor |
PF > 0.75 | |||
|
Cooling System |
120mm Fan, Max. 2000RPM±10% | |||
|
Hold-up Time |
16 ms | |||
|
INPUT | ||||
|
Input Voltage |
115/230VAC (None-PFC), 230V (Passive-PFC) | |||
|
Input Frequency Range |
47/63Hz | |||
|
MTBF |
100,000 hrs minimum (at 25℃) | |||
|
Input Current |
115Vac/10A max. 230Vac/5A max. | |||
|
OUTPUT | ||||
| Max/Min | Regulation | Ripple & Noise | Output | |
|
+5V |
16.0A/0.3A | +5, -5% | 50mV | 130W |
|
+3.3V |
22.0A/0.5A | +5, -5% | 50mV | |
|
+12V1 |
15.0A/1.0A | +5, -5% | 120mV | 180W |
|
+12V2 |
16.0A/1.0A | +5, -5% | 120mV | 192W |
|
-12V |
0.8A/0.0A | +10, -10% | 120mV | 9.6W |
|
+5Vsb |
2.5A/0.0A | +5, -5% | 50mV | 12.5W |
|
Total Power |
500W | |||
|
Environment | ||||
|
Operating Temp. |
5℃ to 40℃ | |||
|
Storage Temp. |
-20℃ to 70℃ | |||
|
Operating Humidity |
5% to 85%, non-condensing | |||
|
Storage Humidity |
5% to 95%, non-condensing | |||
|
Protection | ||||
| DC Rail | Trigger Point/Range | |||
|
Over Voltage Protection |
Trippunkt +3.3V trip point | 4.5V max. | ||
| Trippunkt +5.0V trip point | 7.0V max. | |||
| Trippunkt +12.0V trip point | 15.6V max. | |||
|
Over Current Protection |
The power supply should provide OCP and should shutdown before 240VA of each output power (included +5V, +3.3V). The power supply should provide OCP when over current output of each output power (included +12V). | |||
|
Short Protection |
All output to GND | |||
