Xigmatek Cooler Heatpipe Direct Touch Achilles S1284C
[CAC-SXHH4-U03]

№: ++462   Manufacturer: Xigmatek

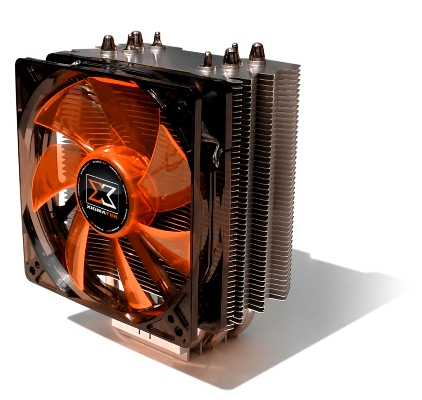

Achilles S1284C, a new generation H.D.T. cooler, once again proves that it is possible to do concurrently both good-looking and performance. Its H.D.T. technology and 4pcs Φ8 heat-pipe makes Achilles a remarkable performing and special fan design makes it to reach a silent level. With LED lights, transparent fan, Anti-vibration rubber, Push-pin/Clip for Intel & AMD, Achilles S1284 offers not only friendly, reliable, easy to install, but also powerful performance for users.

        PRODUCT  OVERVIEW

With anti-vibration rubber and Push-pin/Clip for Intel & AMD application design, Achilles S1284C provides users not only silent level but also easy and quick installation.

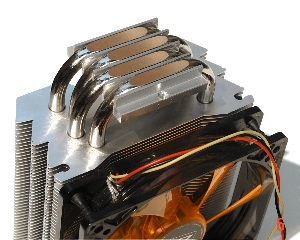

4pcs Φ8mm high performance U type heat-pipes.      H.D.T. (Heat-pipe direct touch) technology.      Transparent colorful housing and blade.      Nickel Heat-pipe.      4pcs white LED.      Anti-vibration rubber design.      Efficient PWM fan.      Light weight.      Easy installation.      LGA775 push-pin / AM2 & K8 tool-less clip.

SPECIFICATION Product Name    ‧ Achilles S1284C    Product Number    ‧ CAC-SXHH4-U03   Dimension    ‧120(W) x 60(H) x 159(D) mm    Heat Sink    ‧ Material    Aluminum Alloy   ‧ Heat-pipe   Φ8 x 4    Fan    ‧ Dimension   120(W) x 120(H) x 25(D) mm   ‧ Voltage Rating   12V    ‧ Speed   800~1500 R.P.M.   ‧ Bearing Type   Long Life Bearing    ‧ Air Flow    61.375 CFM   ‧ Air Pressure   1.516 mmH2O   ‧ Life Expectance   50,000 hrs   ‧ Noise Level   20.64 dBA   ‧ Available color   4 white LED   ‧ Connector   4 Pin with PWM   Weight    ‧ 660g (w/fan)   Thermal Resistance    ‧ 0.14 ℃/W   Application    ‧ All Intel Socket 775 CPU ‧ Core 2 Extreme / Quad / Duo ‧ Pentium Extreme Edition / D ‧ Celeron D ‧ All AMD Socket AM2 / 754 / 939 / 940 CPU ‧ Athlon 64 / FX / X2 / Opteron / Sempron
