| UTGARD - THE ONE AND ONLY GIANT |
"UTGARD" - Beyond the world of mankind and Gods, home of Giants and Trolls. DOMINATED by LOKI, the God of Giants. Combining design and features such as coated SECC and steel mesh are spotlighting your chassis when your system is built. Furthermore this chassis is supplied with 2 x 120mm pre installed fans on the front and the rear, one top fan with the size of 170 mm, but another 6 fans can be mounted in different areas for best possible airflow. 9 x 5.25" bays will be able to house all your optical drives, an external 3,5" device adapter and a 3 to 4 HDD Device. Tool free design and a "gorgeous" outlook are only a few points why this chassis is a "must" not only for enthusiast but also for pc beginners. |
Overview
 |
Classic chassis exterior contains pure black coating interior even with each screw. It is more elegant and fancy design than any other mid-tower chassis with ATX, Micro-ATX, ITX form factors. |
| |

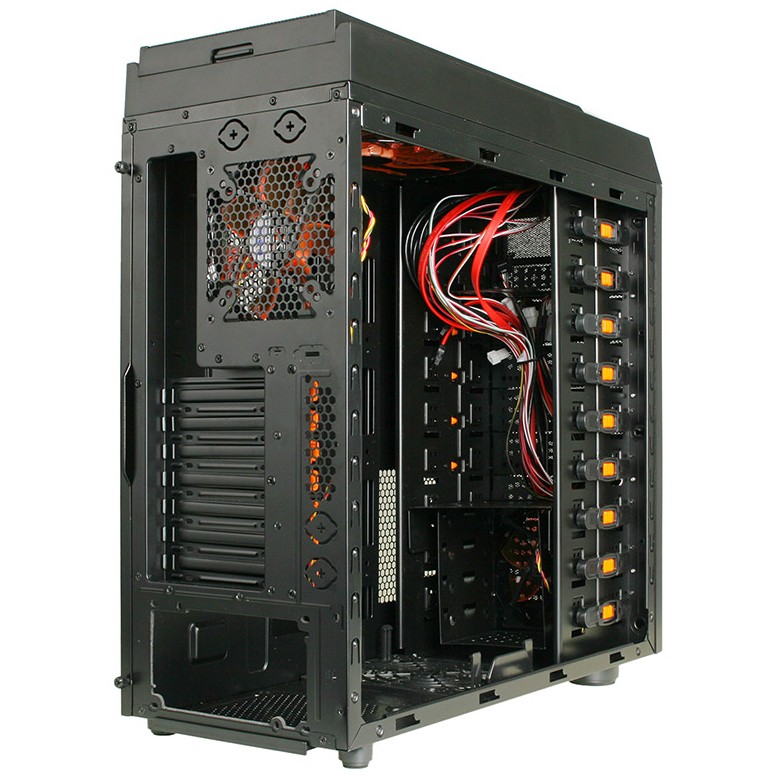

Utgard was designed by gaming and cooling thinking within tool-free hard drives and add-on card installation, easy installation CPU cooler back plate window, four pipe holes for water cooling system and seven cooling fan space at most. |
| |
0.7mm SECC chassis body, both side 5.25" tool-less holders, anti-vibration rubber on PSU space, and HDD tray with rubber screw holes are all the user-friendly and system-stable concepts. |
Features
| |

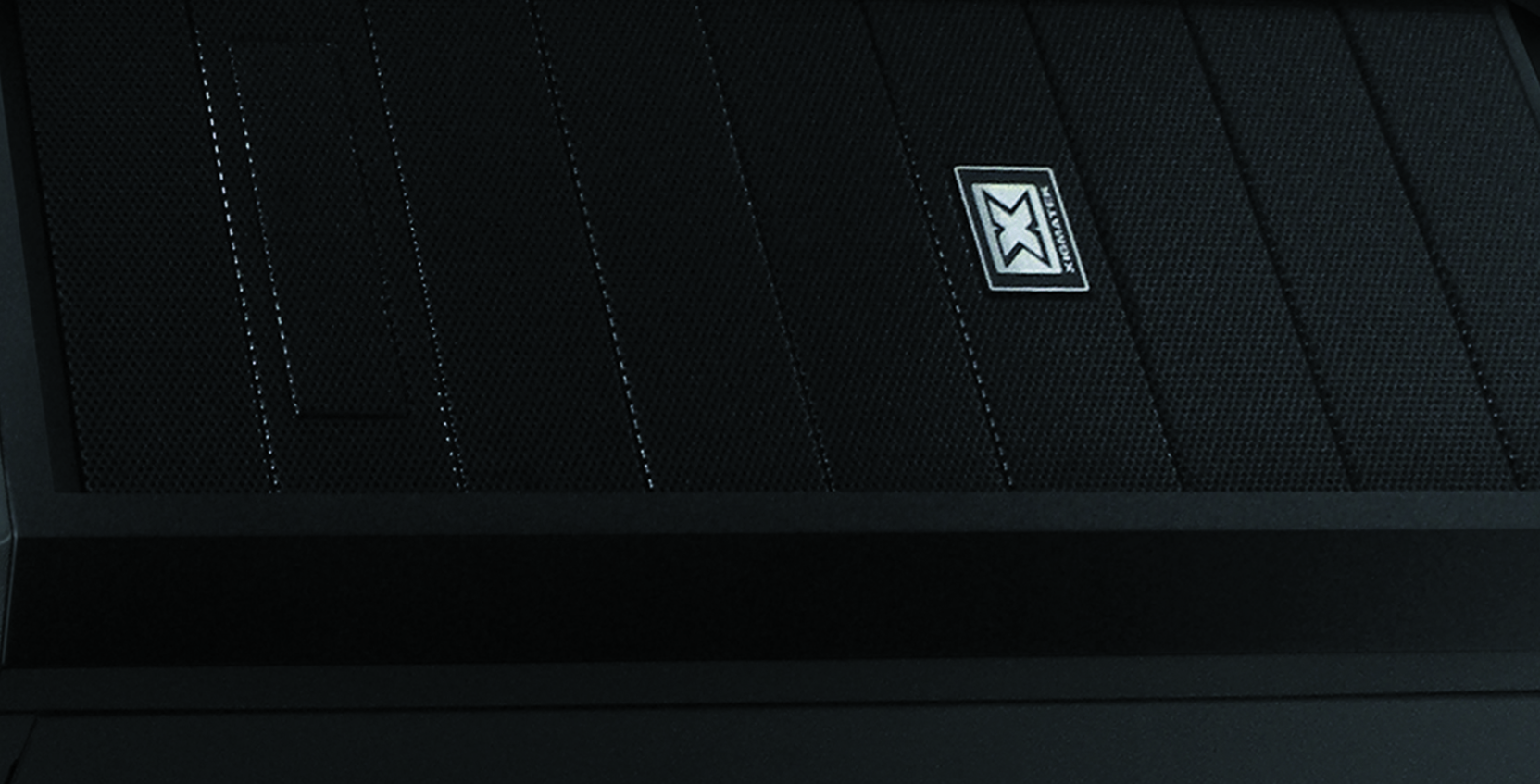

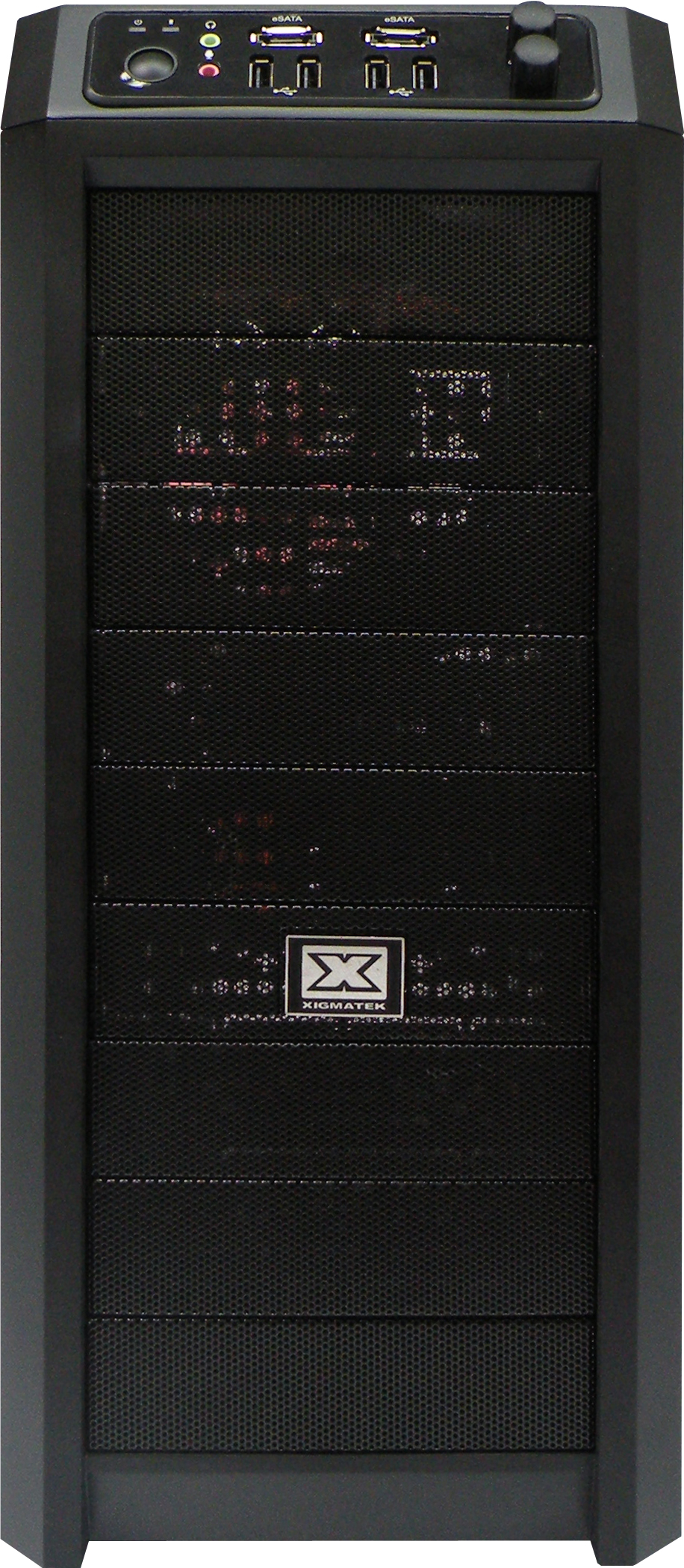

All mesh design on front panel. |
| |

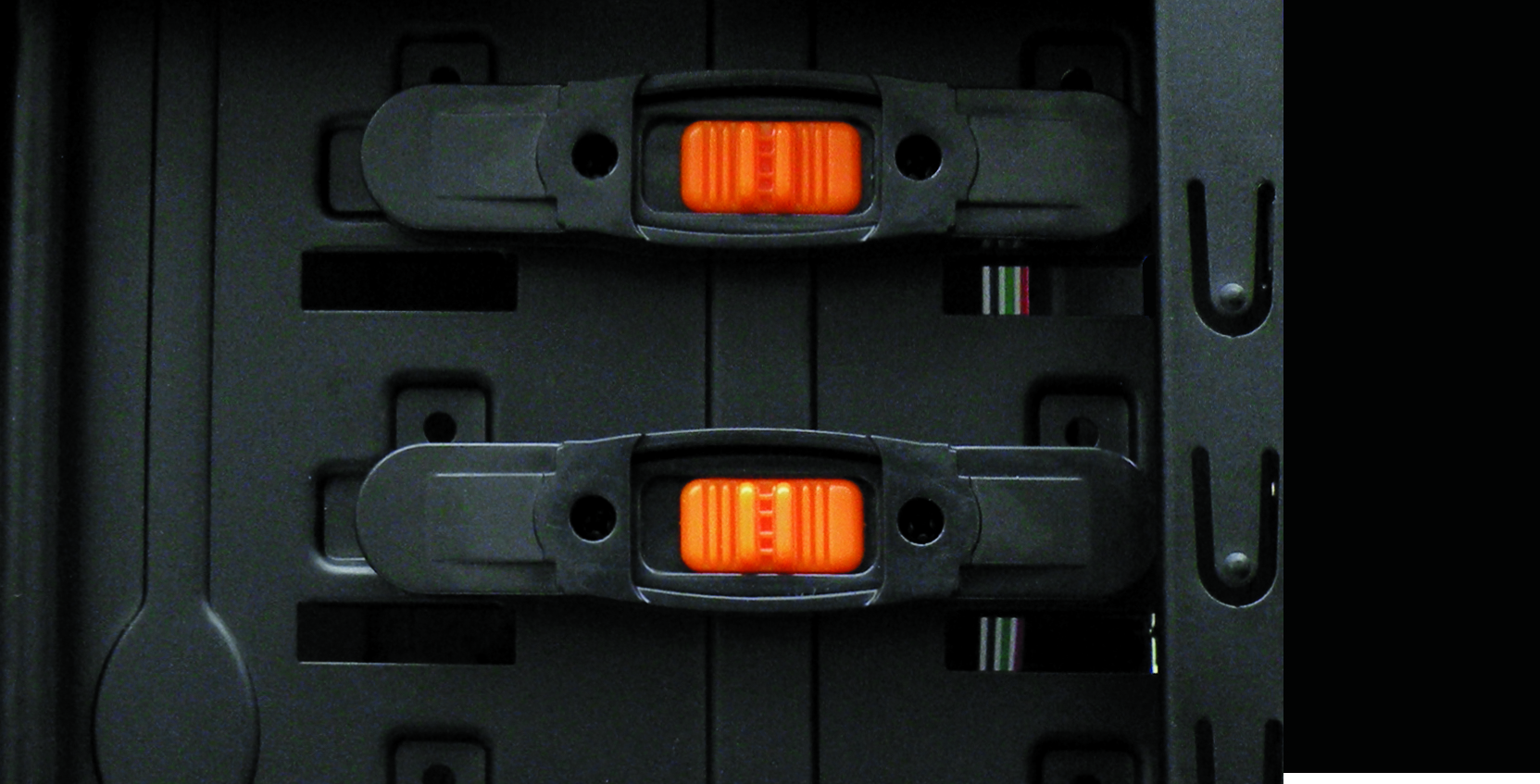

Screw-less tooling for 5.25" bay installation. |
| |

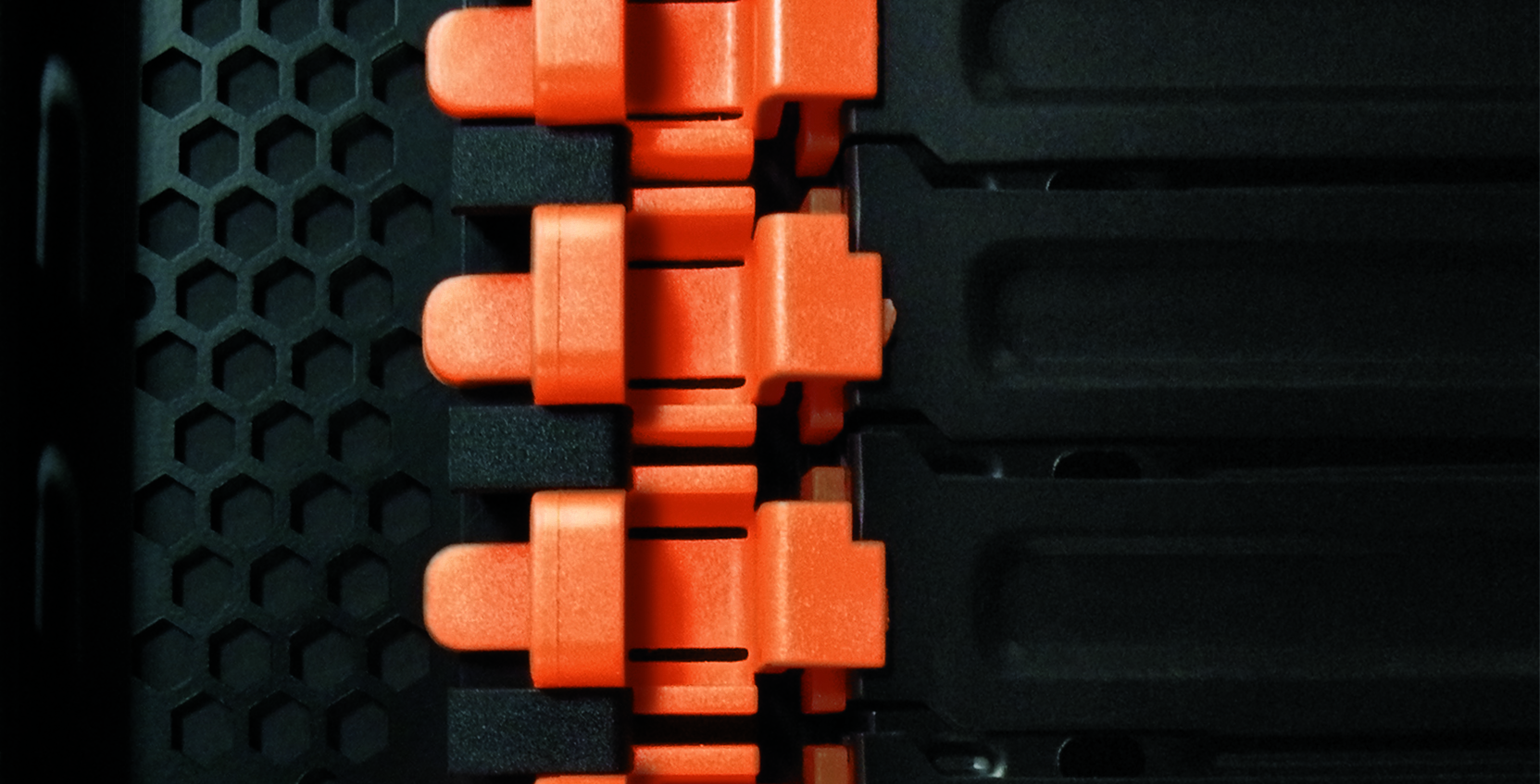

Screw-less tooling for expansion slot installation. |
| |

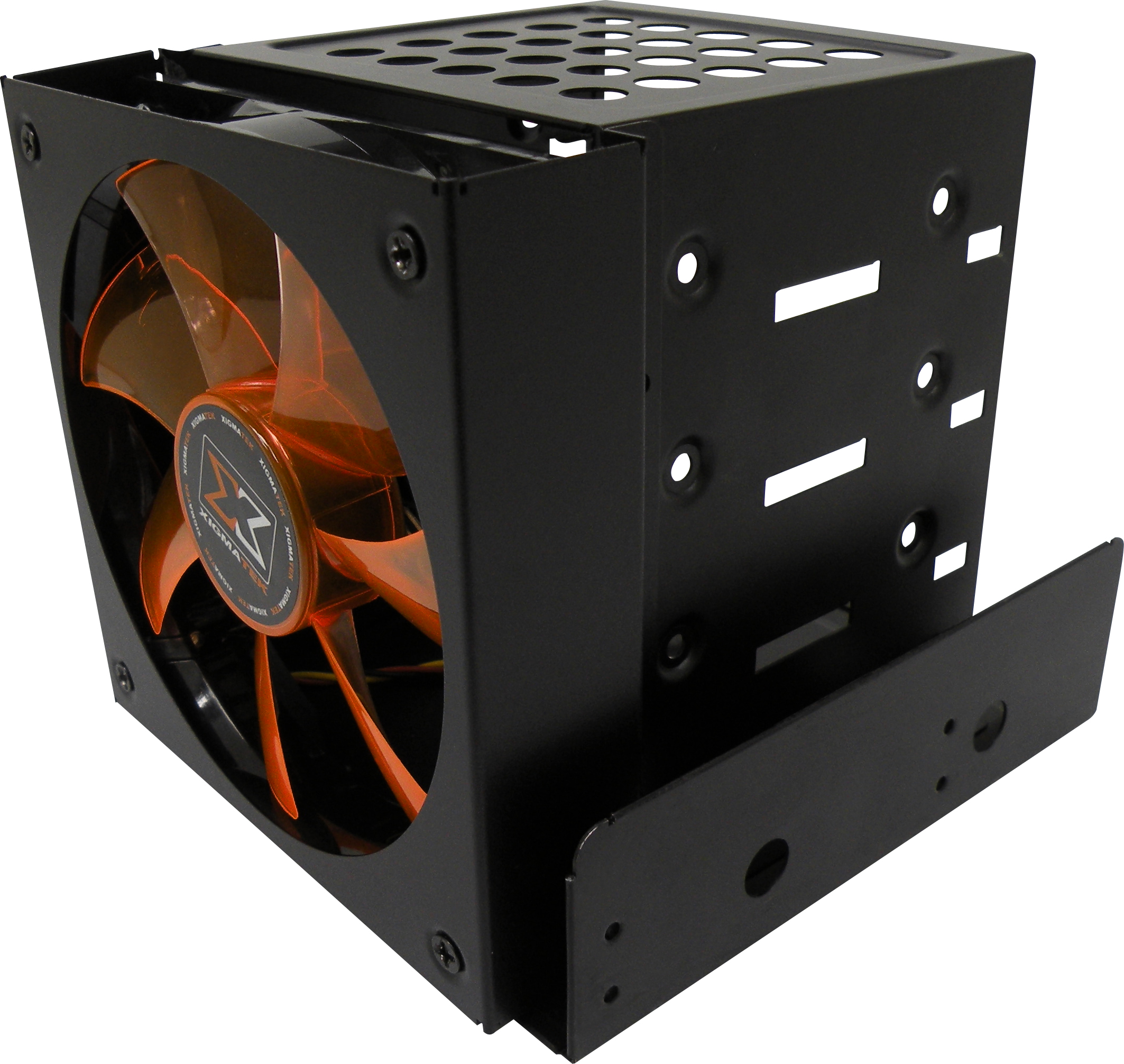

Four 3.5" HDD in three 5.25" bay adapter. |
| |
Preinstalled 170mm top orange fan with white LED. |
| |
Preinstalled 120mm front and rear orange fans with white LED. |
| |
RPM speed control knobs for six fans. |
| |

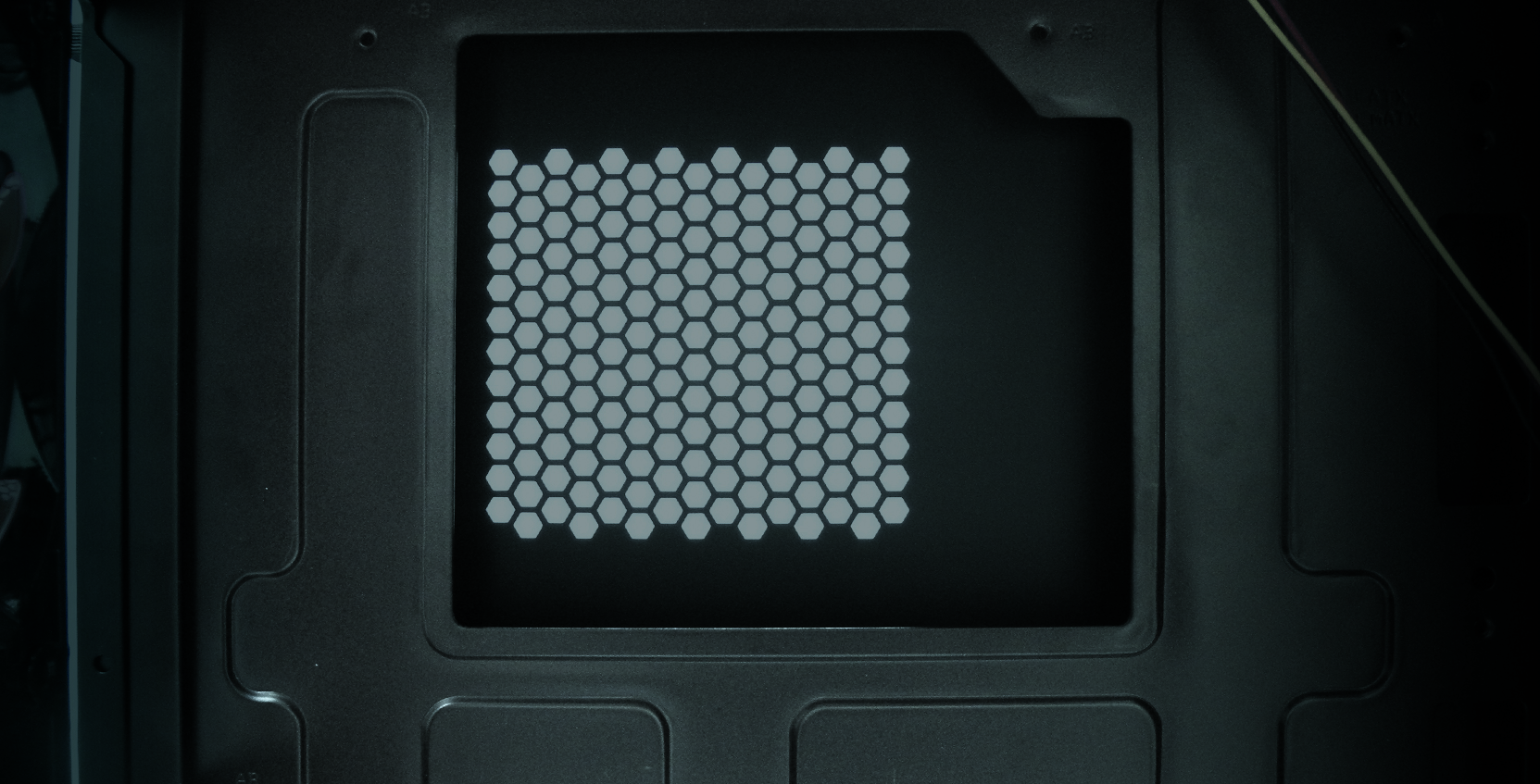

Back window for easy CPU cooler back plate. |
| |

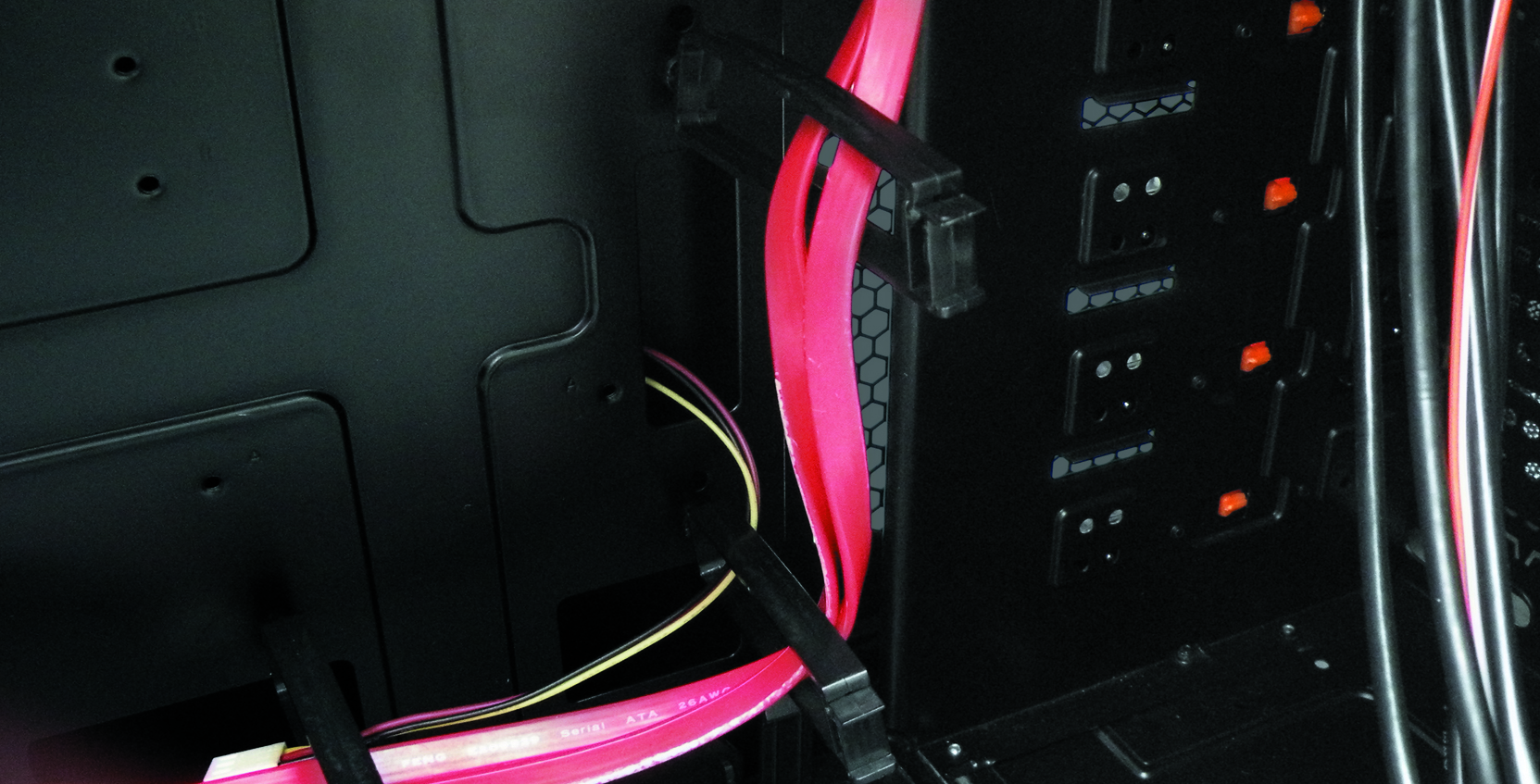

Back holes and clips for cable management. |
| |

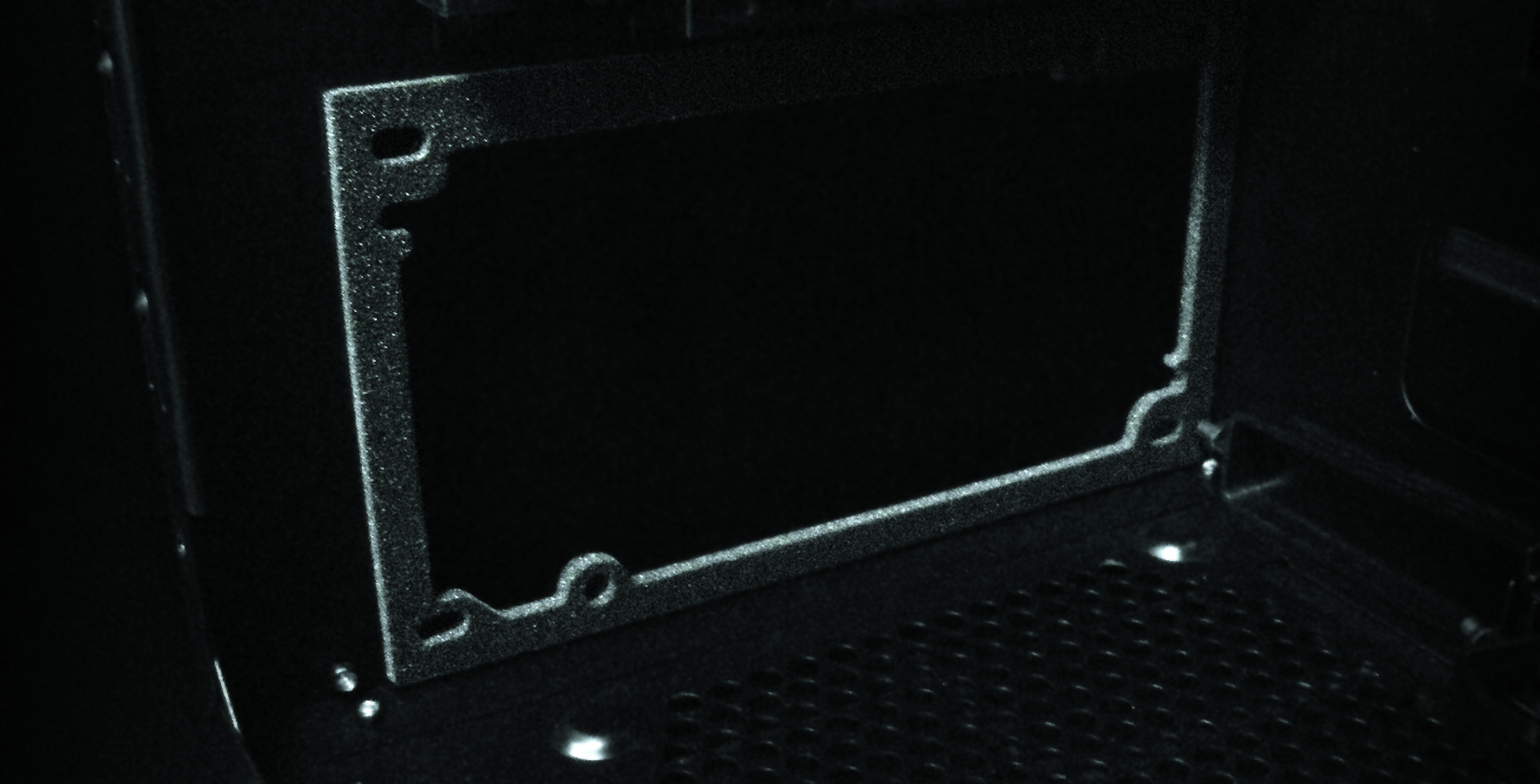

Anti-vibration rubber for PSU. |
| |
Dust filter for PSU cooling fan. |
| |
Tool-free holder for bottom 14cm fan. |
Specification
| |
| Product Name |
UTGARD |
|
Product Number |
CPC-T90DB-U01~U03 / CPC-T90DB-U51~U53 |
|
Dimension |
Utgard-Original / Window: 207(W) x 515(H) x 490(D) mm (8.1*20.3*19.3 inches)
Utgard-Mesh: 222(W) x 515(H) x 490(D) mm (8.7*20.3*19.3 inches) |
|
Drive Bay |
5.25" External x 9 with tool-free holders.
(Including one external 3.5" device adapter and one 4 in 3 3.5" HDD adapter.) |
|
Expansion Slot |
7 slots (tool-free) Available for max. 295mm length VGA card |
|
Motherboard Support |
ATX, Micro ATX (with easy black plant installation window) |
|
Power Supply
|
Standard P/S2 ATX/EPS power supply unit
1. Intake airflow hole with dust filter.
2. Available for face upward and downward installation.
3. Within anti-vibration rubber. |
|
Cooling System |
Air-cooling
Front Fan: Pre-installed 120mm white LED with orange blades x 1
(on 4 in 3 3.5" HDD adapter)
(80/90/120mm fan is available on front board)
Rear Fan: Pre-installed 120mm white LED with orange blades x 1
(80/90mm fan is available)
Side Fan: Utgard-Original: 80/90/120/140mm fan *1 (optional)
120/140mm fan *1 (optional)
Utgard-Mesh: 120mm fan *4 (optional)
200/220mm fan *1 (optional)
Utgard-Window: Not available.
Bottom Fan: 120/140mm fan x 1 (optional, with 14cm tool-free holder)
Top Fan: Pre-installed 170mm white LED with orange blades x 1
(120/140mm fan x 2 are available)
Fan Speed Control:
Six fan speeds are adjustable synchronously by two knobs on top panel. |
Water-cooling
Water pipe holes x 4 (with rubber cover)
Available for 12cm*2 or 14cm*2 radiator (thickness under 46mm) |
|
I/O Panel |
Top Panel: Power On/Off switch, USB2.0 x 4, e-SATA x 2,
Audio in/out x 1 (HD Audio), two knobs of fan controller. | | |
 |
 |
| All mesh design on front panel. | | |
|
 |
| Screw-less tooling for 5.25" bay installation. | | |
| |
|
 |
| Screw-less tooling for expansion slot installation. | | |
 |
| Four 3.5" HDD in three 5.25" bay adapter. | | |
| |
|
 |
| Preinstalled 170mm top orange fan with white LED. | | |
 |
| Preinstalled 120mm front and rear orange fans with white LED. | | |
| |
|
 |
| RPM speed control knobs for six fans. | | |
 |
| Back window for easy CPU cooler back plate. | | |
| |
|
 |
| Back holes and clips for cable management. | | |
 |
| Anti-vibration rubber for PSU. | | |
| |
|
 |
| Dust filter for PSU cooling fan. | | |
 |
| Tool-free holder for bottom 14cm fan. | | |
| |
|
 |
| Four water pipe holes for future liquid cooling system. | | |
|
| |
|
|
|
|
| |
|
|
|
|
| |
|
 |

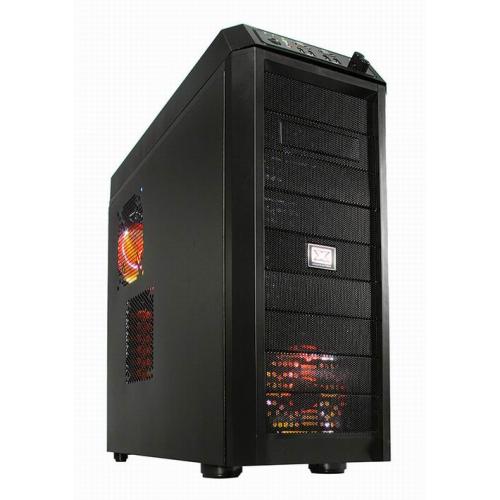

Angle View
CPC-T90DB-U01 [Without PSU]
CPC-T90DB-U51 [With 500W PSU] | | |
|
 |
Angle View
CPC-T90DB-U02 [Without PSU]
CPC-T90DB-U52 [With 500W PSU] | | |
|
 |
Angle View
CPC-T90DB-U03 [Without PSU]
CPC-T90DB-U53 [With 500W PSU] | | |
| |
|
|
|
|
 |
Left Side Cover-Original
CPC-T90DB-U01 [Without PSU]
CPC-T90DB-U51 [With 500W PSU] | | |
|
 |
Left Side Cover-Window
CPC-T90DB-U02 [Without PSU]
CPC-T90DB-U52 [With 500W PSU] | | |
|
 |

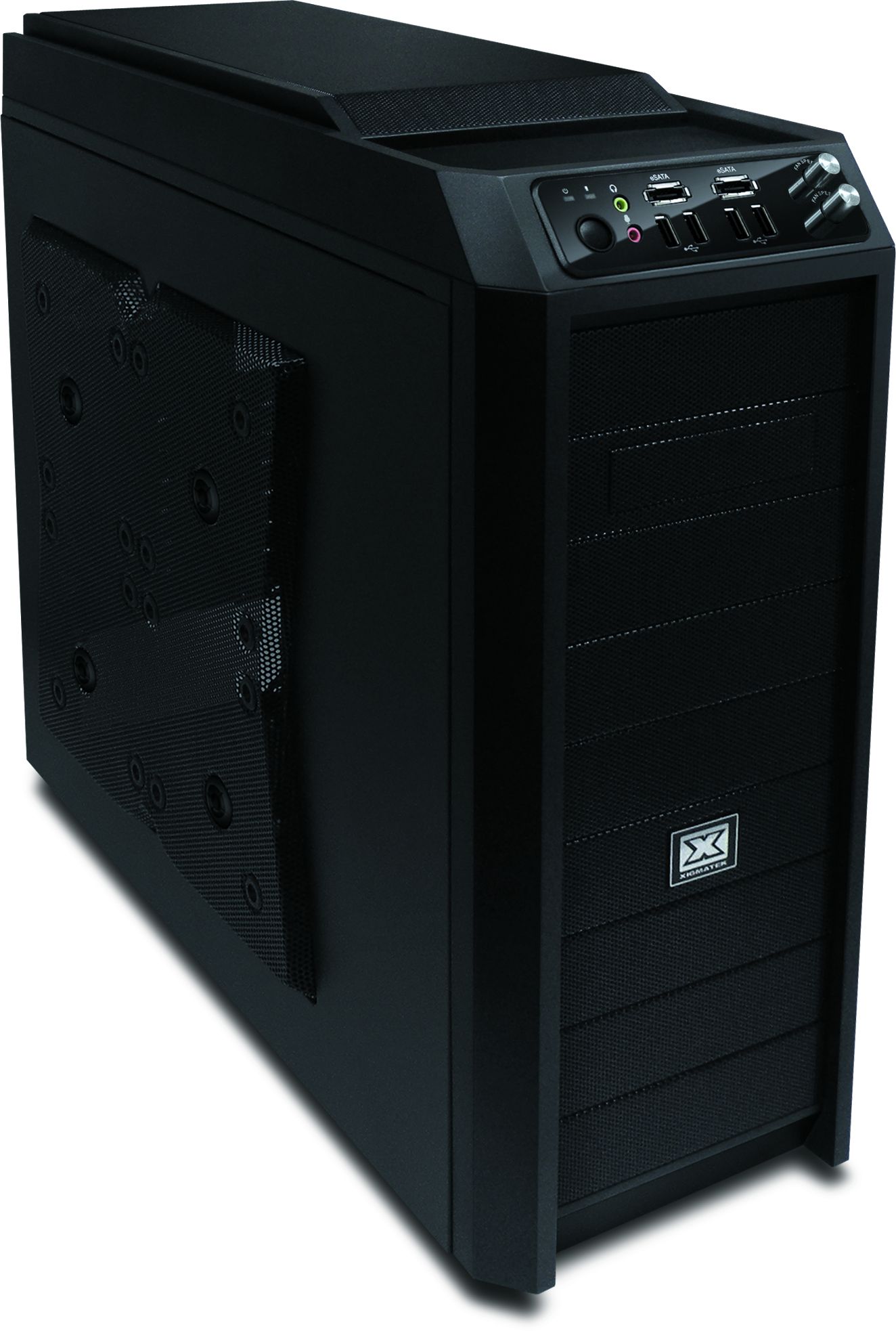

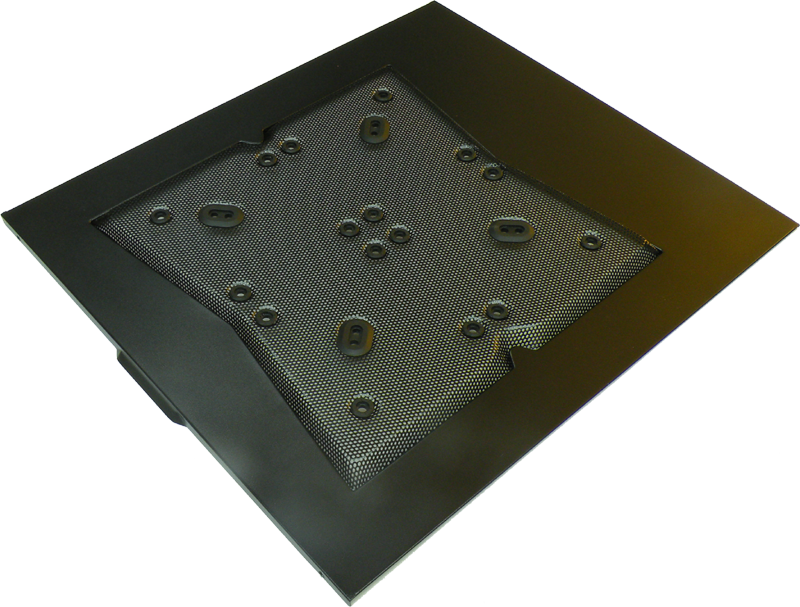

Left Side Cover-Mesh
CPC-T90DB-U03 [Without PSU]
CPC-T90DB-U53 [With 500W PSU] | | |
| |
|
|
|
| | |
