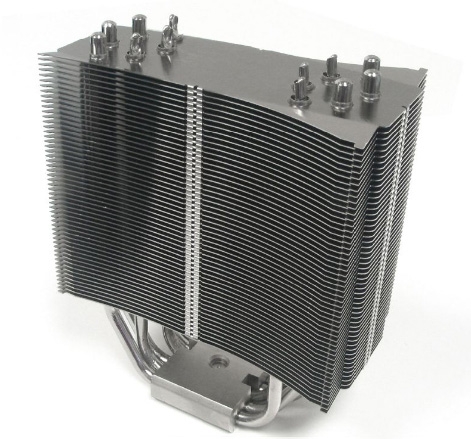

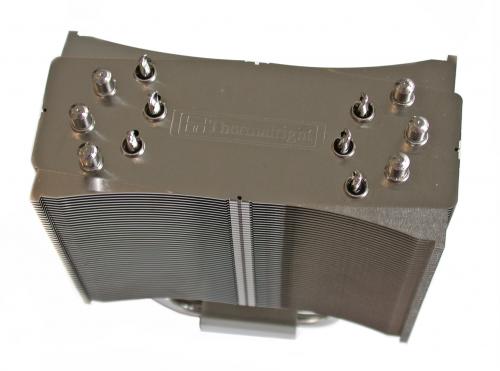

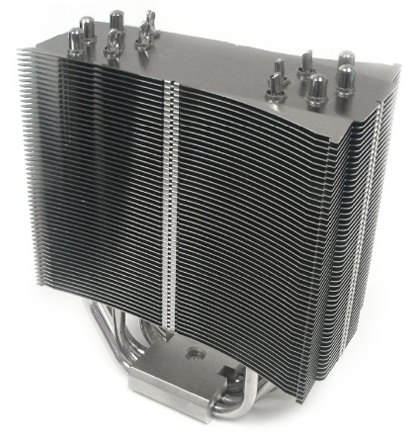

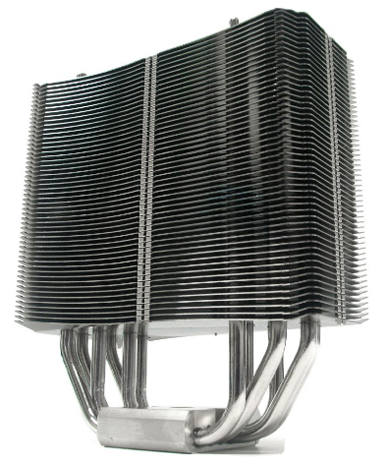

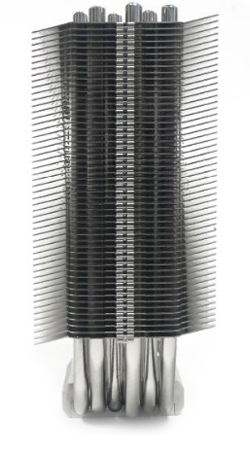

Thermalright Ultra-120 eXtreme
[247]

№: ++247   Manufacturer: Thermalright

Features:

Core 2 Duo and Core 2 Extreme Ready

AM2 Ready

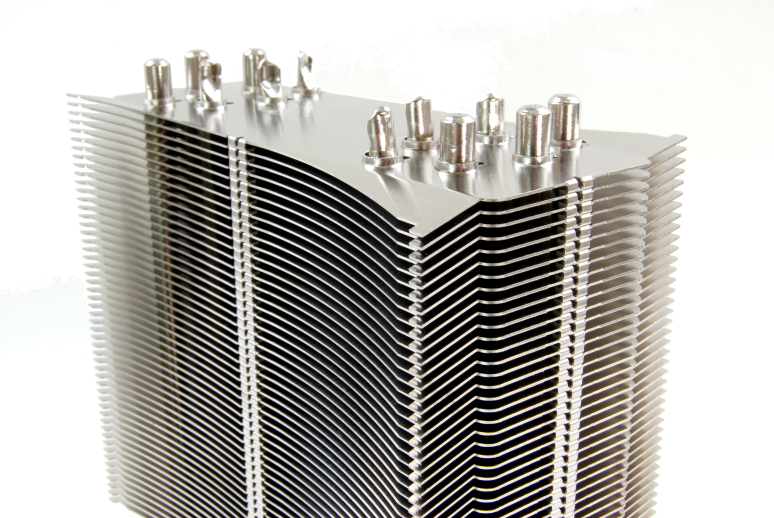

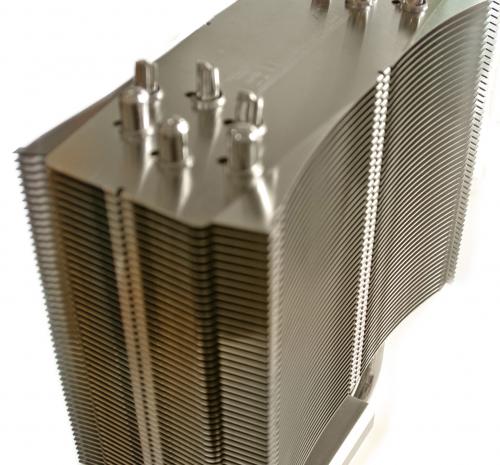

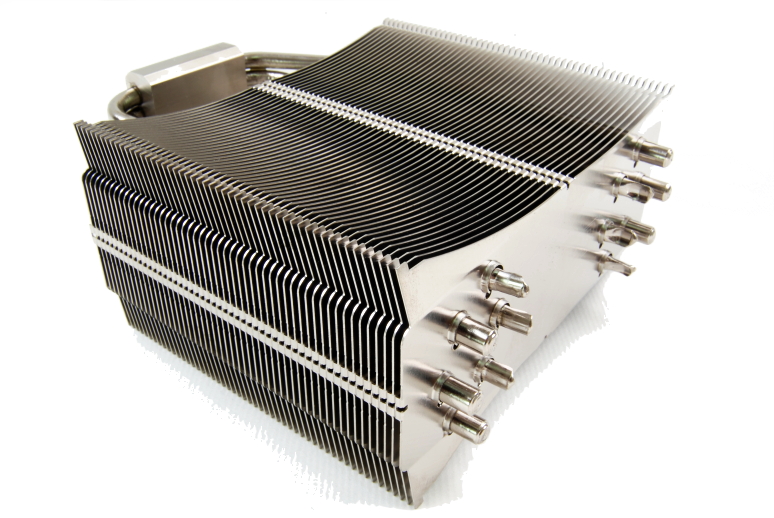

• Quiet and powerful cooling due to multiple heat pipes and large aluminum fin area
• Proprietary bent winglet design to minimize airflow resistance

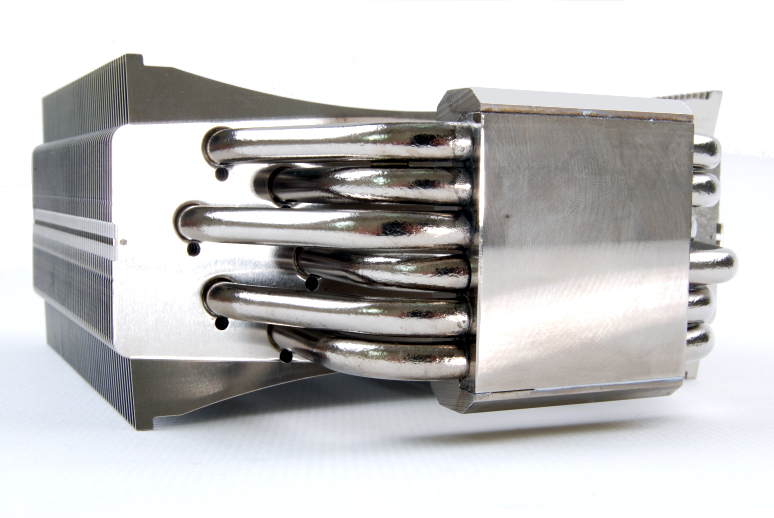

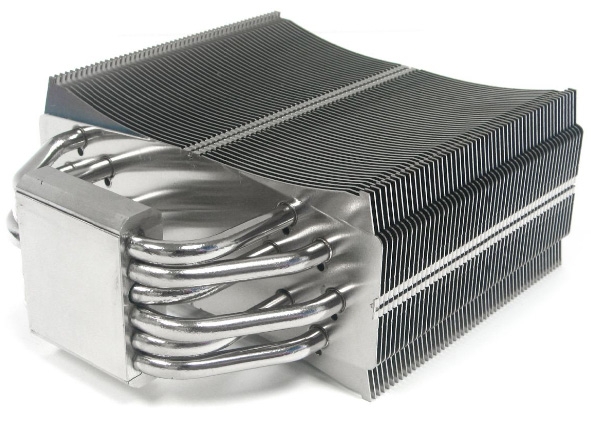

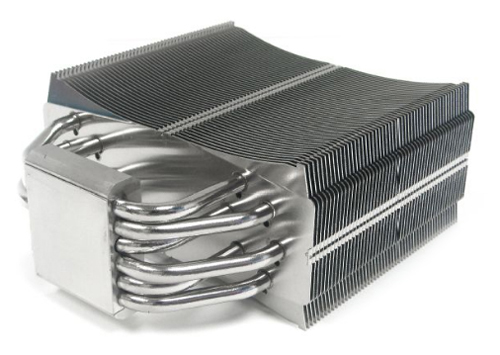

• Heat pipes soldered to base (nickel plated)and fins for optimum heat transfer
• Include both bolt-thru-board retention brackets for Intel and AMD**



Technical Spec.:

Dimension:

L63.44 x W132 x H160.5 mm (heatsink only)

Weight:

790g (heatsink only)

Recommended Fan

All 120mm Fan

Compatibility:

INTEL: All Intel LGA775 processors
AMD: All AMD Socket AM2 Processors

All AMD Socket 753/939/940 processors (Retention kit sold separately)

Motherboard compatibility List

(Both Ultra-120A and Ultra-120 eXtreme do not include a backplate for AM2 systems. If you have motherboard manufactured by either Asrock or Gigabyte that utilizes the push pin method, you will need to make a separate purchase for an AM2 metal backplate.)

* Specs subject to change without notice
