Model Name:
Gentle Typhoon 120 mm Fan 1,150 rpm

Model-No.:
D1225C12B3AP-13 (1,150 rpm)

Manufacturer:
Nidec Servo Corporation (Japan)

Weight:
200 g

Dimensions:
119 x 119 x 25 mm

Technical Data:
1,150 rpm: 0.034 A  - 16 dBA - 63 m³/h

Bearing Type:
Double Ball Bearing

MTBF:
100,000 h / 35°C or 60,000 h / 60°C

Accessory:
4-pin Molex Adapter, 4x Screws

High Performance:

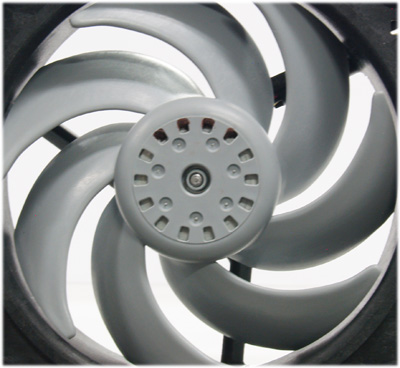

The GentleTyphoon achieves high airflow volume and low noise with the newly designed impeller, enabling silent cooling of the latest devices which run very hot.

Silent Operation:
The GentleTyphoon has a different type of tone. The fan propeller is designed to reduce the disturbing frequency fan noise to human ears.

Innovative Technology:
The newly designed motor and motor support mechanism of the GentleTyphoon uses a double vibration reduction structure. The new support mechanism uses coil dampers to greatly reduce vibration.

For further information regarding Nidec Servo Corporation, please visit their website at: www.nidec-servo.com/en/index.html
