Specifications:

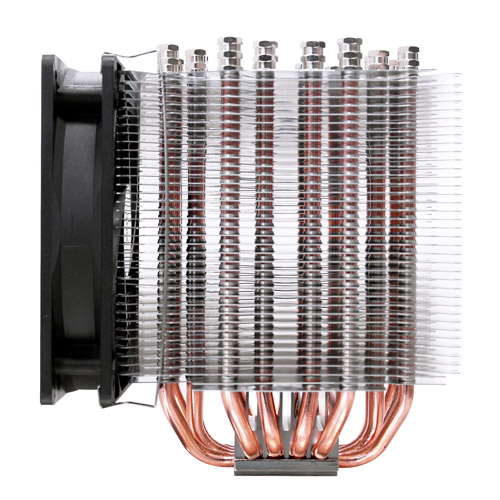

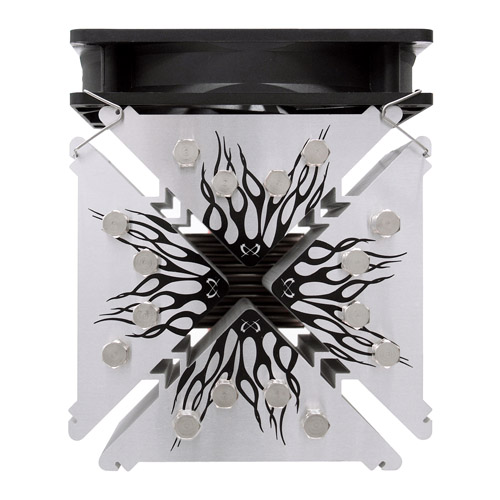

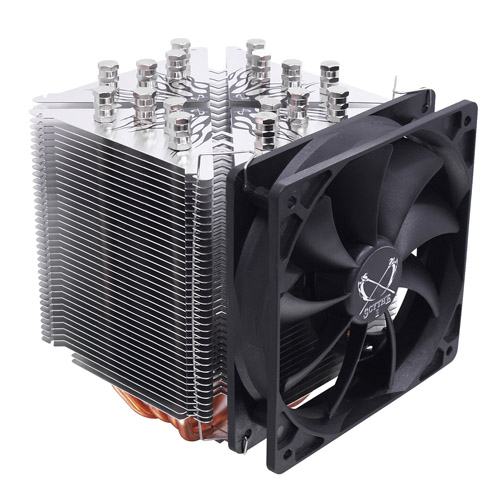

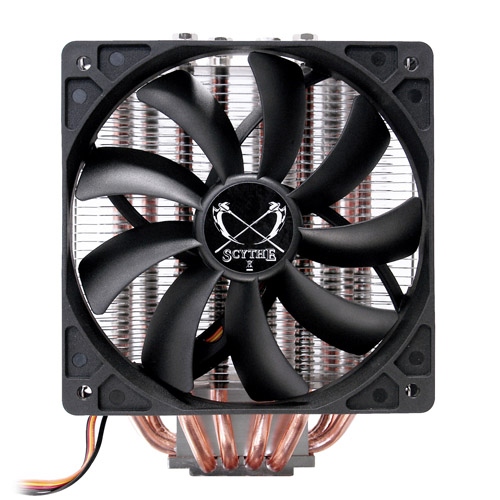

The third edition of the Ninja CPU cooler comes along with a revised high-performance design. Ninja 3 CPU cooler has eight u-shaped heat pipes constructed and the optimized fin structure named as M.A.P.S. (Multiple Airflow Pass-Through Structure). The airflow generated by the Scythe Slip Stream 120 PWM Adjustable fan can effectively cool the heat-sink. User can choose the fully automatic PWM feature fan speed control or alternatively adjust the PWM band range for tuning purposes. Several features make this cooler the perfect solution for silent users and overclockers! For LGA2011 users attachment screws are included, for other supported sockets F.M.S.B.4 Back-Plate system provides a safe cooler mounting, guaranteed!

Specifications

Model Name:
Ninja 3 Rev. B

Model Number:
SCNJ-3100

Compatibility:

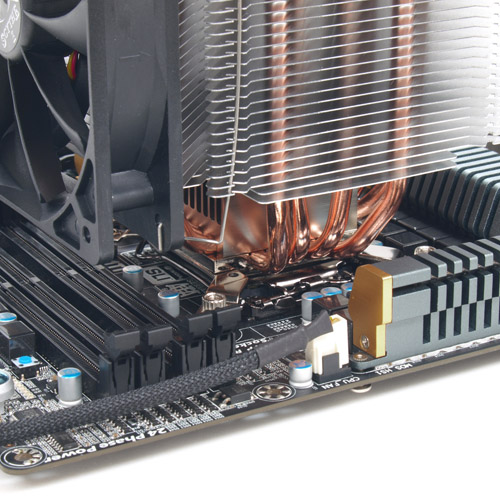

Intel®:
Sockel T / LGA775
Sockel LGA1155
Sockel LGA1156
Sockel LGA1366
Sockel LGA2011

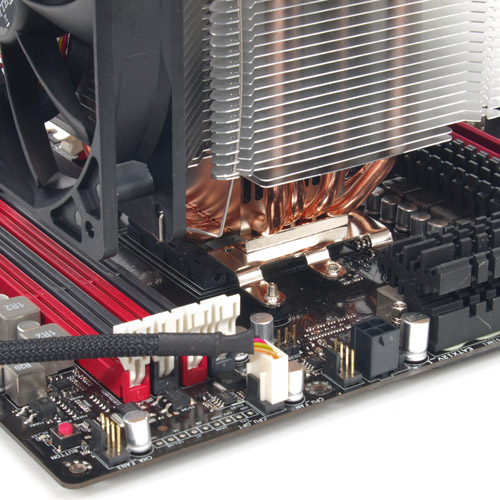

AMD®:
Socket 754
Socket 939
Socket AM2
Socket AM2+
Socket AM3
Socket AM3+
Socket FM1
Socket 940

Dimensions:
120 x 120 x 160 mm / 4.72 x 4.72 x 6.30 in

Weight Including Fan:
1080 g / 38.1 oz.

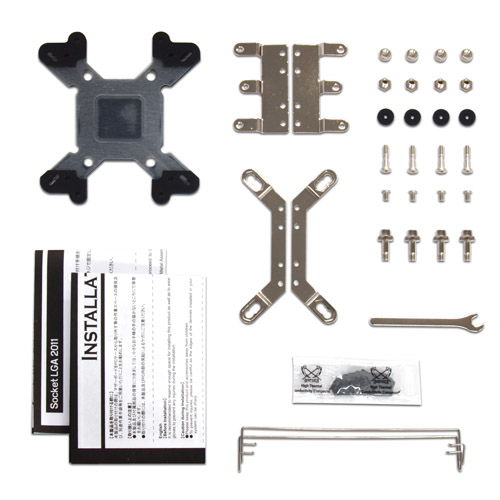

Accessory:
Thermal Grease, User Manual

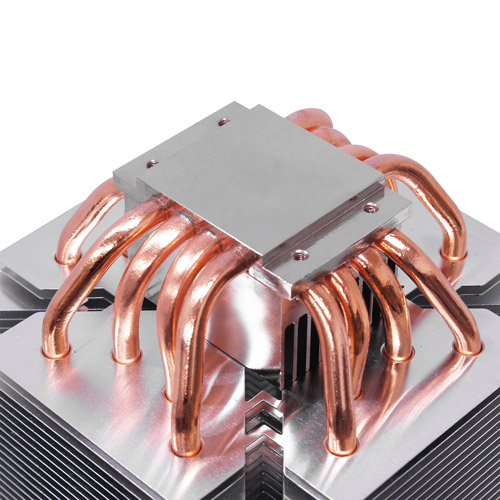

Material of Base Plate:
Nickel-plated copper (more information)

Fan-Specifications

Model Name:
Slip Stream 120 PWM Adjustable

Model No.:
SY1225SL12HPVC

Fan Dimensions:
120 x 120 x 25 mm / 4.72 x 4.72 x 0.98 in

Fan Speed Max. Band:
740 (±25%) - 1,900 rpm (±10%)
Fan Speed Min. Band:
470 (±30%) - 1,340 rpm (±10%)

Noise Level:
Max. Band 9.8 - 37.0 dBA
Min. Band: 7.05 - 27.3 dBA

Air Flow:
Max. Band 37.15 - 110.31 CFM = 63 - 187 m³/h
Min. Band: 23.0 - 76.53 CFM = 39 - 130 m³/h

Input Power:
7,19 W

Input Current:
0,60 A

Voltage Range:
12 V

Features

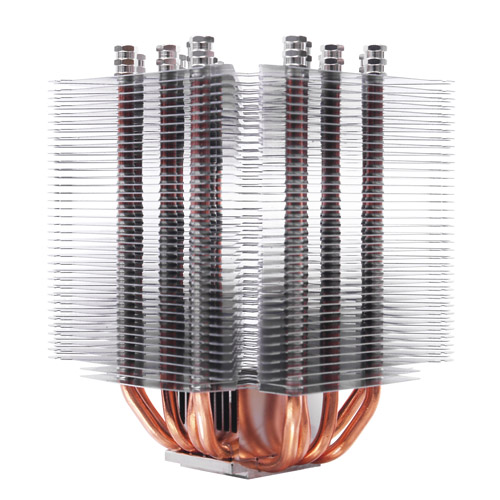

M.A.P.S. (Multiple Airflow Pass-Through Structure)
The developed M.A.P.S. (Multiple Airflow pass-through structure) is a completely new fin structure, where the airflow generated by the Scythe Slip Stream 120 PWM Adjustable fan. Ninja 3 fanless performance could be improved up to 7% compare to the former model by using the M.A.P.S. in combination with eight heatpipe high-performance design.

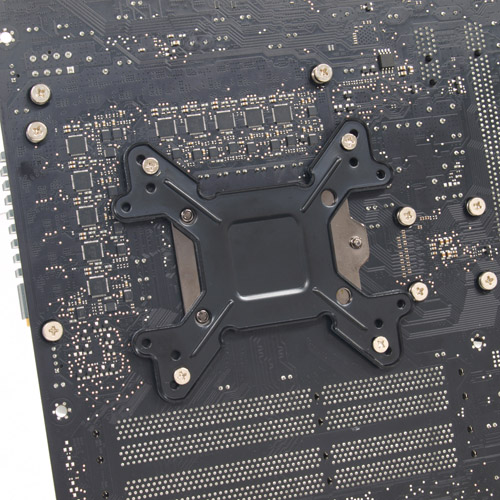

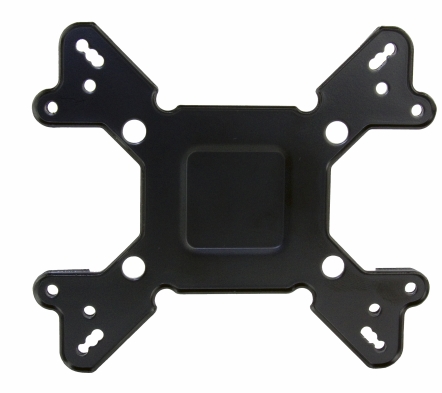

F.M.S.B.4 (Flip Mount Super Back-Plate 4)
The 4th generation version of F.M.S.B (Flip Mount Super Back-Plate) provides more versatility and higher compatibility. The light, slim structure with its' many notches makes it possible for the user to enjoy almost unlimited compatibility with common AMD and Intel Motherboards.

Slip Stream 120 PWM Adjustable
Equipped with Scythe original Slip Stream 120mm PWM Adjustable fan, it allows a user to choose the fully automatic PWM feature fan speed control or alternatively adjust the PWM band range to fulfill demands from silent to high performance users!

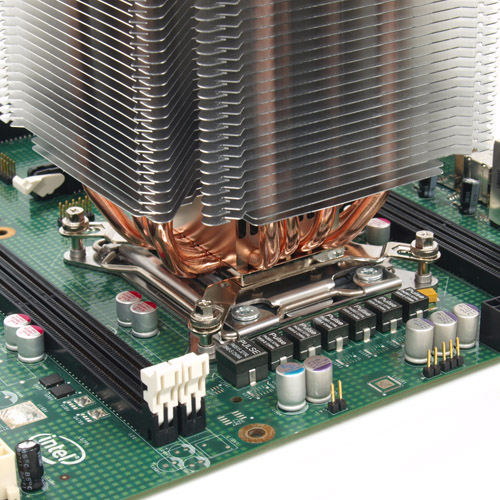

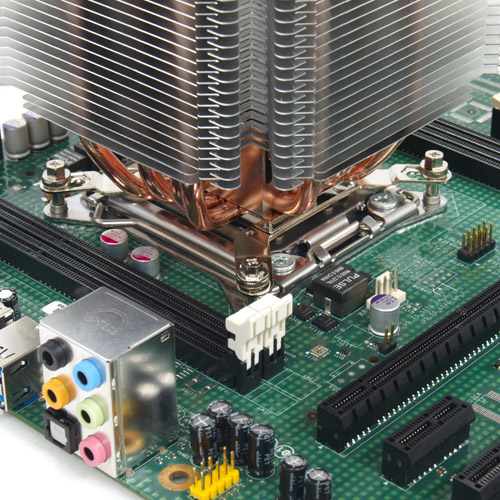

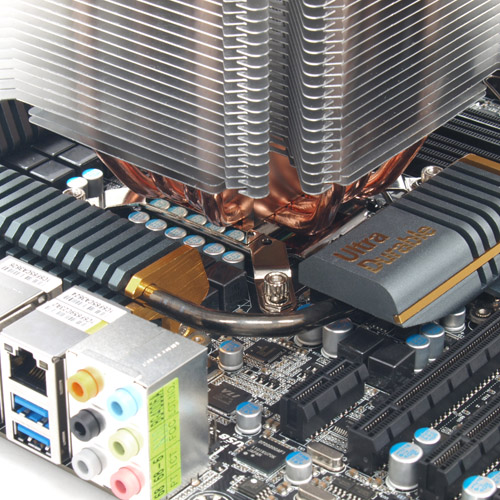

Compatibility with LGA2011
Revision B of Ninja 3 is compatible with Intel LGA2011 sockets (socket R). Additional mounting screws are provided.
