Noctua CPU Cooler NH-D14 SE2011
[NH-D14-SE2011]
№: ++1177 Manufacturer: Noctua

€71 06

Notify me of updates to

available: no
This product is not available
71.07 EUR

Specifications:

Having received more than 250 awards and recommendations from the international press, Noctua's NH-D14 has become a benchmark in premium quality quiet cooling. The SE2011 version is a special edition for Intel's Core i7-39xx/38xx (Sandy Bridge-E) high-end platform and comes equipped with the new SecuFirm2™ mounting system for LGA2011. Combined with the exquisite NF-P12/NF-P14 dual PWM fan configuration and topped off with Noctua's renowned NT-H1 thermal compound, the NH-D14 SE2011 is an elite choice for an elite platform.

Specifications

Socket compatibility		Intel LGA2011



Height (without fan)		160 mm



Width (without fan)		140 mm



Depth (without fan)		130 mm



Height (with fan)		160 mm



Width (with fan)		140 mm



Depth (with fan)		158 mm



Weight (without fan)		900 g



Weight (with fan)		1070/1240* g



Material		Copper (base and heat-pipes), aluminium (cooling fins), soldered joints & nickel plating



Fan compatibility		140x140x25 & 120x120x25mm

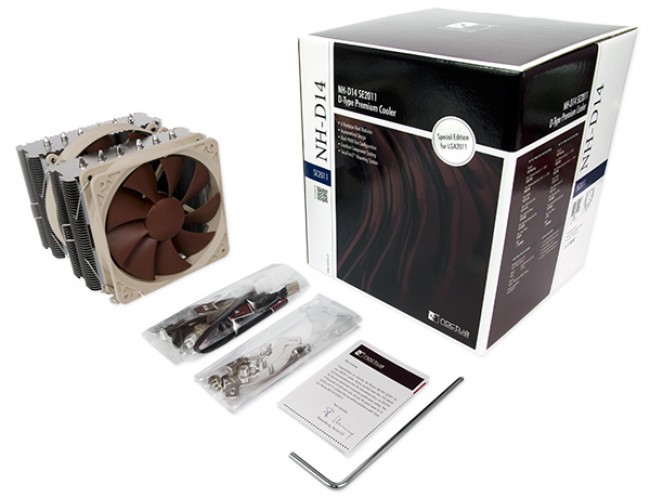

Scope of Delivery		1x NF-P14 PWM premium fan 1x NF-P12 PWM premium fan 2x Low-Noise Adaptor (L.N.A.) Y-Split Cable 4x Vibration-Compensators (for using NF-P12 as case fan) 4x Fan screws (for using NF-P12 as case fan) NT-H1 high-grade thermal compound SecuFirm2™ Mounting Kit for LGA2011 Noctua Metal Case-Badge



Warranty		6 Years



Fan specifications



Model		Noctua NF-P14 PWM & Noctua NF-P12 PWM



Bearing		SSO-Bearing



Max. Rotational Speed (+/- 10%)		1200 / 1300 RPM



Max. Rotational Speed with L.N.A. (+/- 10%)		900 / 900 RPM



Min. Rotational Speed (PWM)		300 / 300 RPM



Max. Airflow		110,3 / 92,3 m³/h



Max. Airflow with L.N.A.		83,7 / 63,4 m³/h



Max. Acoustical Noise		19,6 / 19,8 dB(A)



Max. Acoustical Noise with L.N.A.		13,2 / 12,6 dB(A)



Input Power		0,96 / 0,6 W



Voltage Range		12 V



MTBF		> 150.000 h

	Award-winning NH-D14 cooler Tens of thousands of enthusiast users all over the world swear by the NH-D14’s quality and performance. Recommended by more than 250 international hardware websites and magazines, it is renowned to be one of the best high end coolers on the market.

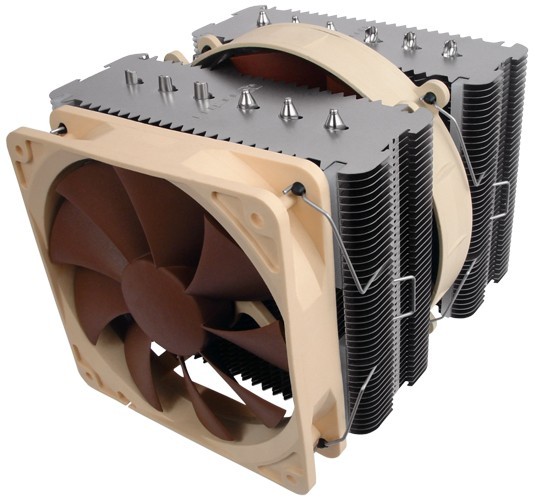

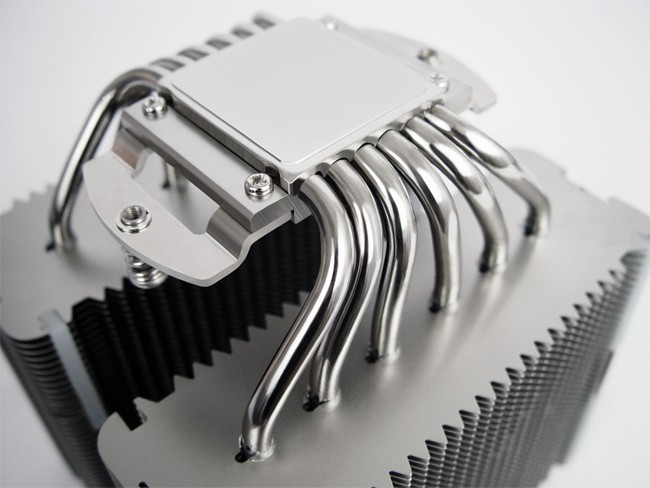

	6 heatpipe dual radiator design Providing more surface area, better heat-distribution and superior airflow efficiency than conventional tower style heatsinks, the NH-D14’s six heatpipe dual radiator design was developed to provide ultimate quiet cooling performance in dual fan mode.

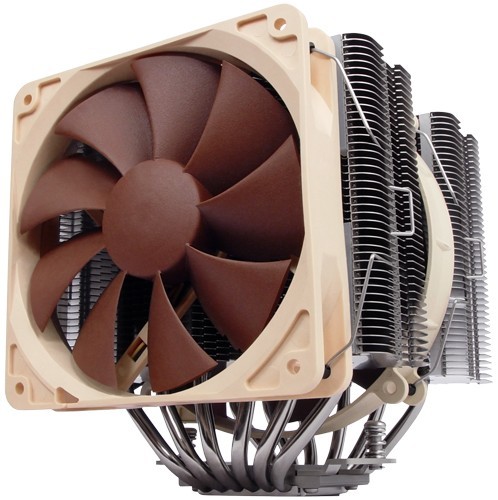

	Dual NF-P14/NF-P12 PWM fan setup The NH-D14 sports a premium quality dual PWM fan setup consisting of Noctua’s award-winning NF-P12 (120mm) and NF-P14 (140mm) fans, both of which feature Vortex-Control Notches, SCD technology and SSO-Bearings in order to achieve a perfect balance of performance and quietness.
	Custom designed PWM IC with SCD Supporting fully automatic PWM speed control, the NH-D14 SE2011’s NF-P12 and NF-P14 fans use Noctua’s novel, custom designed NE-FD1 PWM IC that integrates Smooth Commutation Drive (SCD) technology. By providing smoother torque impulses, SCD suppresses PWM switching noises and thus make the fans quieter at lower speeds.
	Excellent component cooling Hanging out at the bottom of the fin-stacks, the NF-P14 fan doesn’t only contribute to the NH-D14’s superb CPU cooling capabilities but also provides massive airflow over surrounding motherboard components and heatsinks, thus ensuring excellent component cooling performance.
	SecuFirm2™ mounting system for LGA2011 Noctua’s enthusiast grade SecuFirm2™ systems meet the highest demands in safety, contact pressure and ease-of-use. Tailor-made for LGA2011, the new NM-I2011 mounting brings the trusted SecuFirm2™ quality to Intel’s new Core i7-39xx/38xx platform.
	NT-H1 thermal compound Noctua's much-acclaimed NT-H1 is a well proven pro-grade TIM solution that provides minimum thermal resistance, excellent ease-of-use and outstanding reliability. Reviews (NH-D14 Series)
