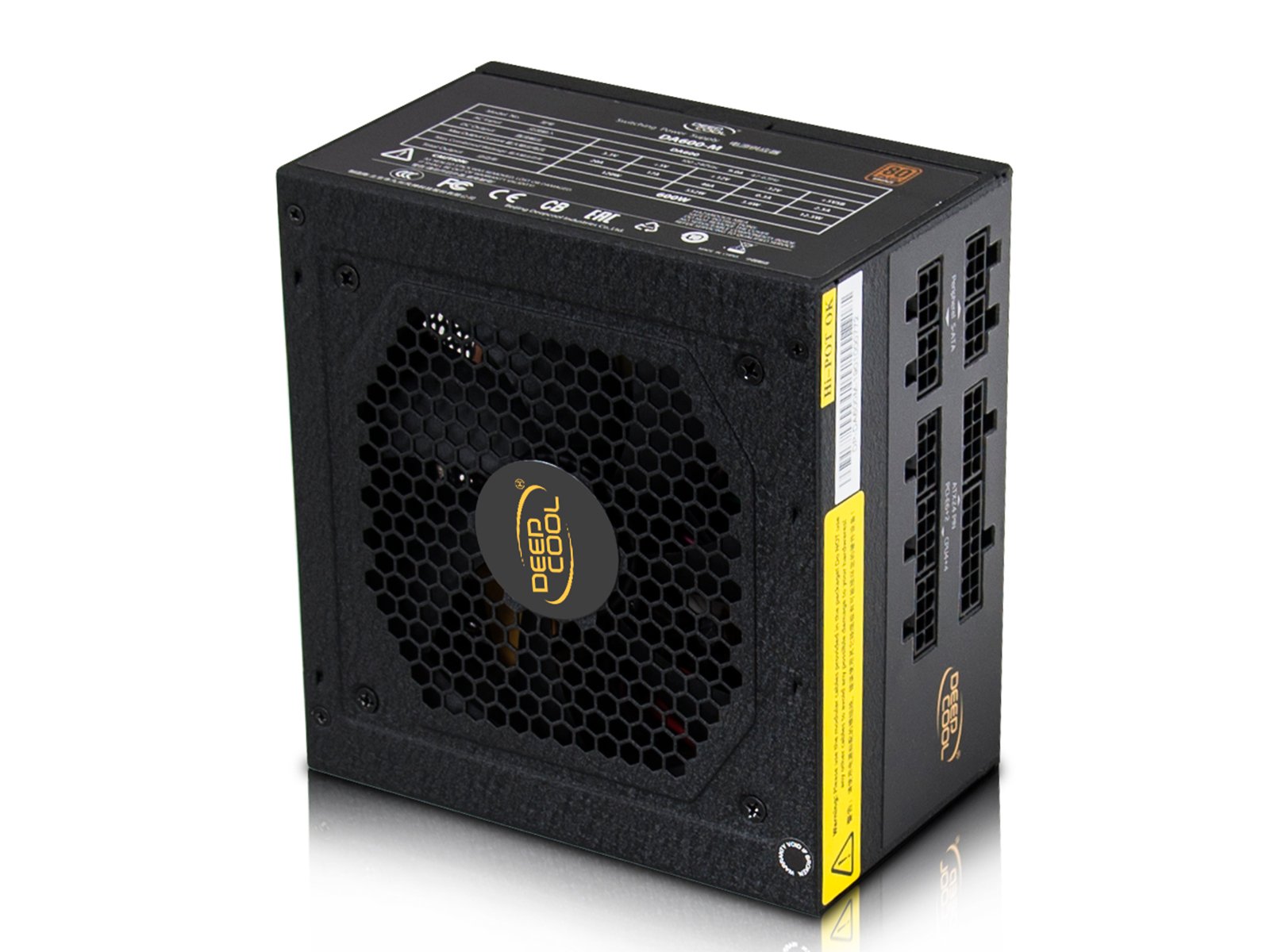

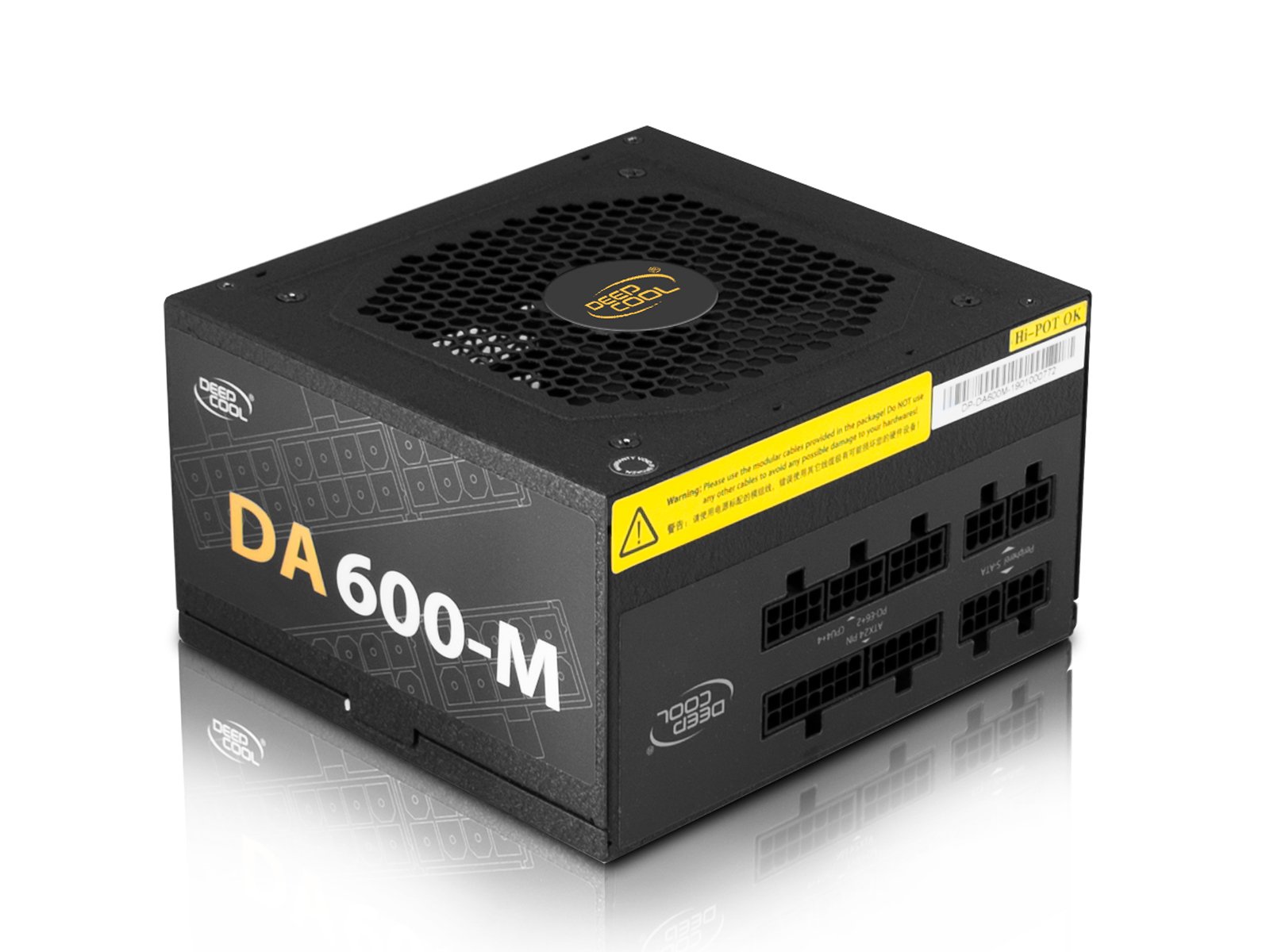

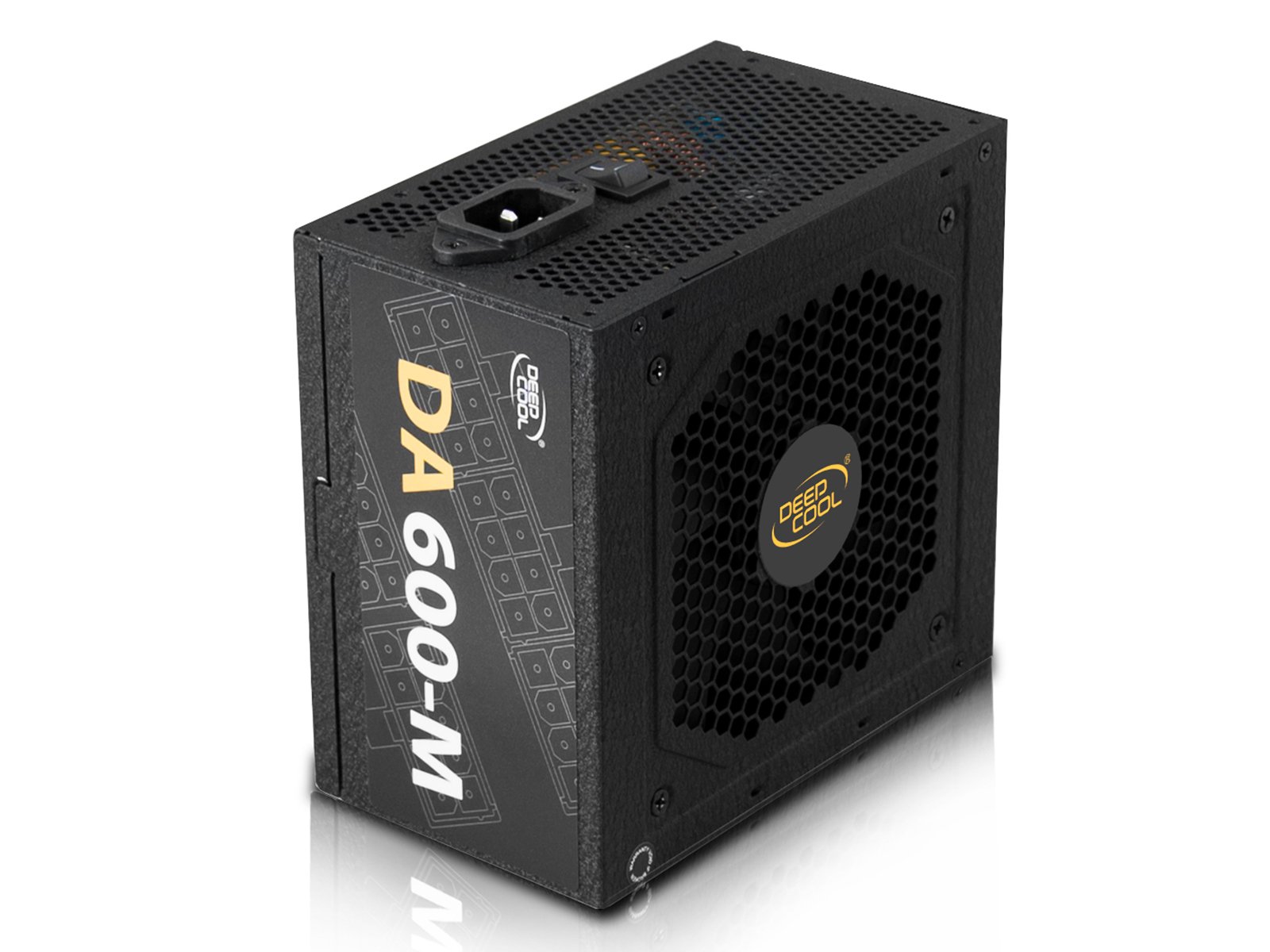

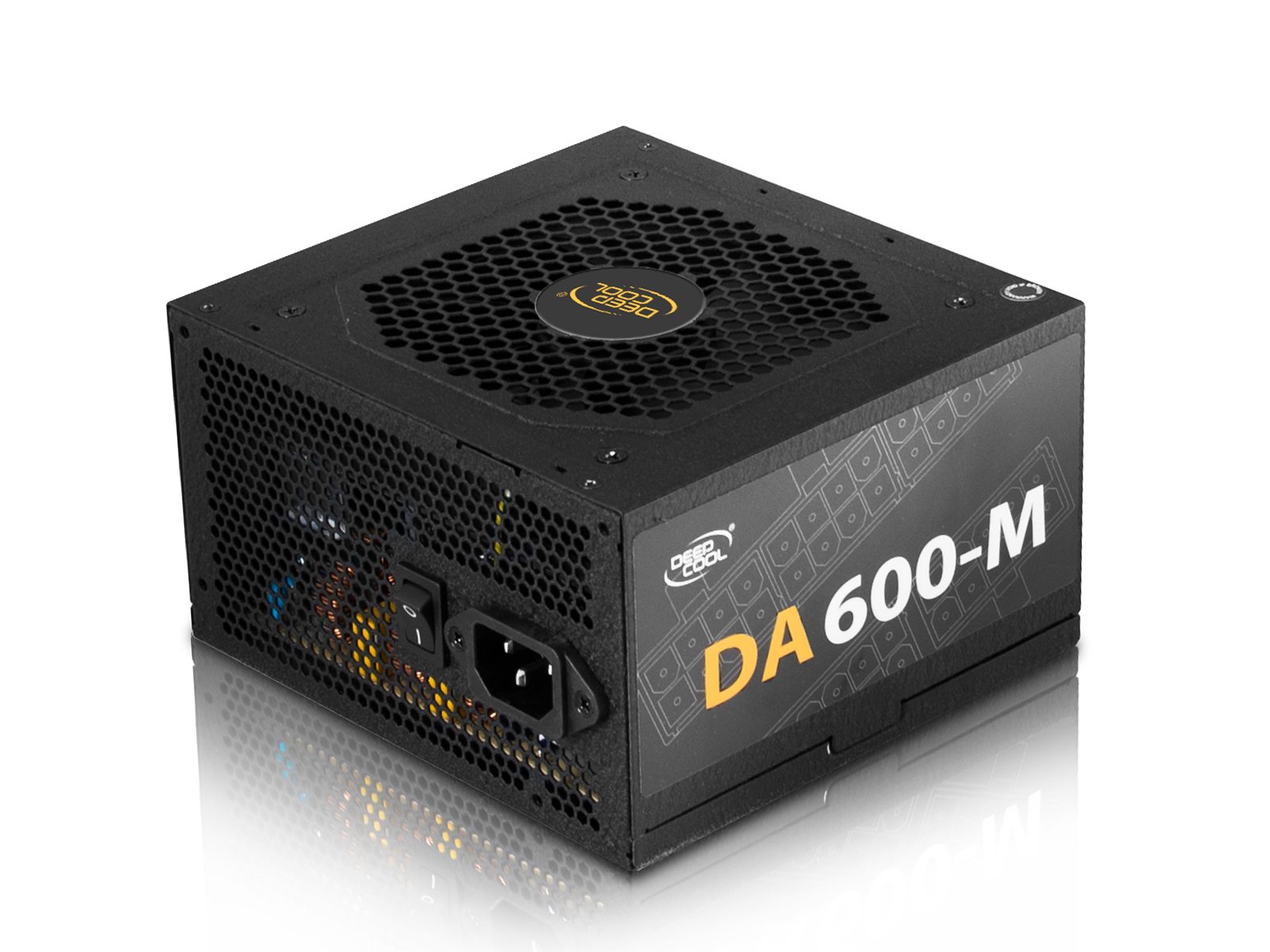

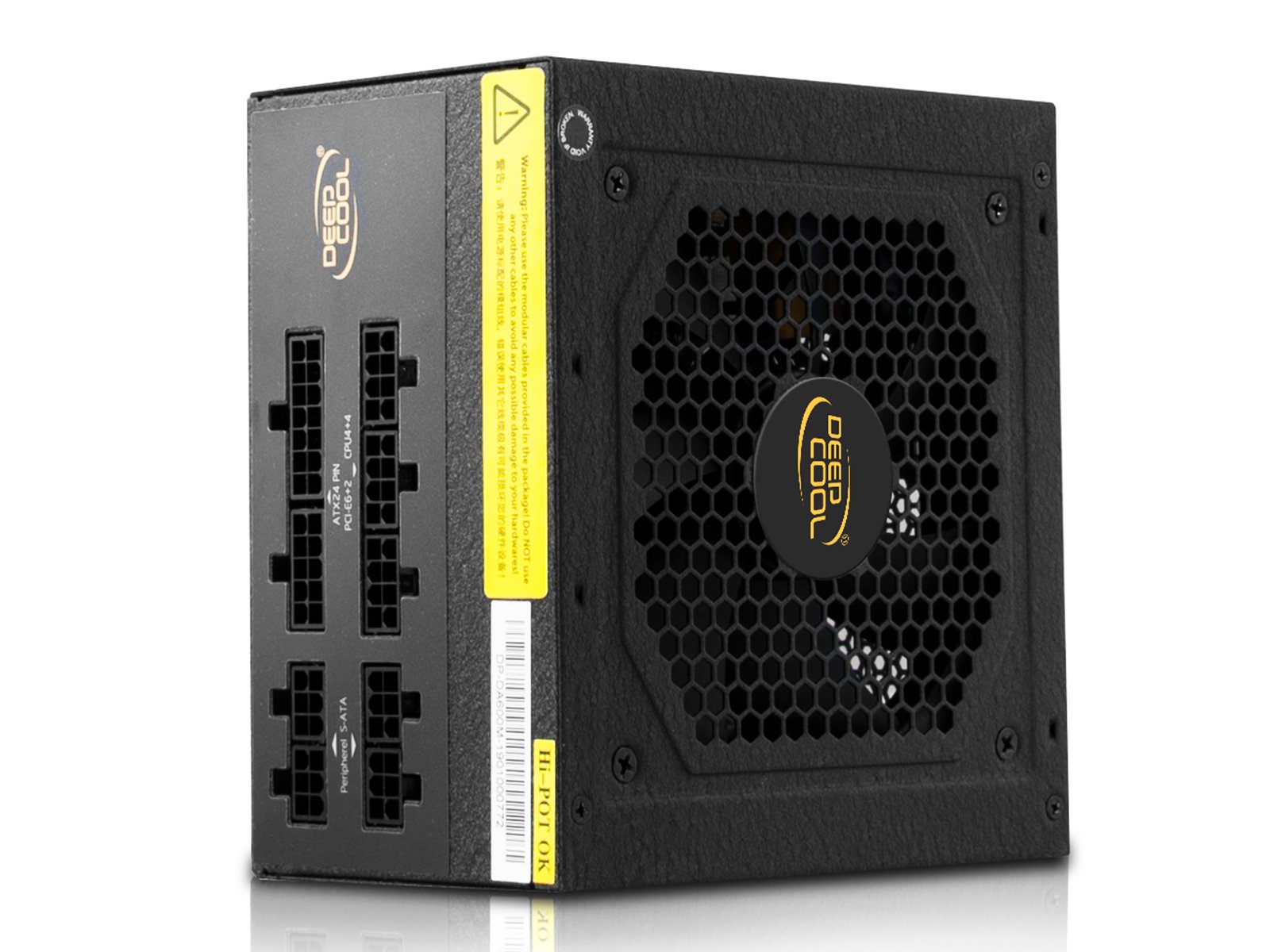

DeepCool PSU 600W Bronze Modular - DA600-M
[DP-BZ-DA600-MFM]
№: ++2155 Manufacturer: DeepCool

€70 66

Notify me of updates to

available: no
This product is not available
70.66 EUR

Declaration of Conformity_DeepCool_DP-BZ-DA600-MFM.pdf

Specifications:

Description

As the 100% Full Modular power supply, DA600-M (Model No. DA600) certified with 80 plus bronze with up to 85% electrical efficiency enabling lower heat generation and lower operation cost. Outstanding and stable performance makes it one of the ideal choices for multi-purpose usage. Double layer EMI filters protect from magnetic interference and restrains noise while operating.

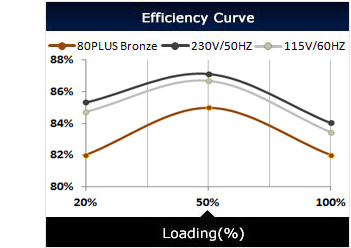

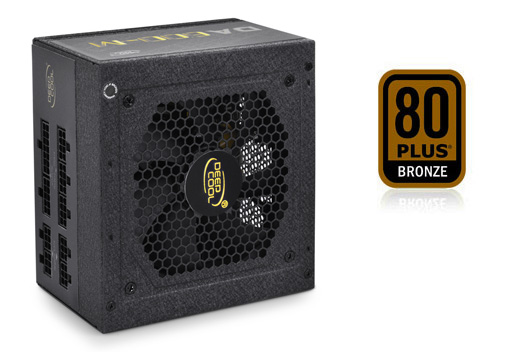

80PLUS BRONZE

80PLUS Bronze certified provide high energy efficiency up to 85%. Click here to view the certification.

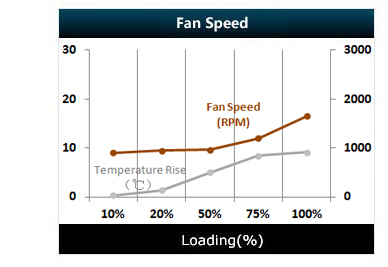

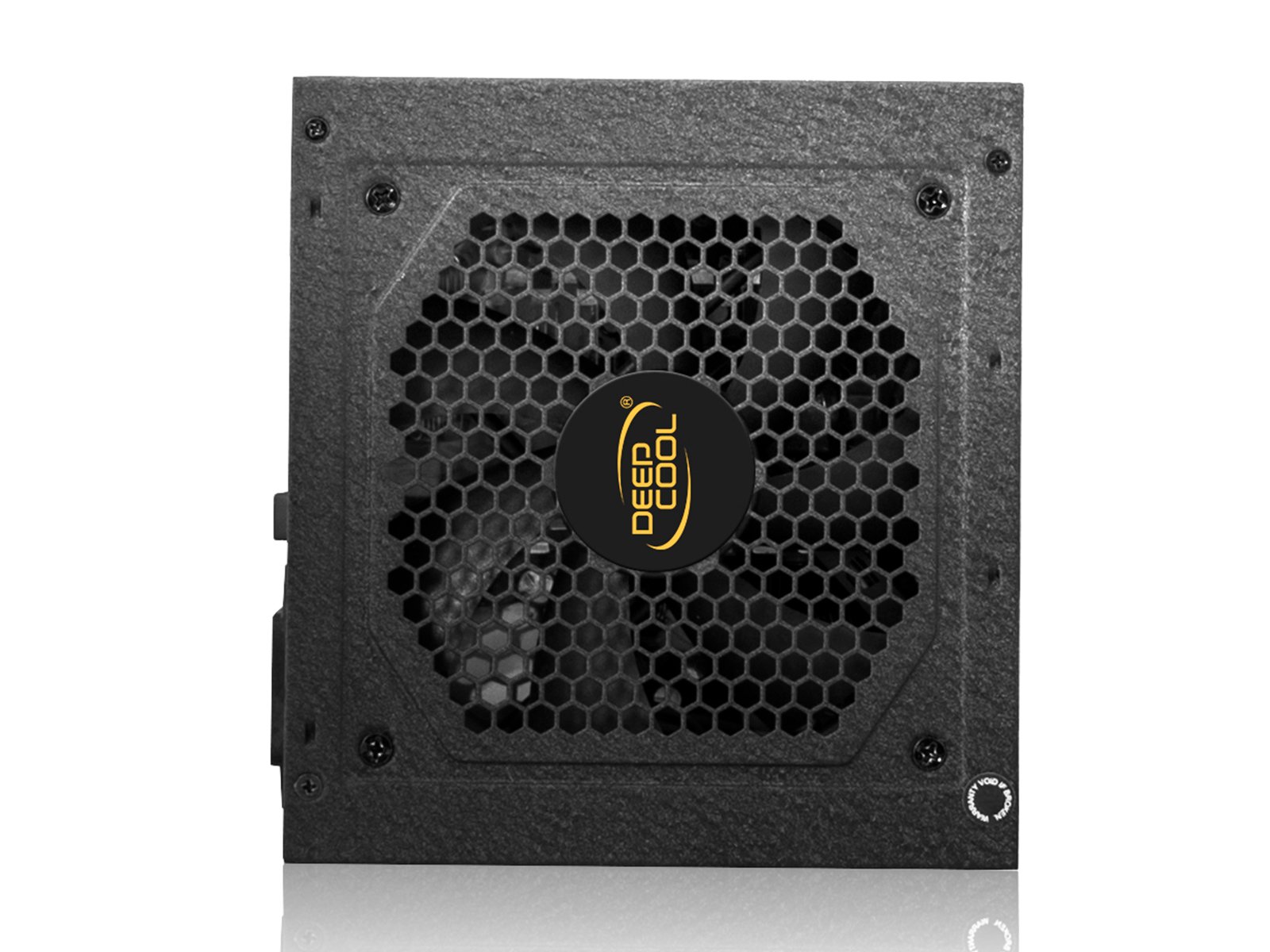

Silent and High Performance Fan

140mm silent fan with PWM function to provide incredible performance-noise ratio.

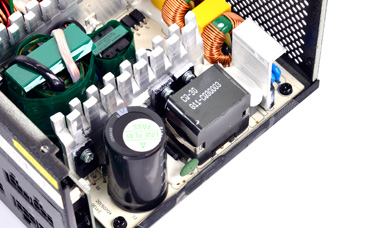

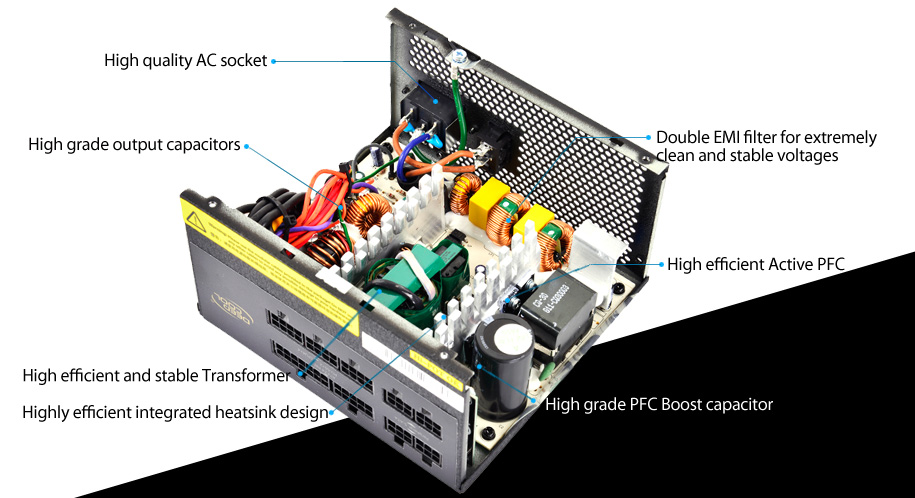

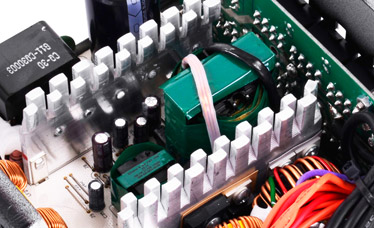

High Grade Components

Details Discovered

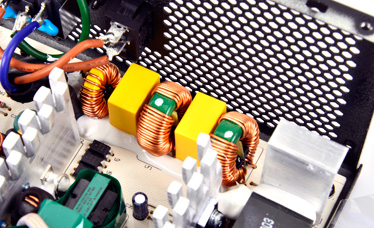

Excellent one & two stage of EMI Filter Circuit
High efficient Active PFC

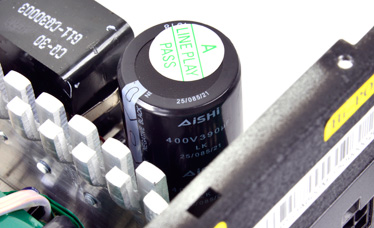

High grade PFC Boost Capacitor
High efficient and stable Transformer
Outstanding single +12V output
High reliable multiple Protecting Systems

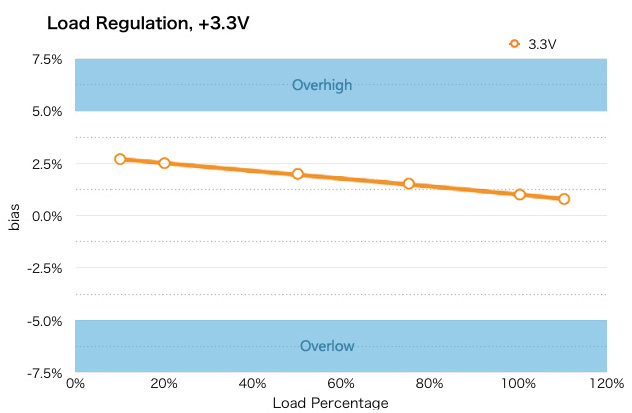

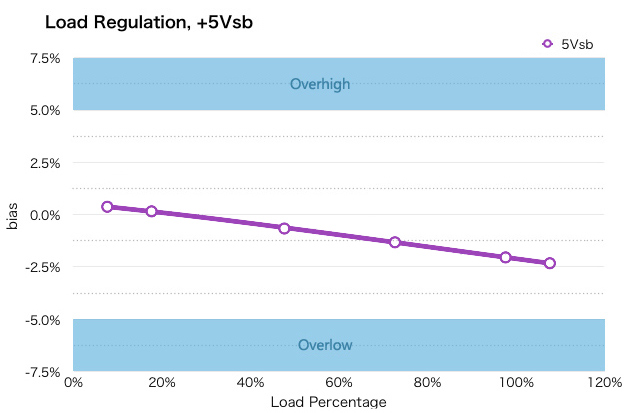

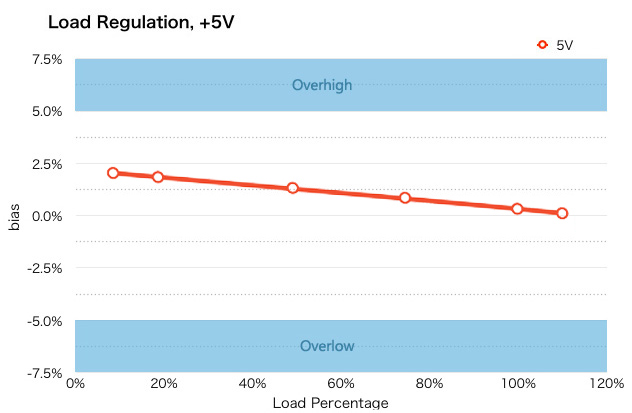

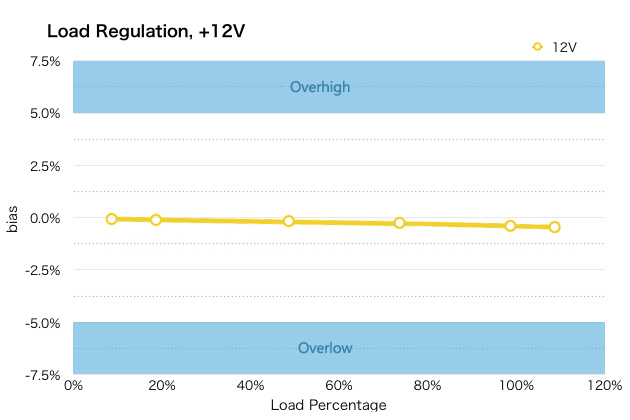

Voltage Regulation

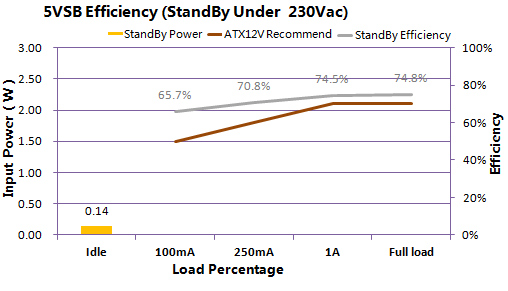

Idle/Standby Efficiency

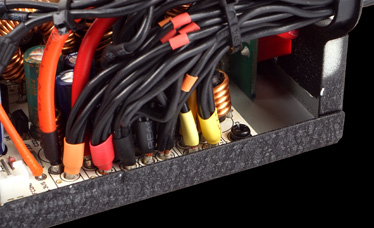

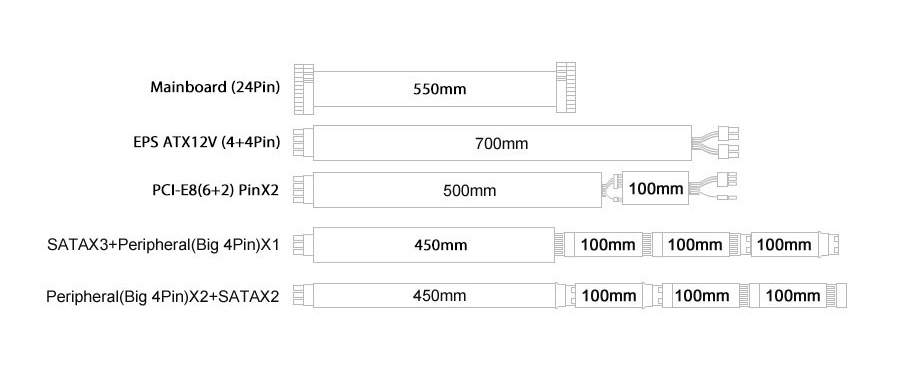

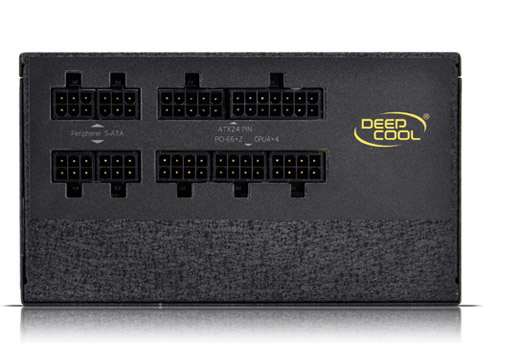

Full Modular Cable Design

Compliant Intel ATX12V v 2.31
The integrated Active PFC+ PWM Combo Controller will increase the efficiency of exchange and make PFChigher than 99%
80 PLUS Bronze certified — up to 85% efficiency
120mm silent fan with PWM function
Full Modularized longer flat cabling design supports cable management perfectly.
Double-Layer EMI Filter protects from electromagnetic interference & restrains noise

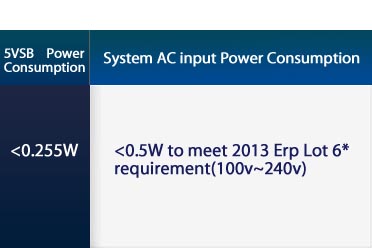

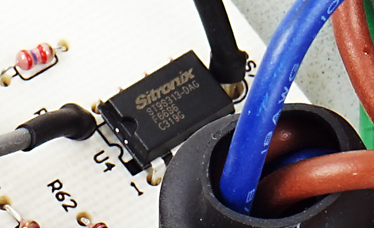

Intelligentized eco-friendly chipset, consume < 0.3W in its off-mode, compliant Erp standard
CircuitShield —OVP, UVP, SCP, OPP
Supports Multi-Way SLI / CrossFire + Multi-Core CPUs
High reliability with an MTBF of at least 120,000 hours of use

Technical Spec

Model	DA600-M (Model No. DA600)
Type	ATX 12V V2.31
Certifications	80PLUS Bronze
Dimension	150×140×86mm (W x L x H)
Output Capacity	600W
Input Voltage	100~240V
Input Current	8A
Input Frequency Range	47~63Hz
Fan Size	120mm Black Fan
PFC	Active PFC
Power Good Signal	100-500ms
Hold Up Time	>16ms
Efficiency	85% Under Typical Load
Protection	OVP / UVP / SCP / OPP
Operation Temperature	0~40°C
Regulatory	CE / FCC / CCC / CB / EAC / TUV
MTBF	120,000 Hours

AC INPUT	VOLTAGE		CURRENT	FREQUENCY
AC INPUT	100-240V		8.0A	47-63Hz
DC OUTPUT	+3.3V	+5V	+12V	-12V	+5VSB
CURRENT(Max)	20A	17A	46A	0.3A	2.5A
OUTPUT(Max)	120W		552W	3.6W	12.5W
TOTAL OUTPUT	600W

DeepCool PSU 600W Bronze Modular - DA600-M
[DP-BZ-DA600-MFM]
№: ++2155 Manufacturer: DeepCool

Specifications:

80PLUS BRONZE

Silent and High Performance Fan

140mm silent fan with PWM function to provide incredible performance-noise ratio.

Excellent one & two stage of EMI Filter Circuit

High efficient Active PFC

High grade PFC Boost Capacitor

High efficient and stable Transformer

Outstanding single +12V output

High reliable multiple Protecting Systems

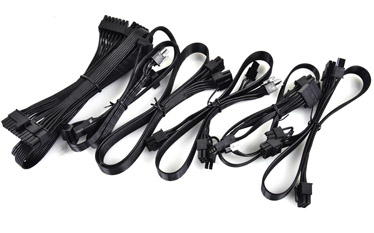

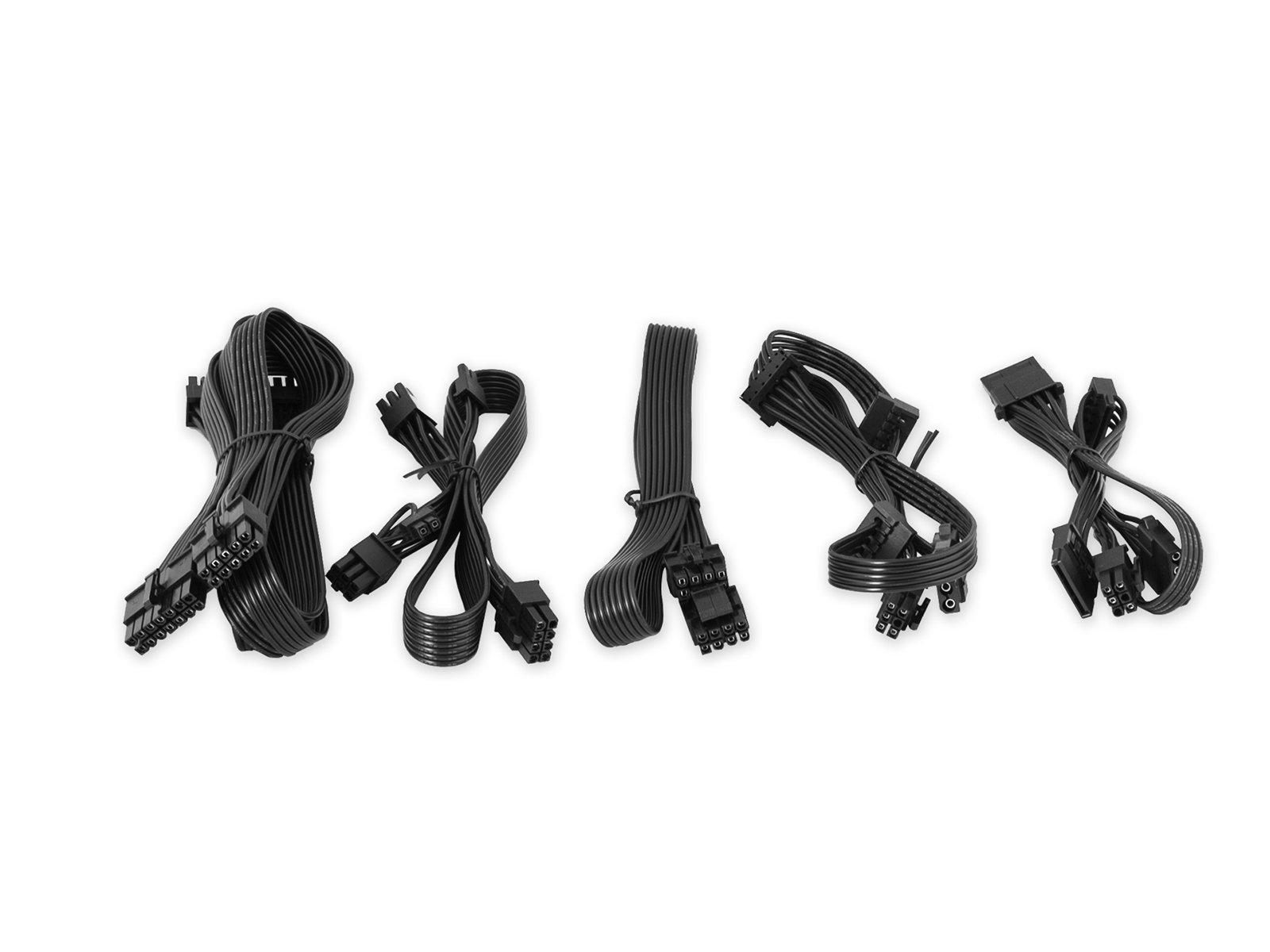

Modular Cable System

With modular cable system, you can connect only the cables you need to ensure a tidy and nice-looking case.
