Features
Compliant Intel ATX2.31

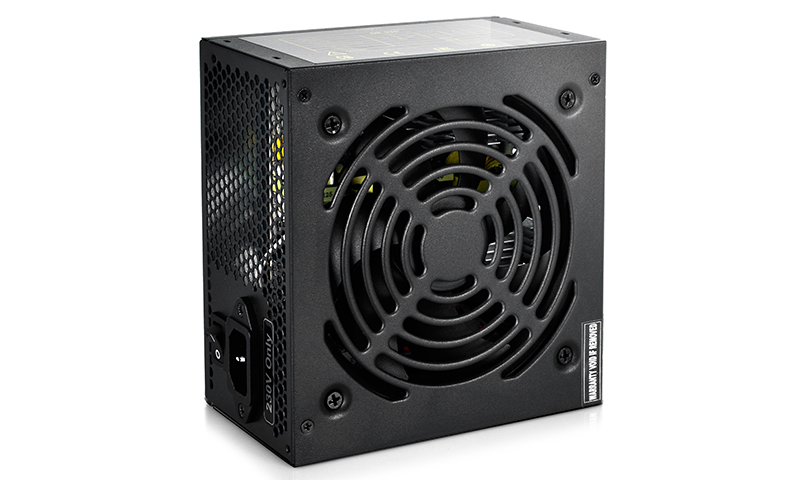

120mm silent fan with PWM function
CircuitShield™ — Over Voltage Protection (OVP), Short Circuit Protection
(SCP), Over Power Protection (OPP)
Applying the latest unleaded production technics, compliant to RoHS standard
High reliability with an MTBF of at least 100,000 hours of use
High cost-performance

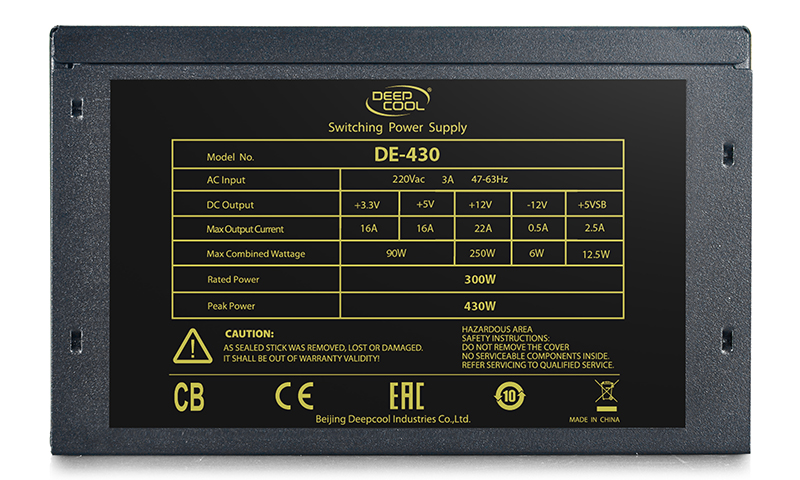

Output| AC INPUT |
VOLTAGE |
CURRENT |
FREQUENCY |
|
230V |
4.0A |
47-63Hz |
|
DC OUTPUT |
+3.3V |
+5V |
+12V1 |
+12V2 |
-12V |
+5VSB |
|
CURRENT(Max) |
21A |
15A |
12A |
12A |
0.3A |
2A |
|
OUTPUT(Max) |
103W |
280W |
3.6W |
10W |
|
TOTAL OUTPUT |
300W |
|
PEAK POWER |
430W |

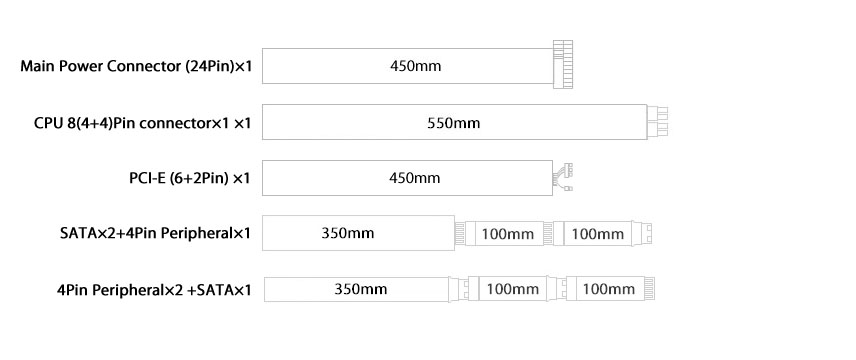

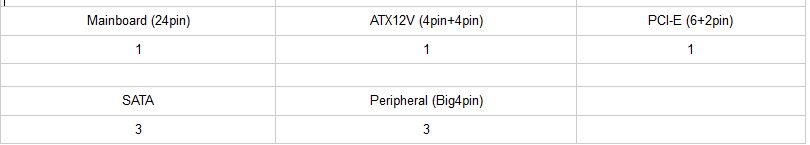

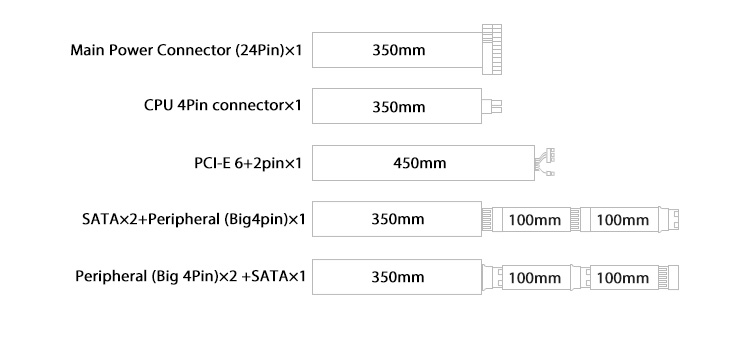

Cables
Technical Spec
| Model |
DE430 |
|
Type |
ATX 12V V2.31 |
|
Dimension |
150×140×86mm (W x L x H) |
|
Output Capacity |
300W |
|
Input Voltage |
160~240V |
|
Input Current |
4A |
|
Input Frequency Range |
47~63Hz |
|
Fan Size |
120mm silent fan with PWM function |
|
Power Good Signal |
100-500ms |
|
Hold Up Time |
>16ms |
|
Protection |
OVP / UVP / SCP / OPP / OPP |
|
Operation Temperature |
0~40°C |
|
Regulatory |
CE / CB / EAC / TUV |
|
MTBF |
100,000 Hours |
