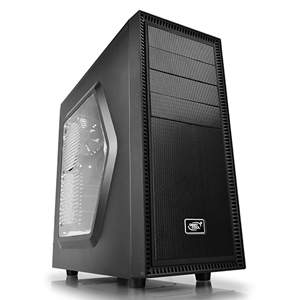

DeepCool Case TESSERACT SW Window USB 3.0
[DP-CCATX-TSRBKBL]
№: ++1973 Manufacturer: DeepCool

€43 07

Notify me of updates to

available: no
This product is not available
43.06 EUR

Specifications:

Tesseract Series Computer Cases come with multiple features. Its great compatibility, simple design and uncompromising cooling performance have made it a popular choice for many DIY enthusiasts and gamers. With up to six fan installation, 310mm graphics card space and various DIY features, what else could you possibly ask for?

Pre-installed one DC fan on the rear
Dust-filter added at the top panel
one USB 3.0 + one USB 2.0 Ports
Fully black painted interior
Patented air intake channel on the perimeter of the front panel
Fully metal mesh design for the most cooling

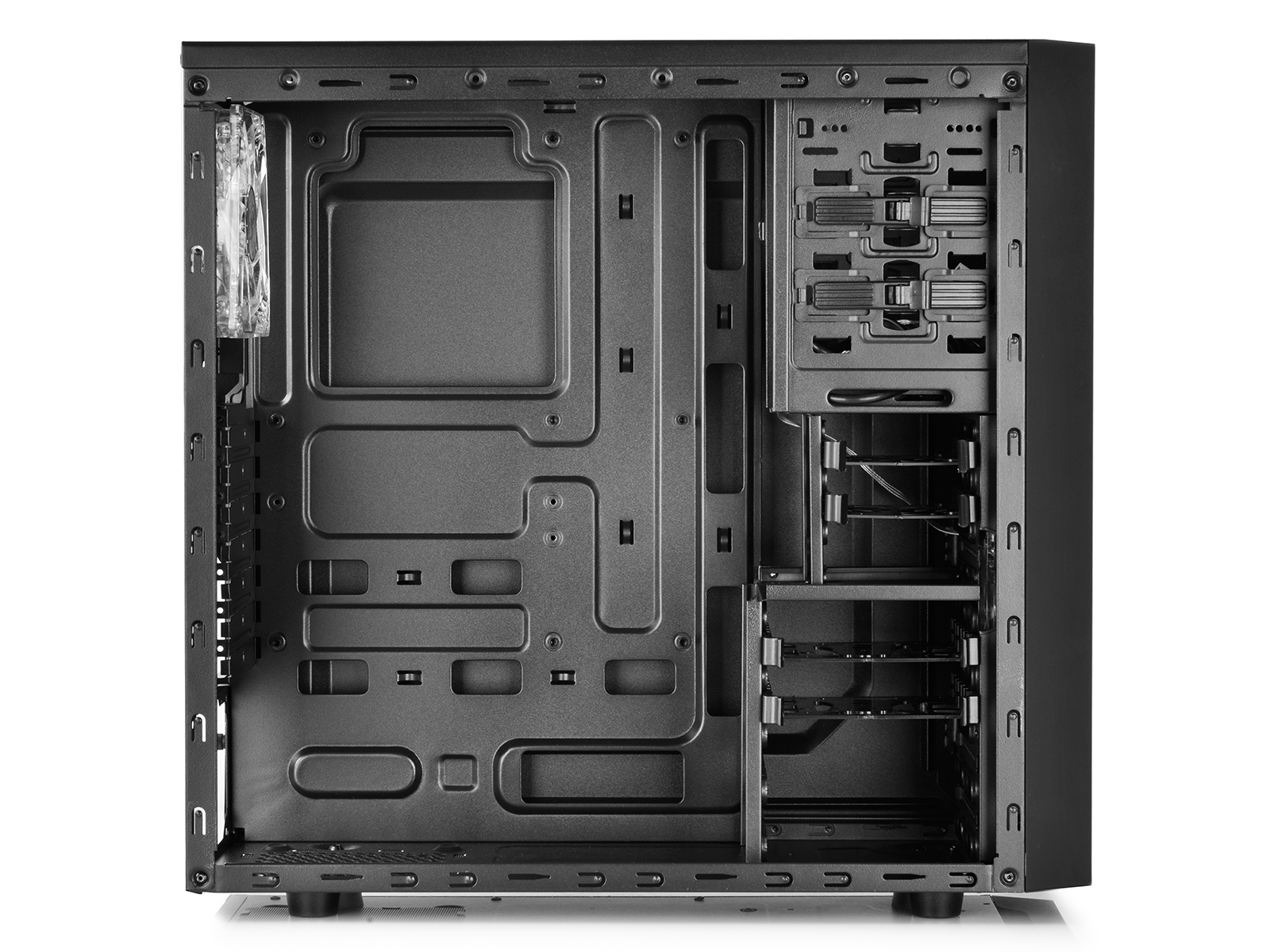

Enough room for long VGA card installation
Rail slide HDD design for HDD easy installation
Tool free installation design for ODD/HDD
High quality rubberized coating for aesthetics

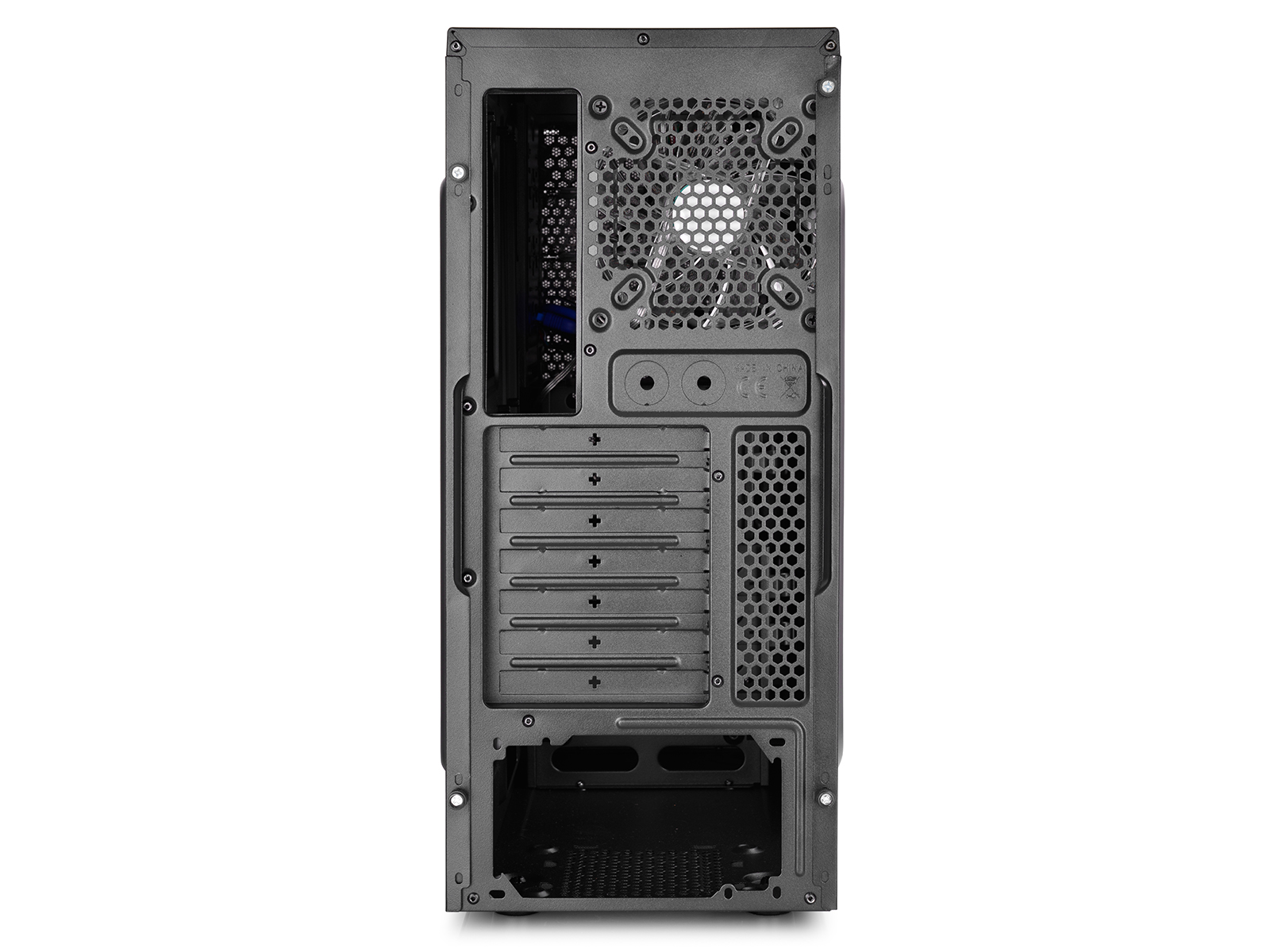

2 water cooling grommets on the rear
Wide CPU cut out for CPU cooler mounting
Bottom loaded PSU for effective cooling and large inner space
Support cable management

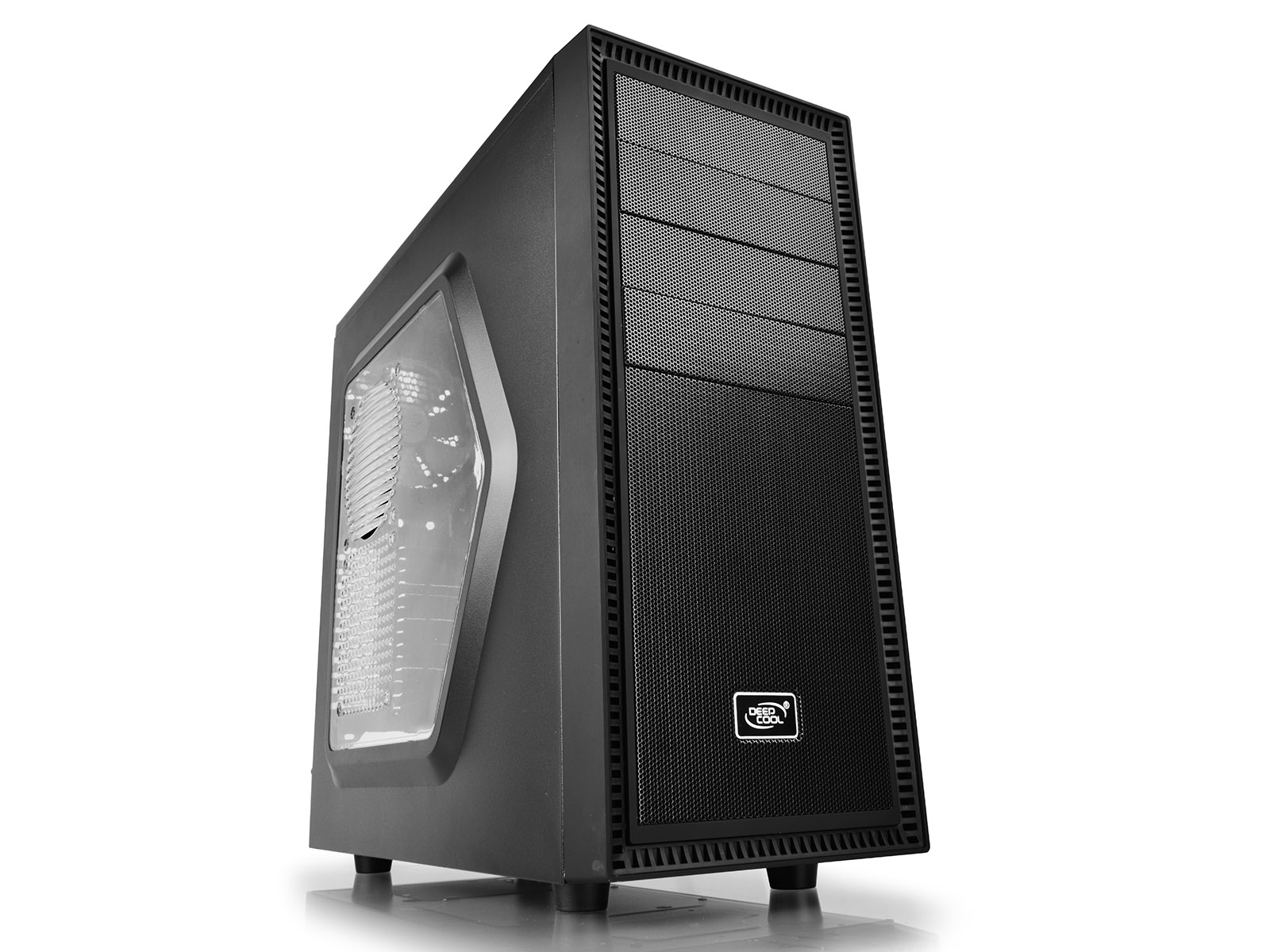

TESSERACT SW

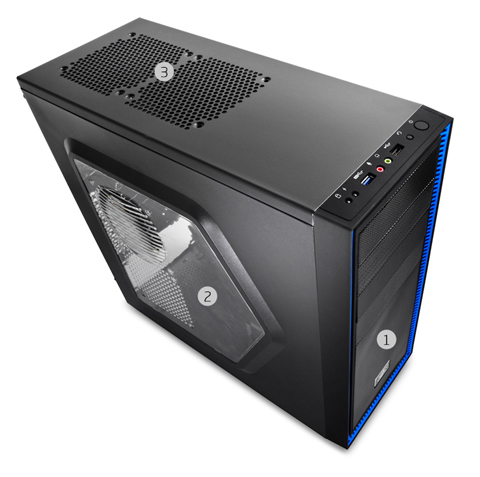

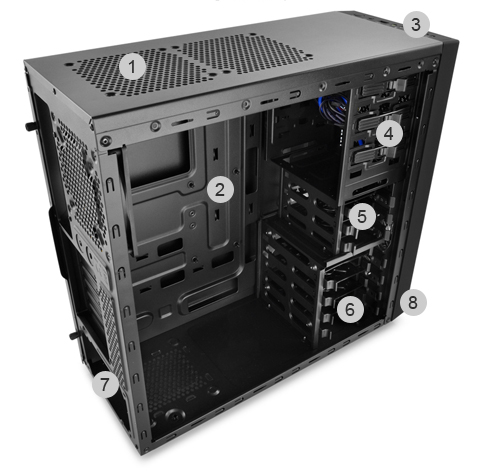

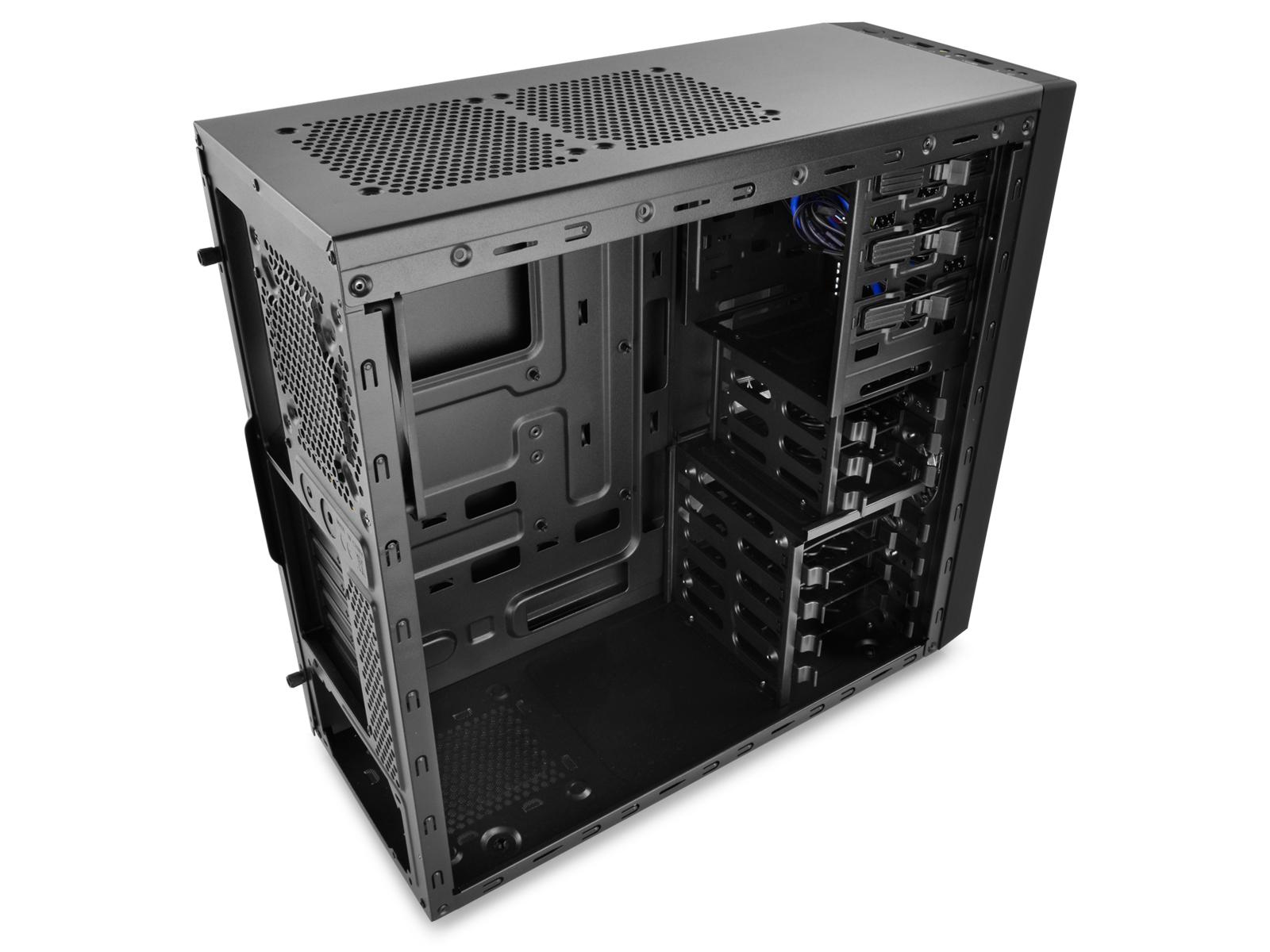

Great Installation Potential

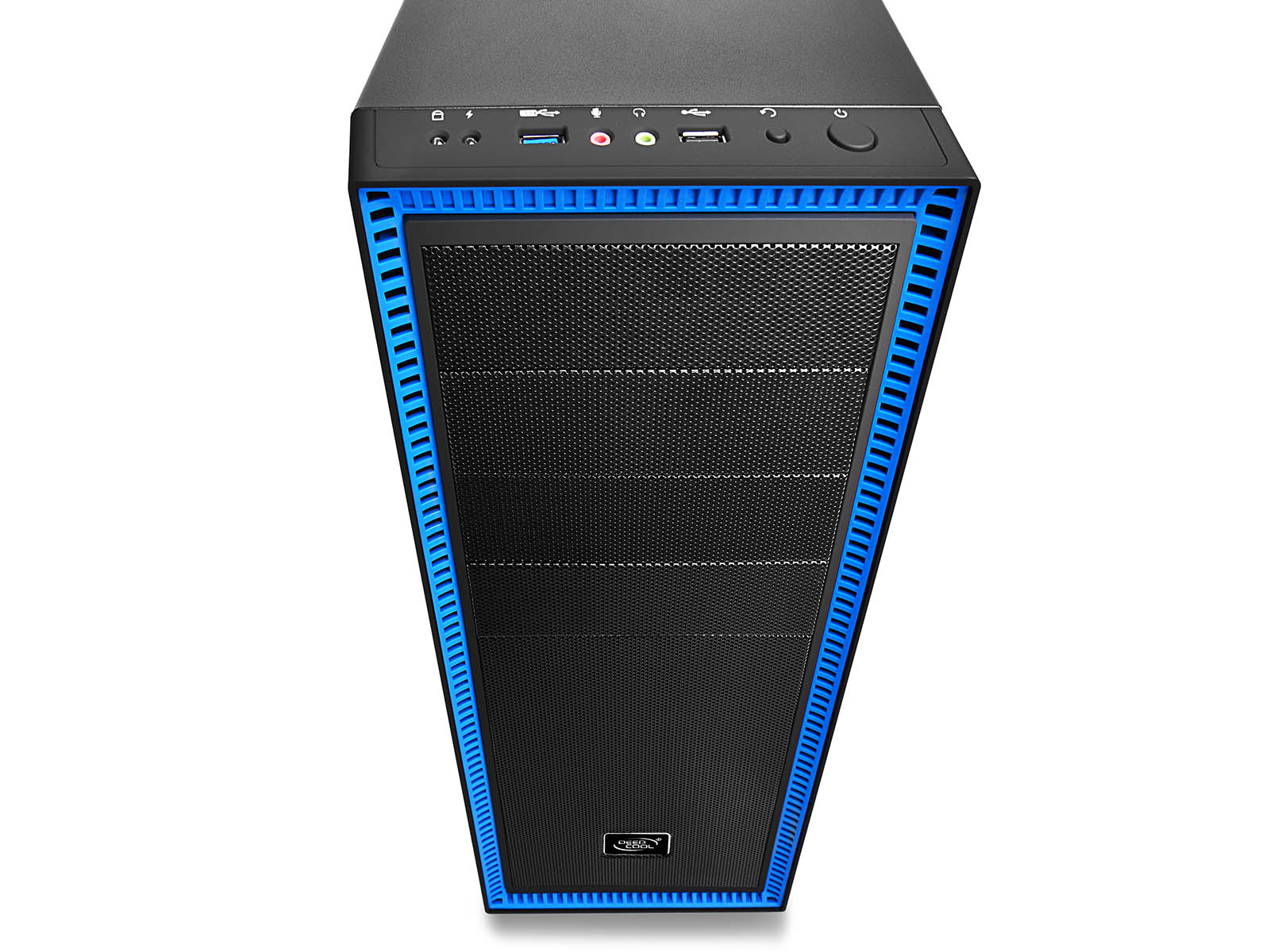

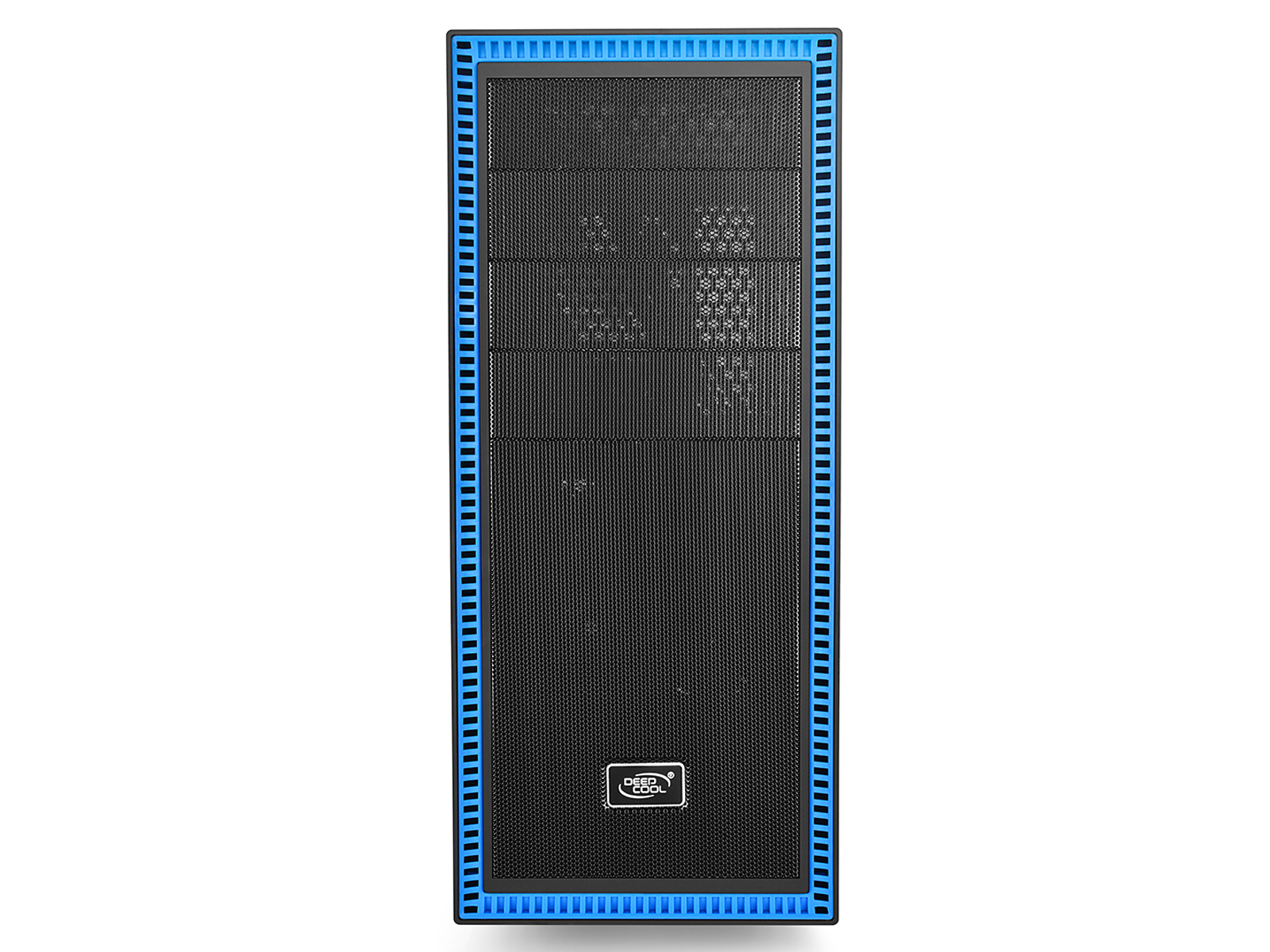

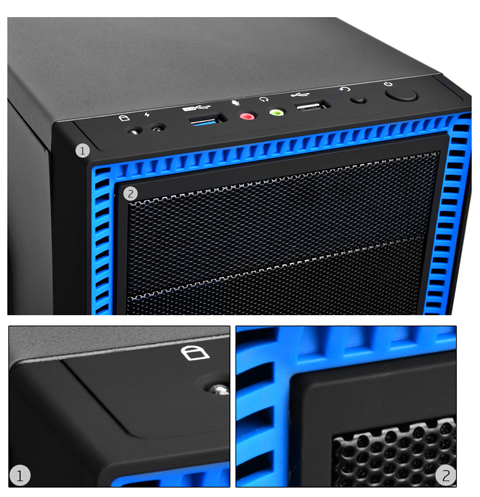

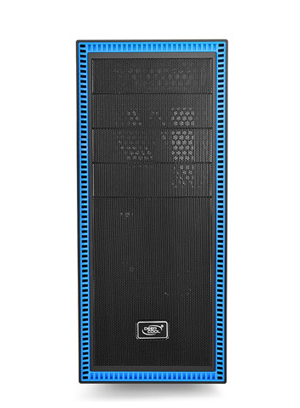

Full metal mesh front panel with unique air intake vents around the perimeter.

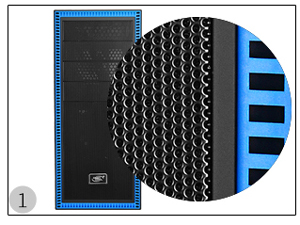

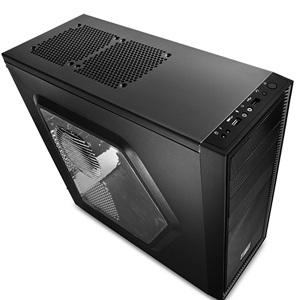

Full Metal Mesh Panel

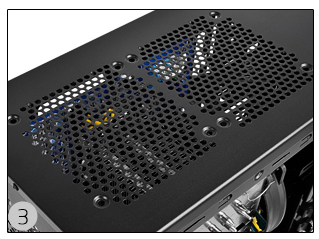

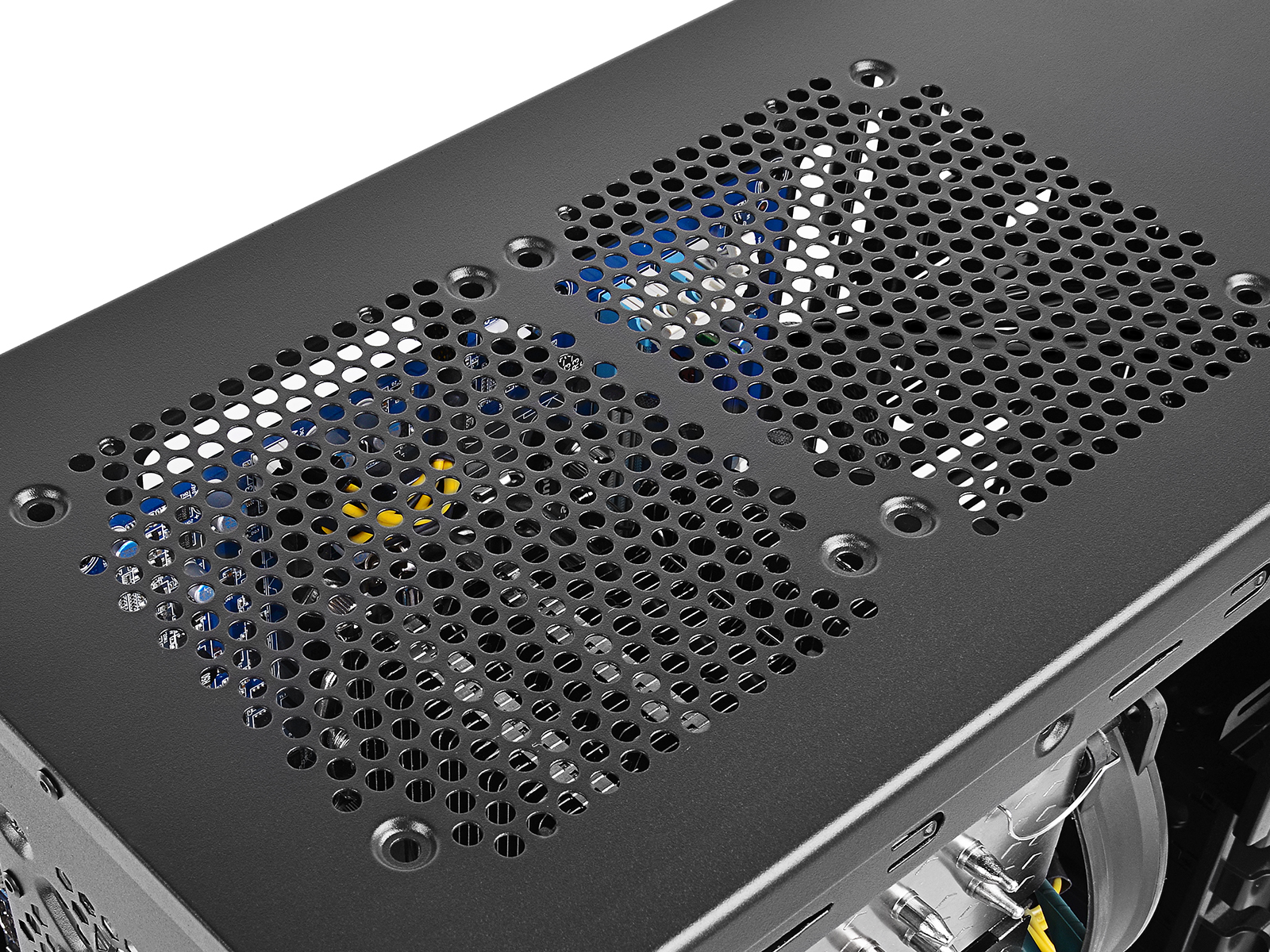

Two 120mm fans can be mounted on the top panel for quick exhaustion. (Supports 240mm water cooling)

Two 120mm fans can be installed on the side panel to pull cool air for CPU/GPU.

High Quality Rubber Coating Finish

Rubber coating is applied around the control panel and other areas to enhance the touch pleasantness.

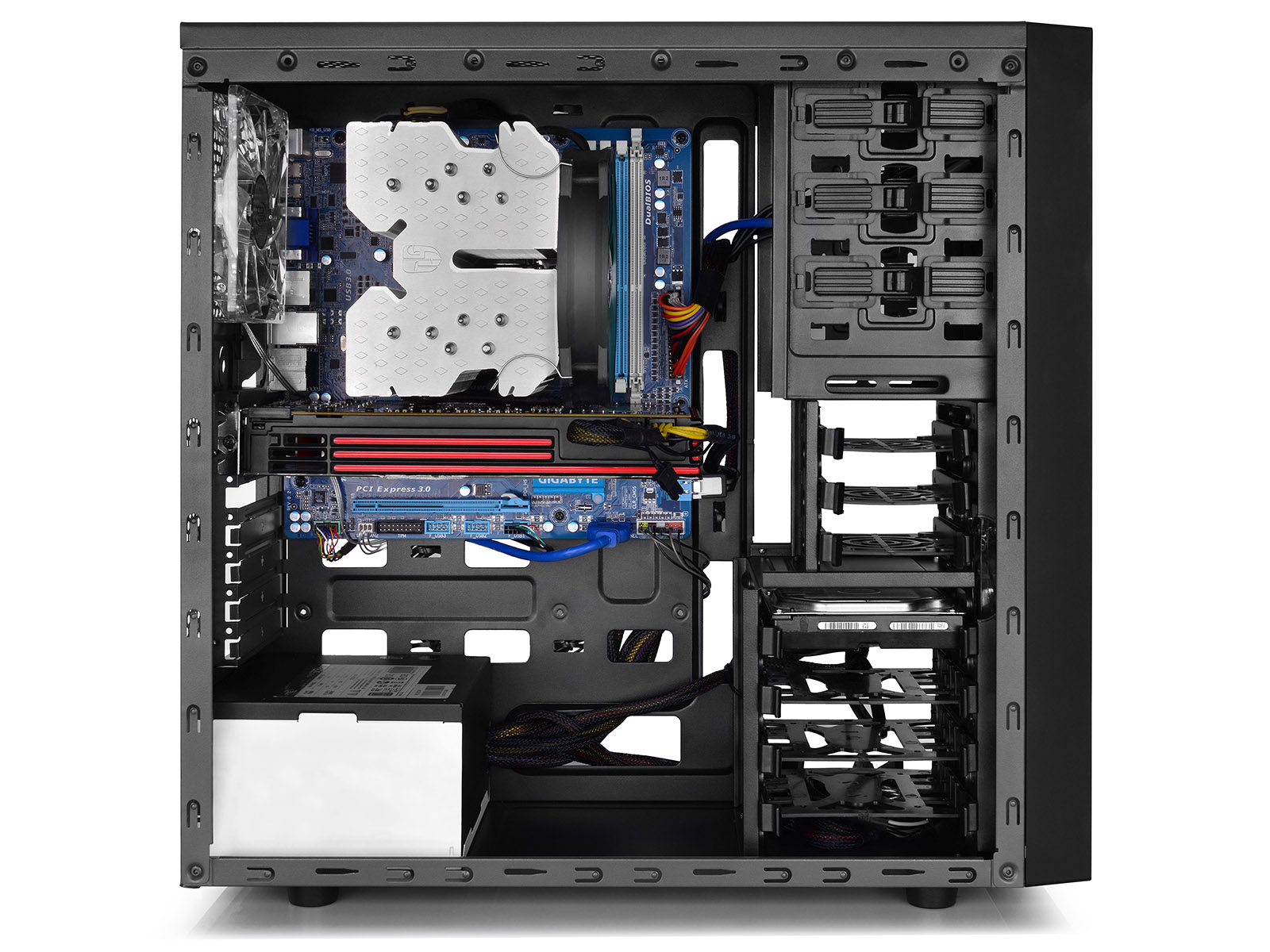

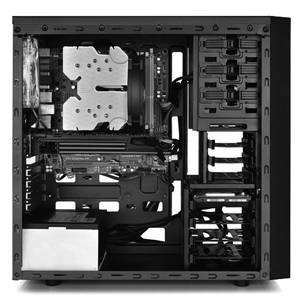

Wide Compatibility

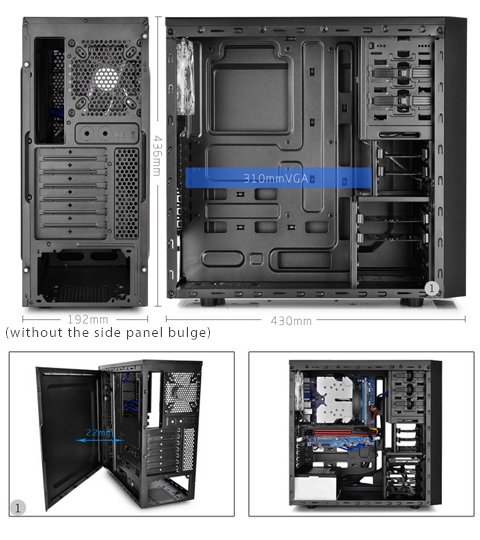

High-end gaming VGA card is compatible. This enables you to build up a gaming rig easily.

There's enough room for cable management with a 0.8-inch (22mm) clearance.

Details

2 x 120mm fans supported

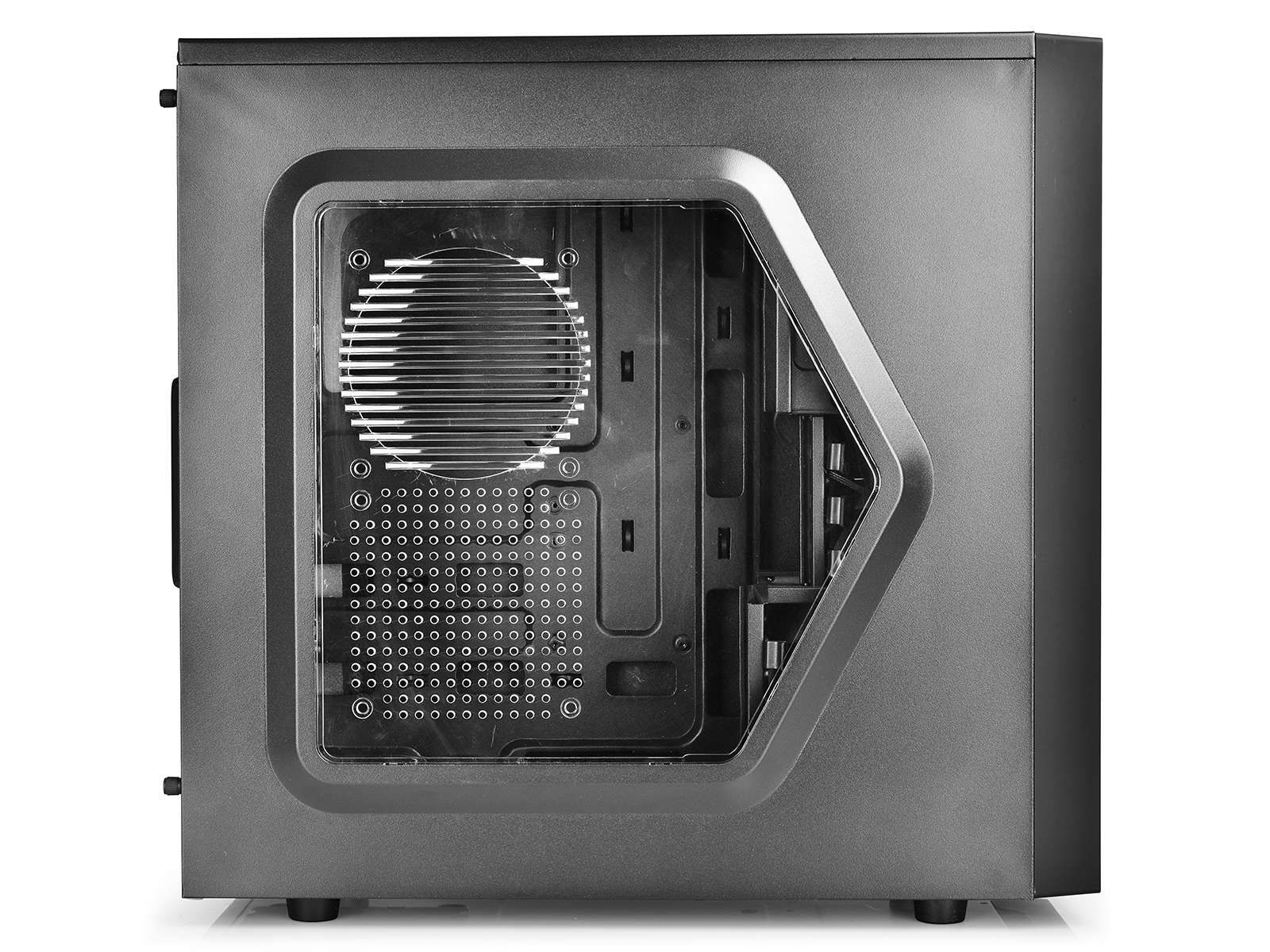

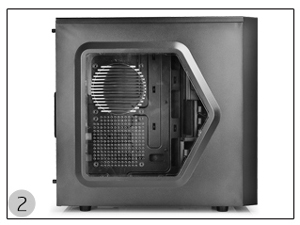

New Side Panel Design

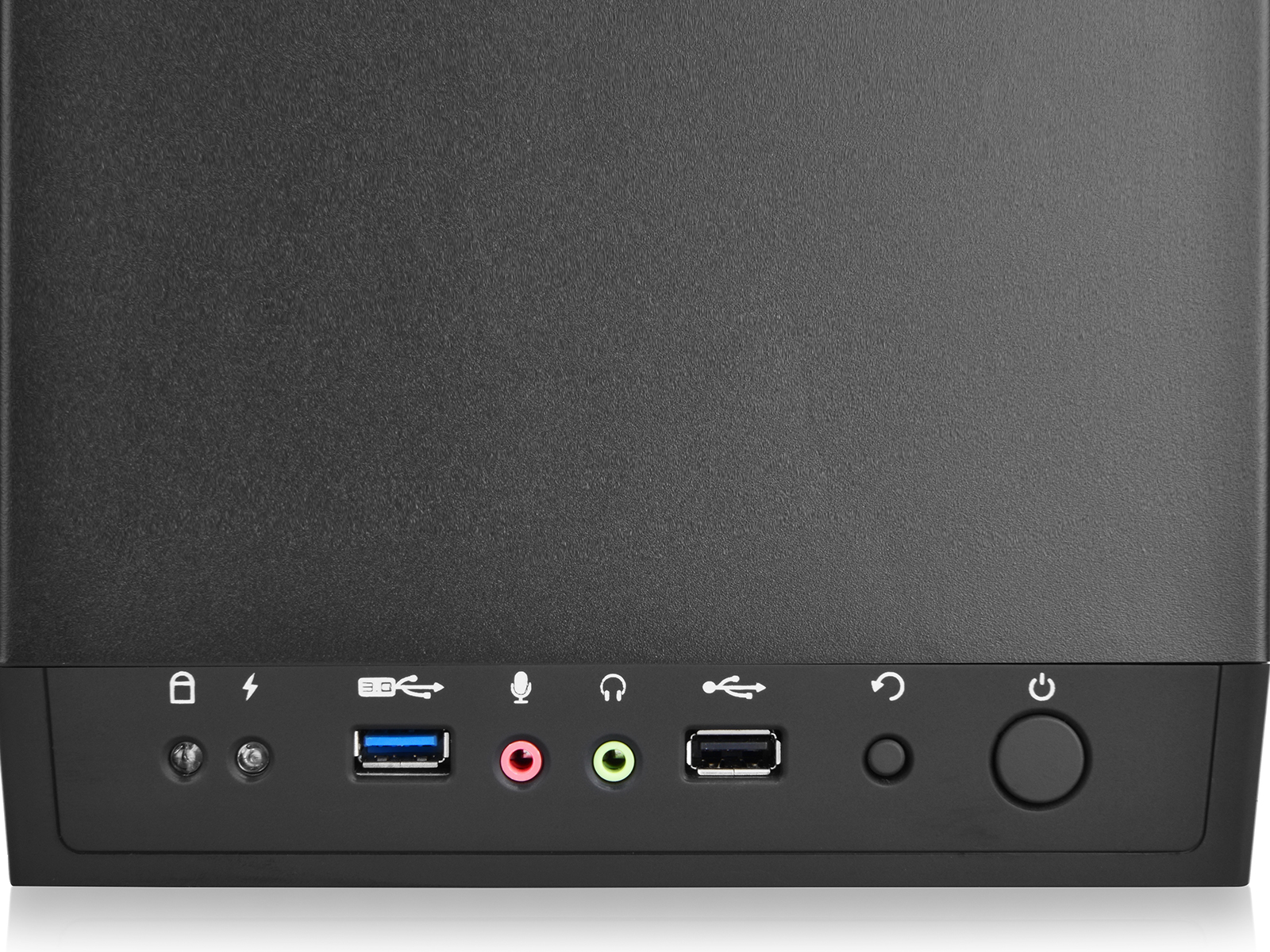

USB 3.0 x 1, USB 2.0 x 1, Audio x 1, Mic x 1

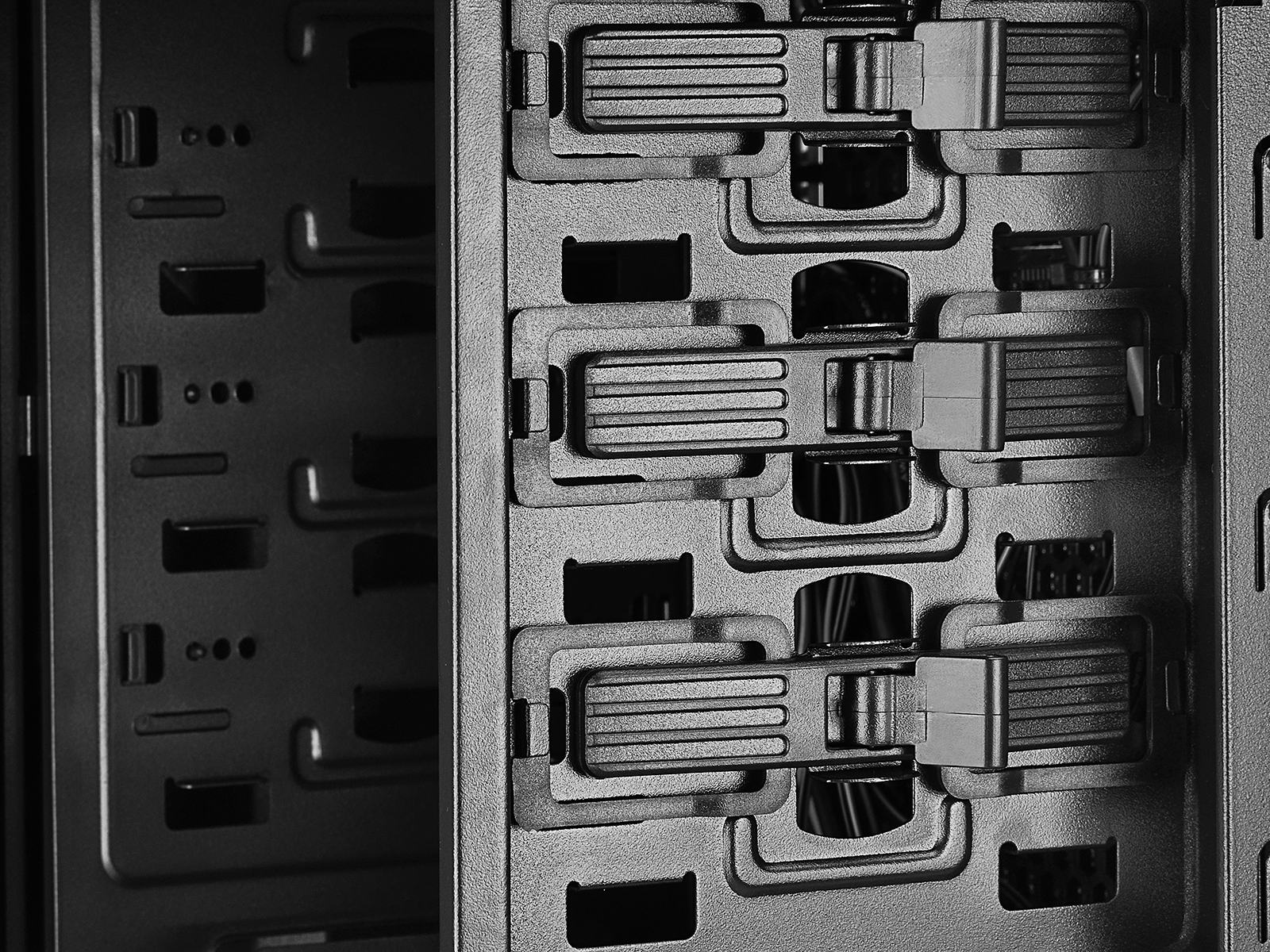

ODD Installation Tool-free Design

2.5" HDD/SSD Installation Tool-free Design

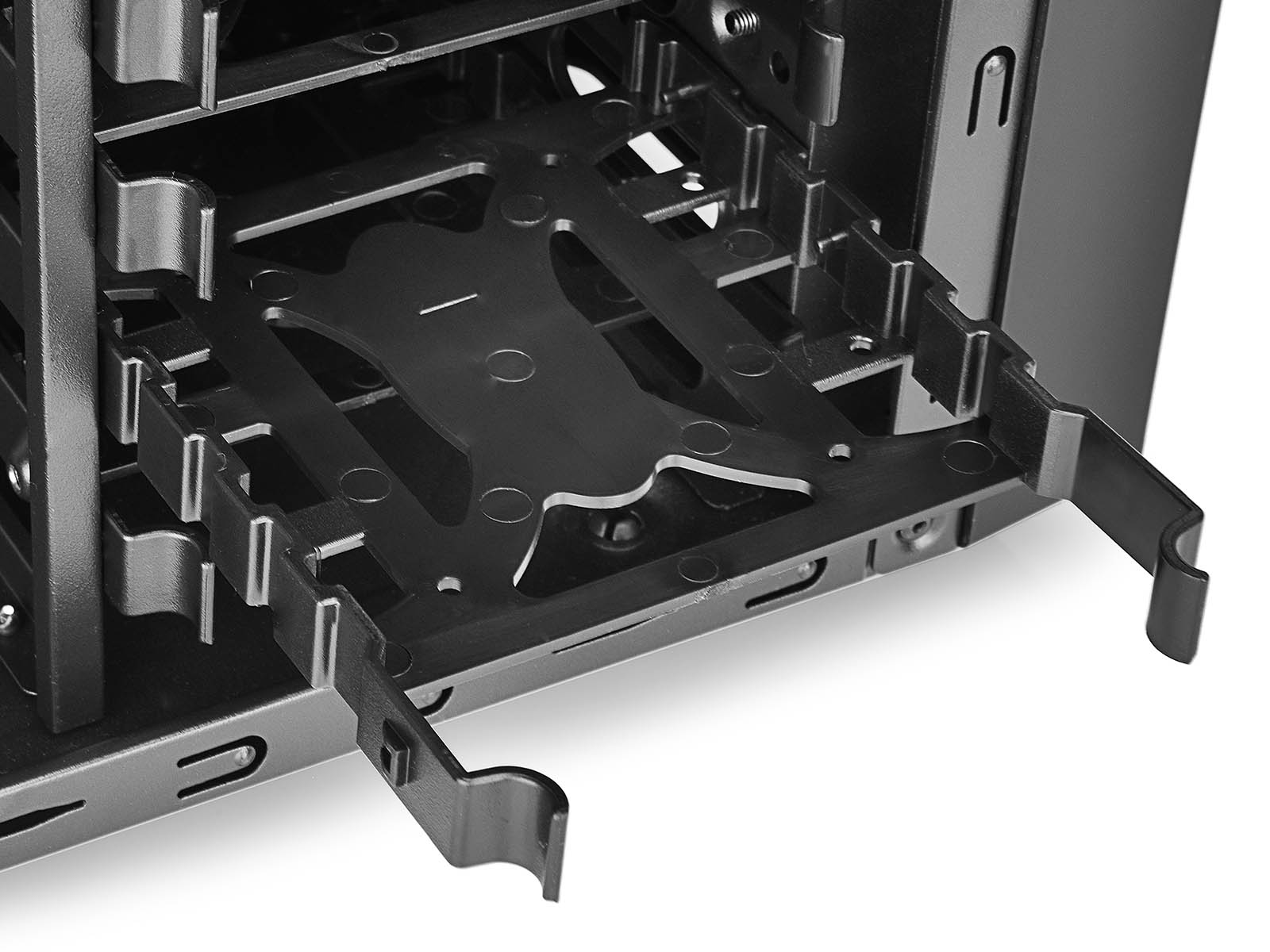

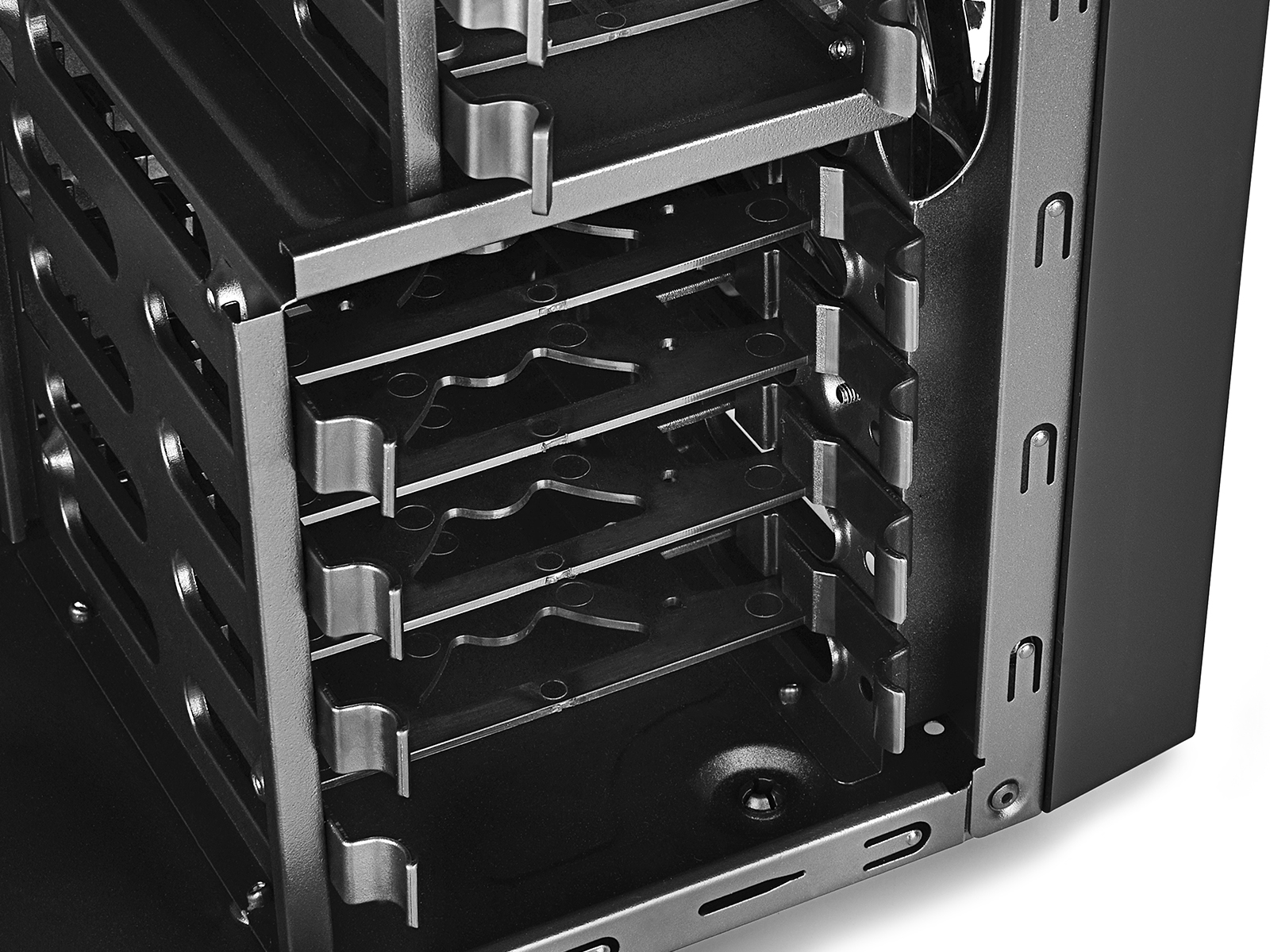

3.5" HDD Installation Tool-free Design

Bottom loaded PSU

Patented Air Intake Vent

Gallery

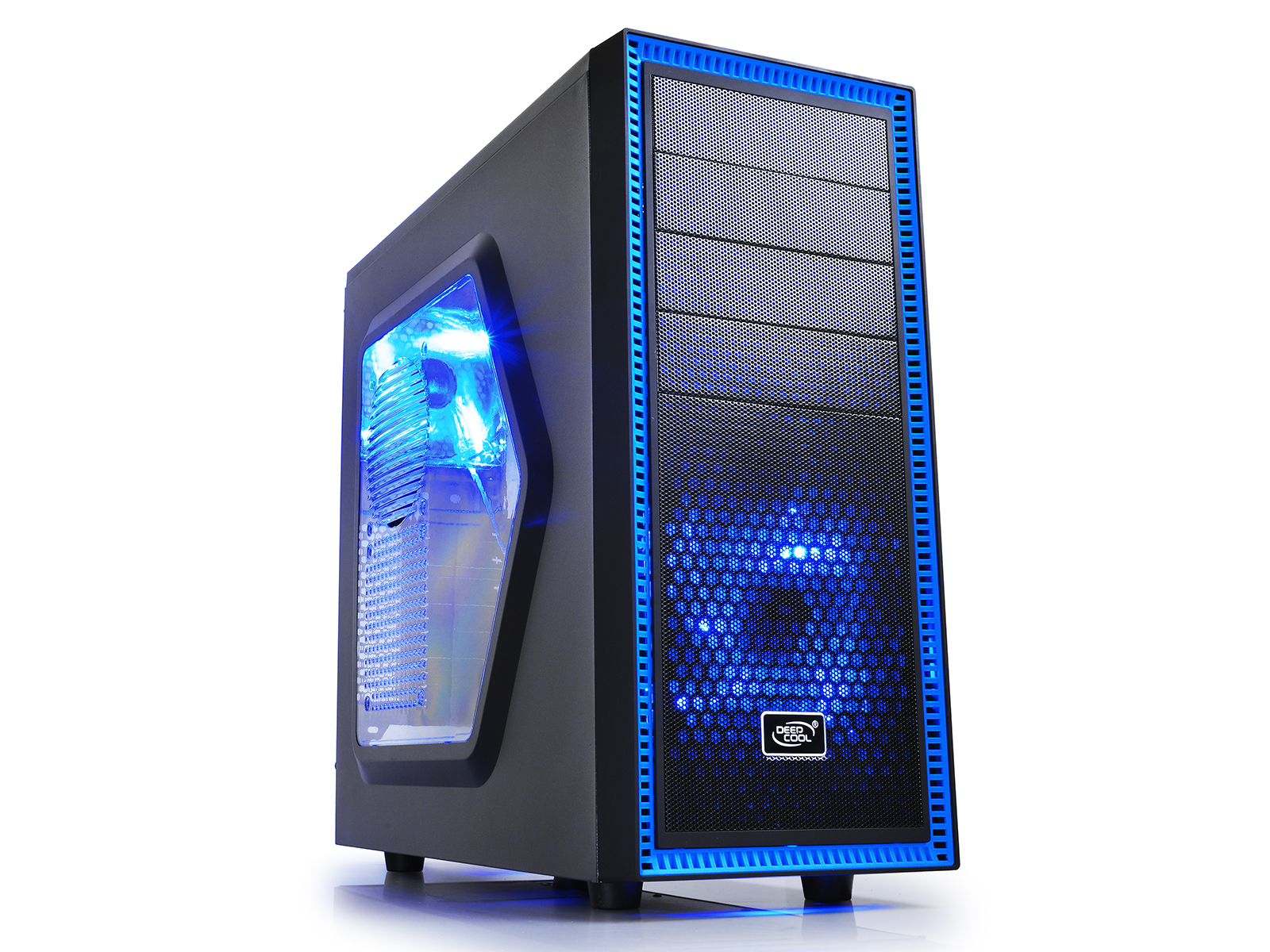

TESSERACT BF

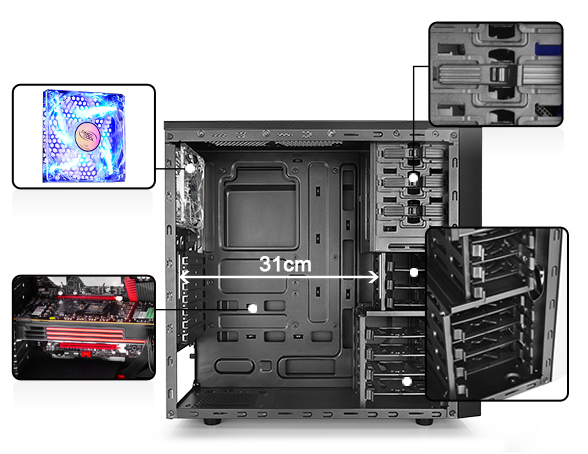

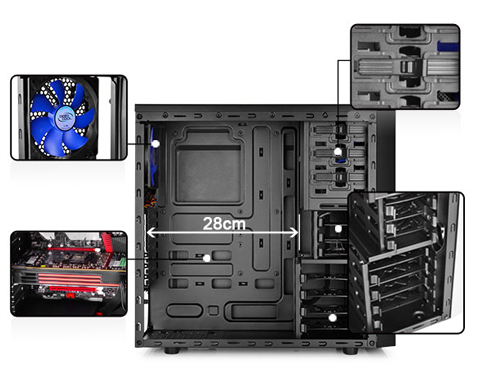

Great Compatibility for Multiple Installations

Innovative Design for DIY Usage

ODD installation tool-free design.

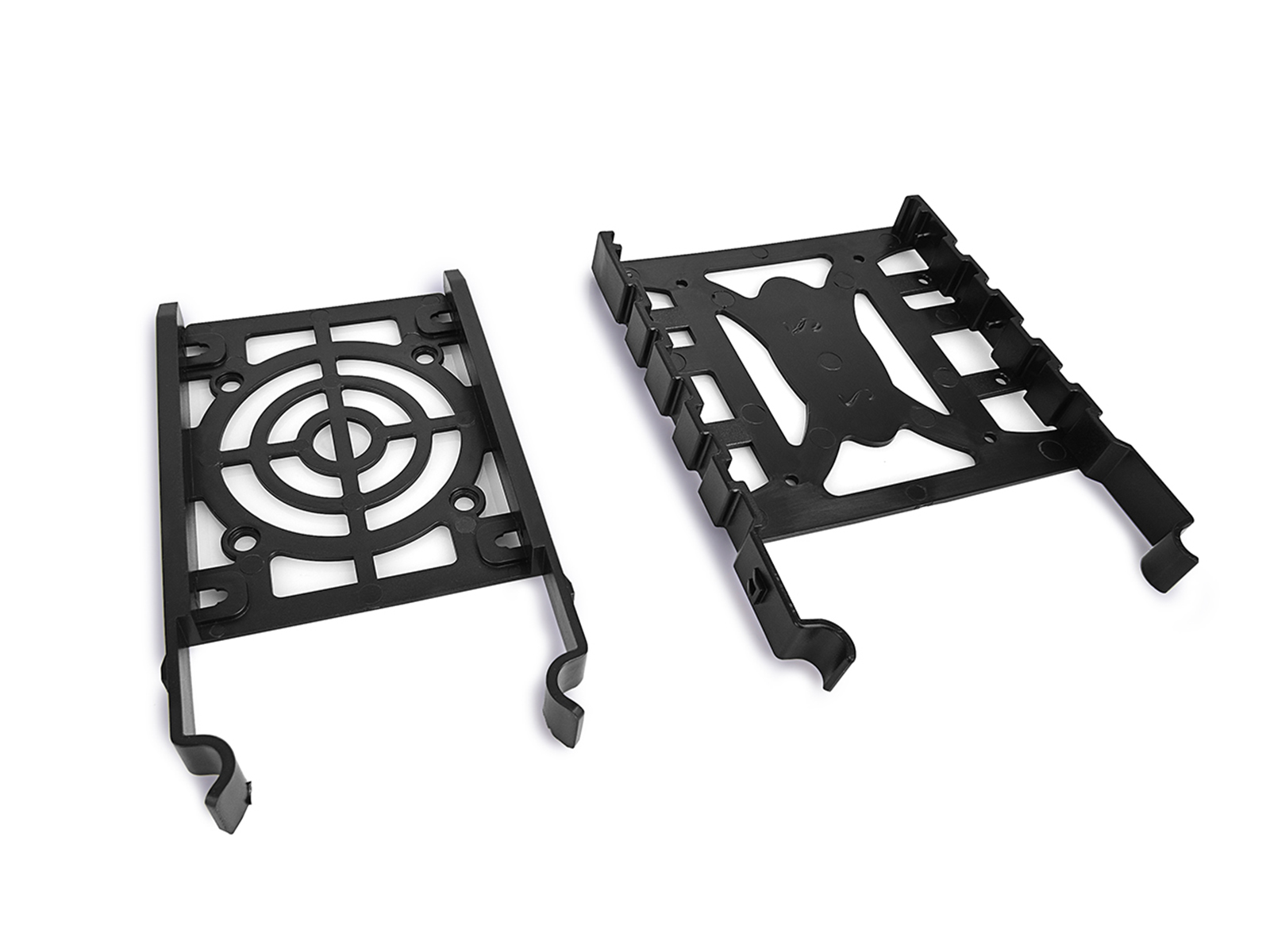

2.5HDD/SDD and 3.5 HDD installation tool-free design
Pre-installed one DC fan on the rear.
High VGA card and CPU cooler
installation compatibility.

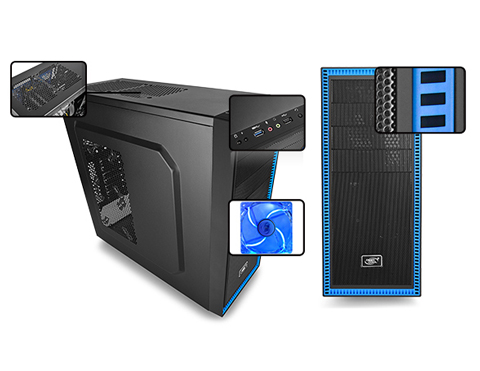

Ultimate Heat Ventilation Performance

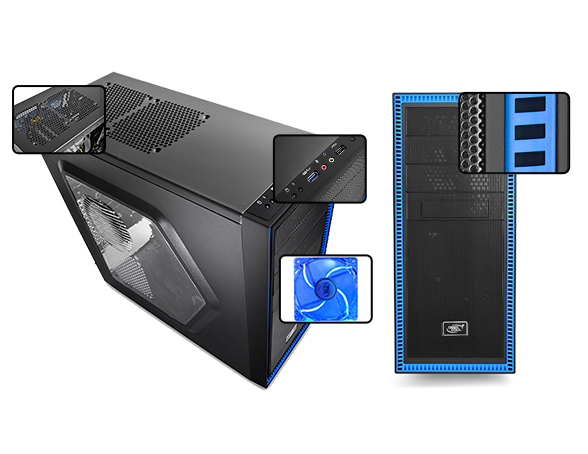

Top Panel Refinement

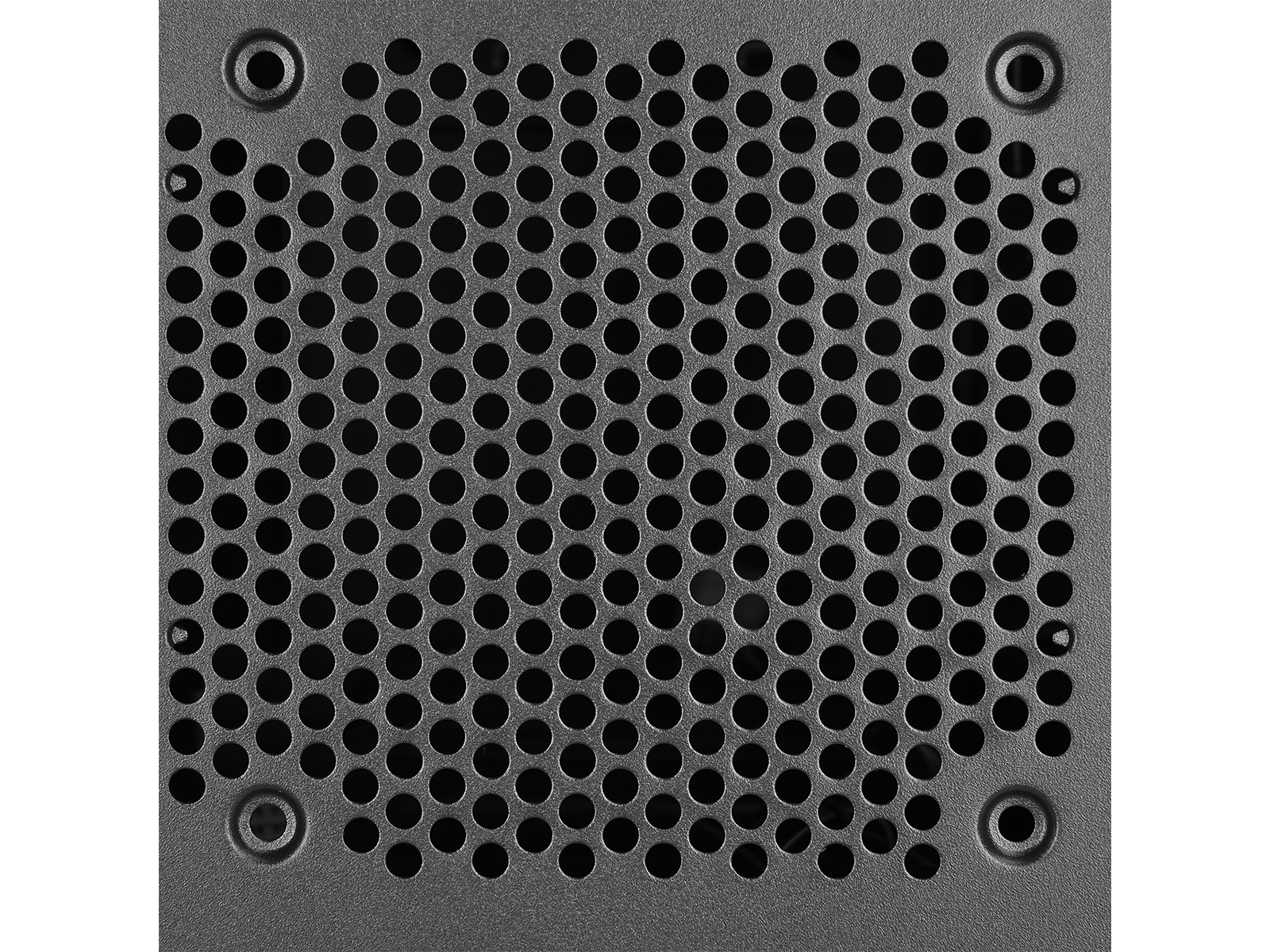

Dust-filter in the top panel.

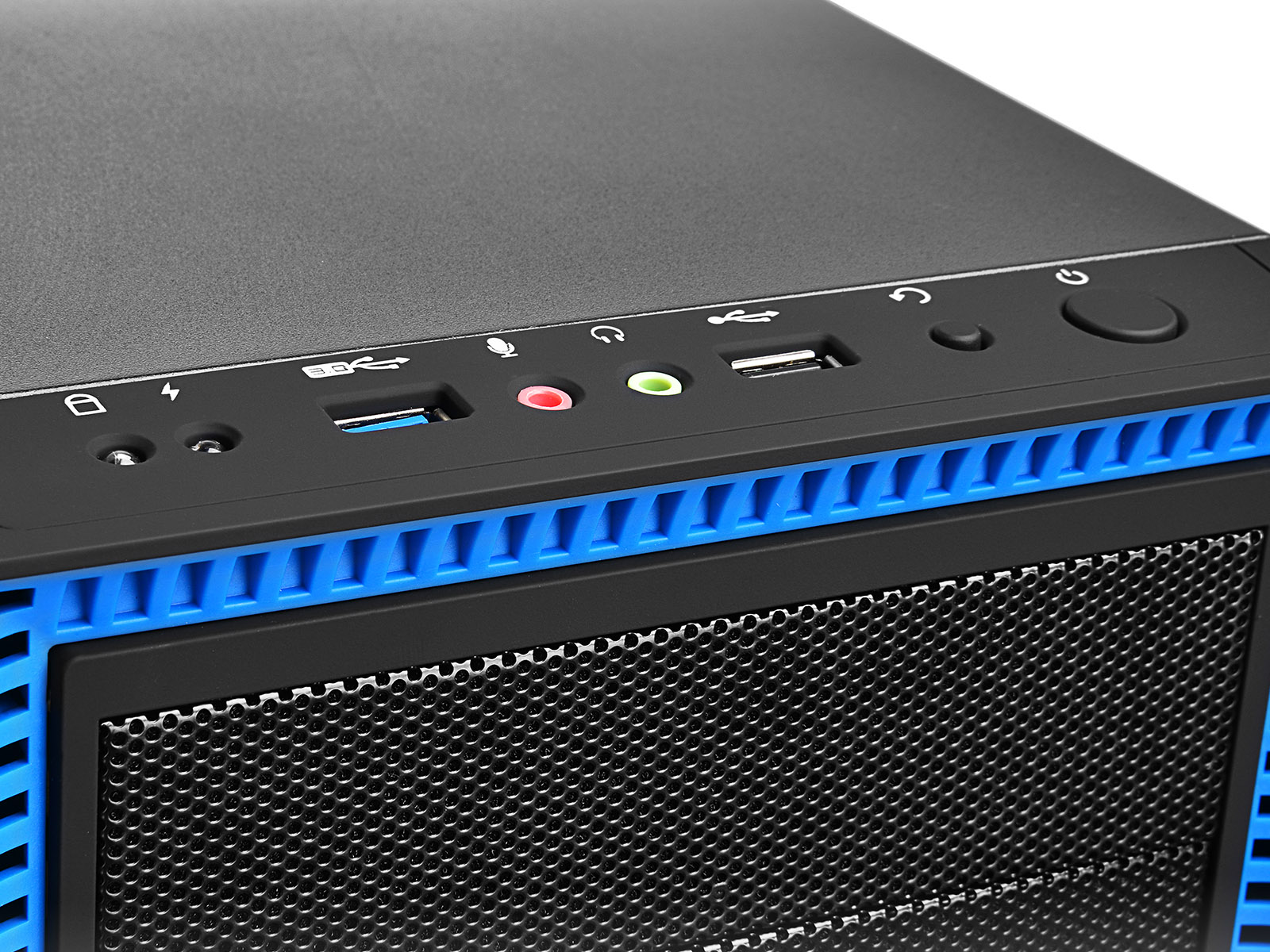

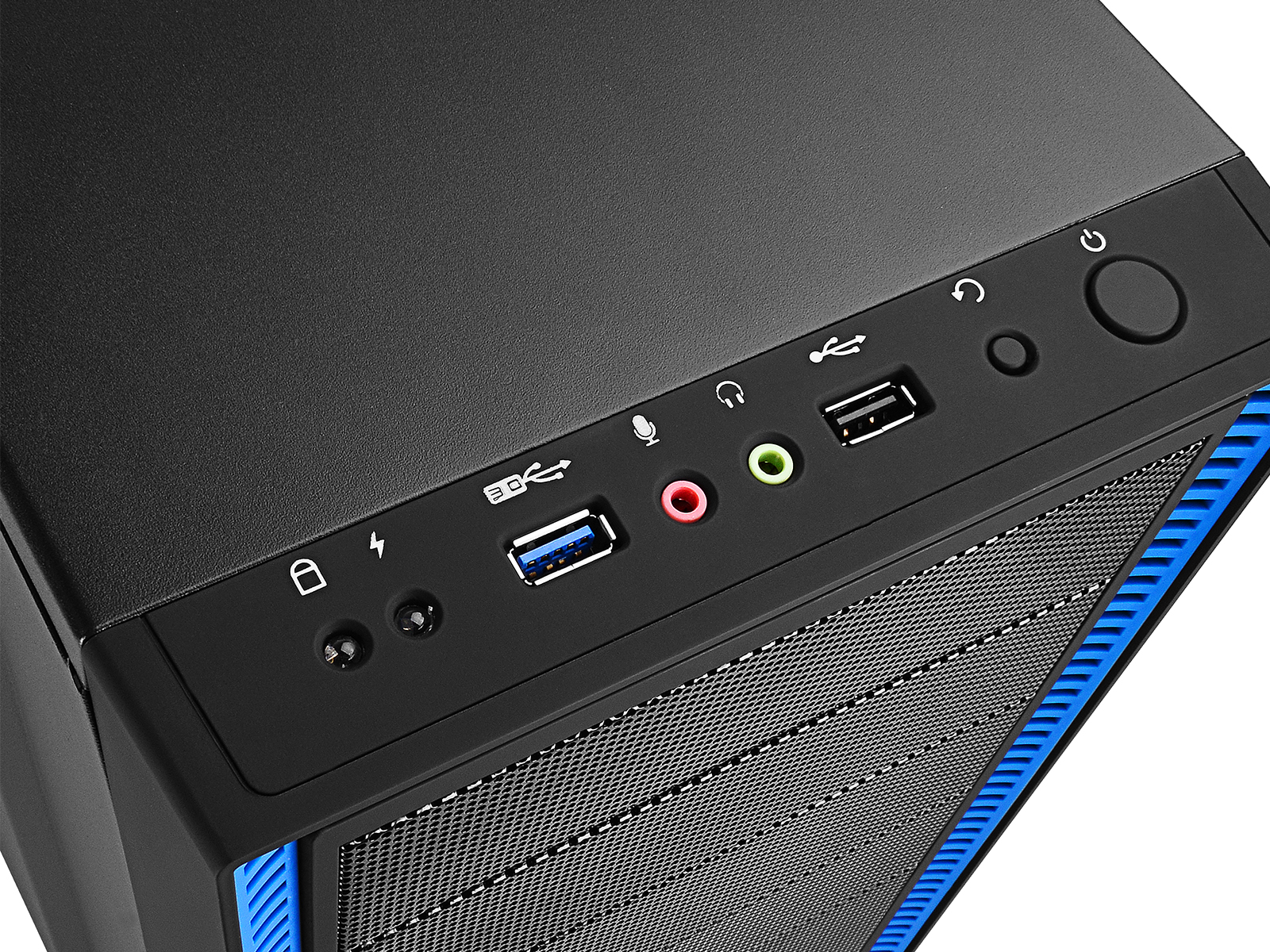

USB ports, plugholes and switches
on top panel for easier operation.
Full dust-filter in the interior panel.

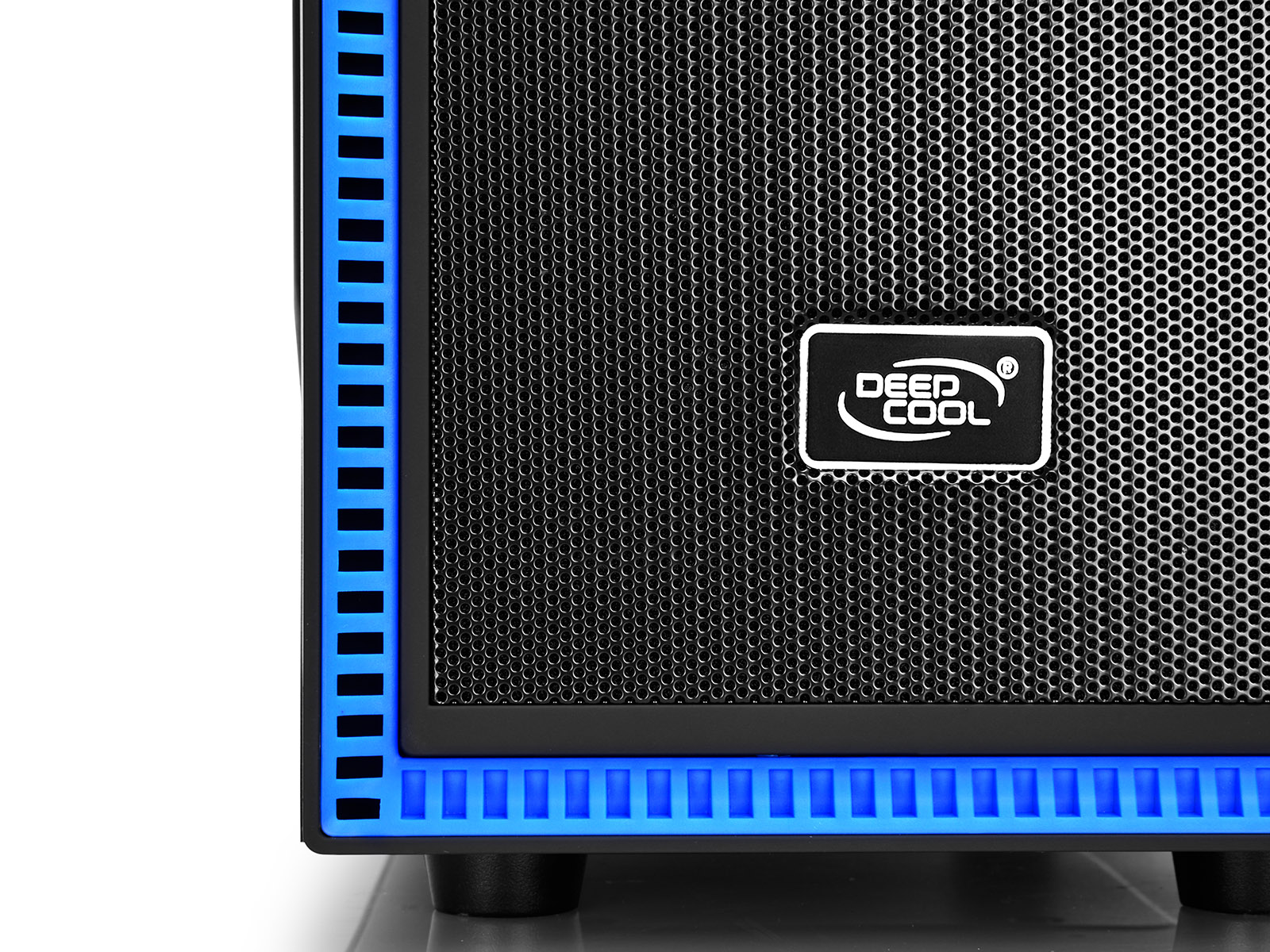

Patented air intake channel on the perimeter of the front panel.
High-quality rubber coating.

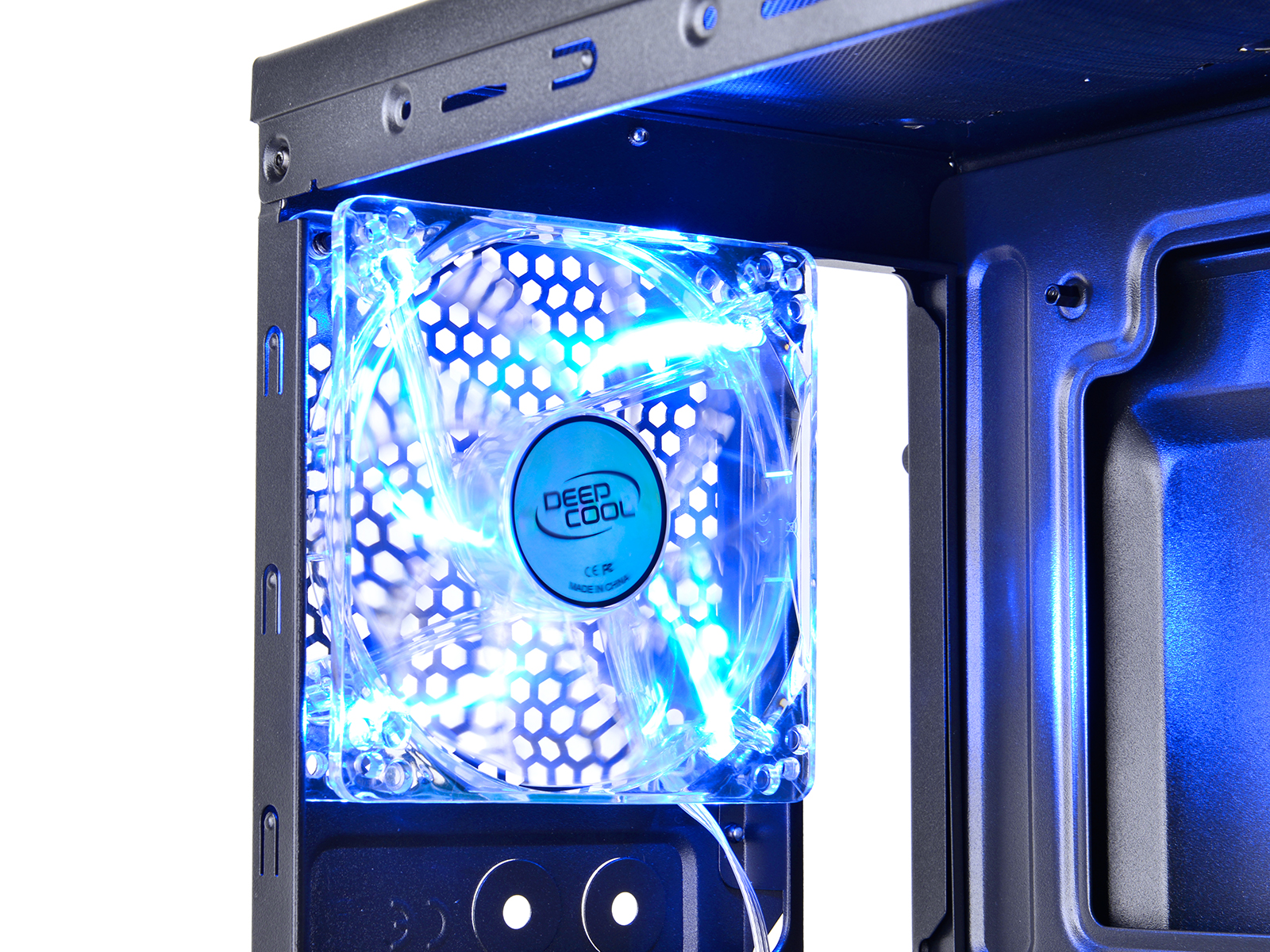

Pre-installed Blue LED fan in the
Front panel.

Maximum Space Capacity Management

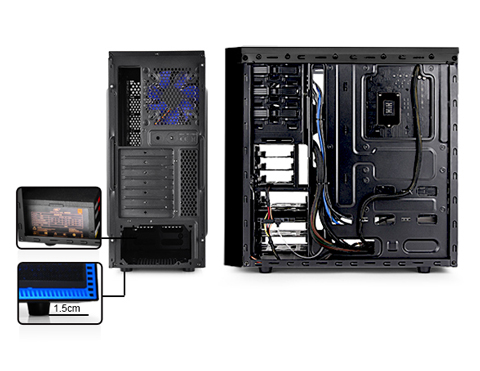

PSU Protective Approaches

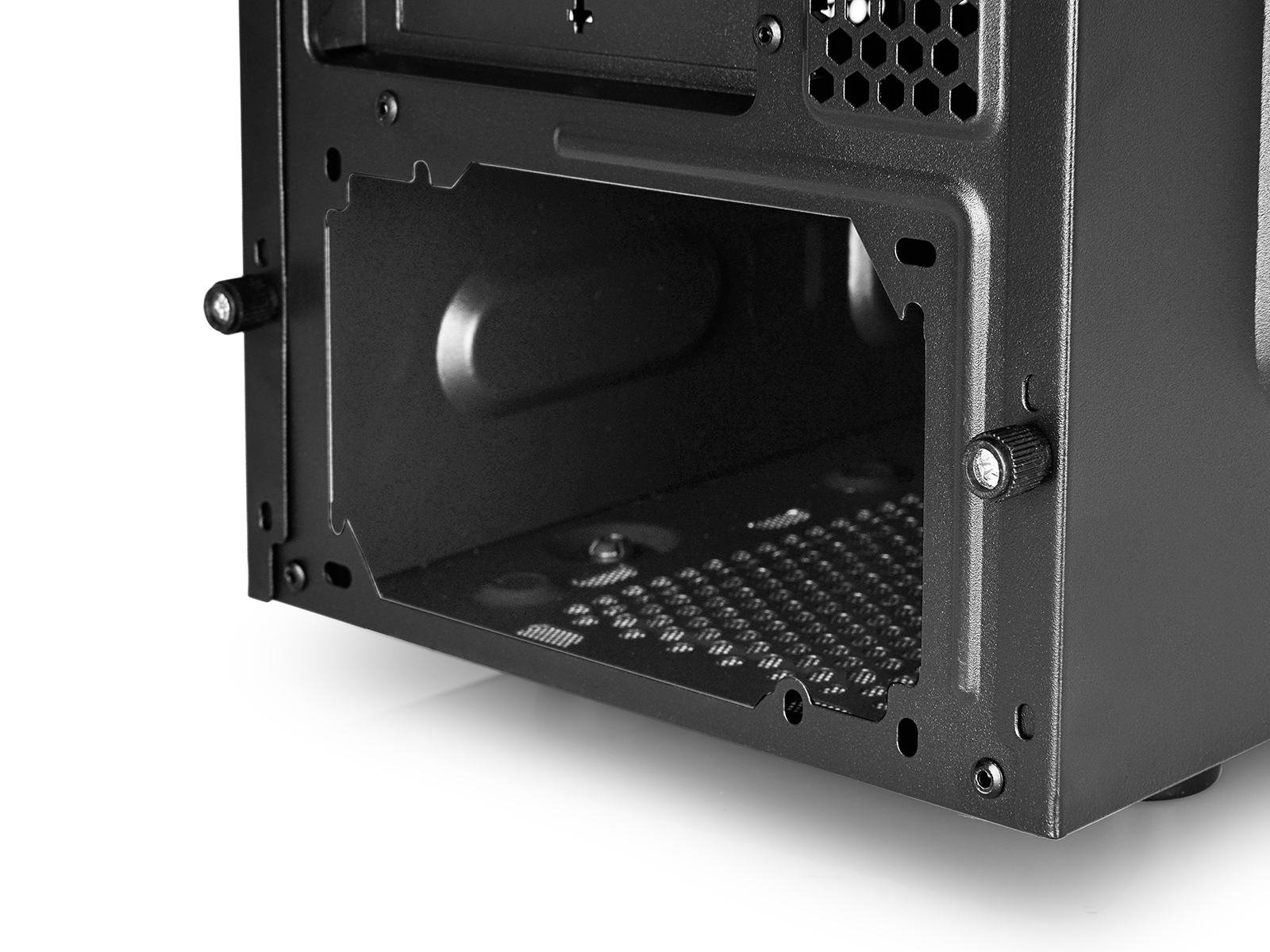

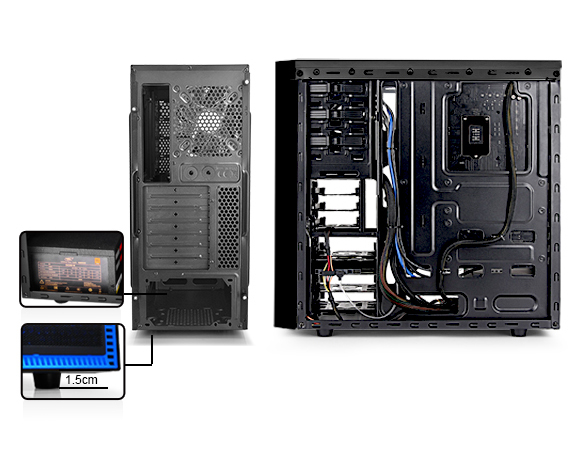

Bottom located PSU for better space management.
Ground-lifted design for better air dynamic and cooling performance of PSU fan's air intake.

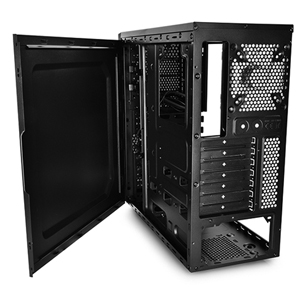

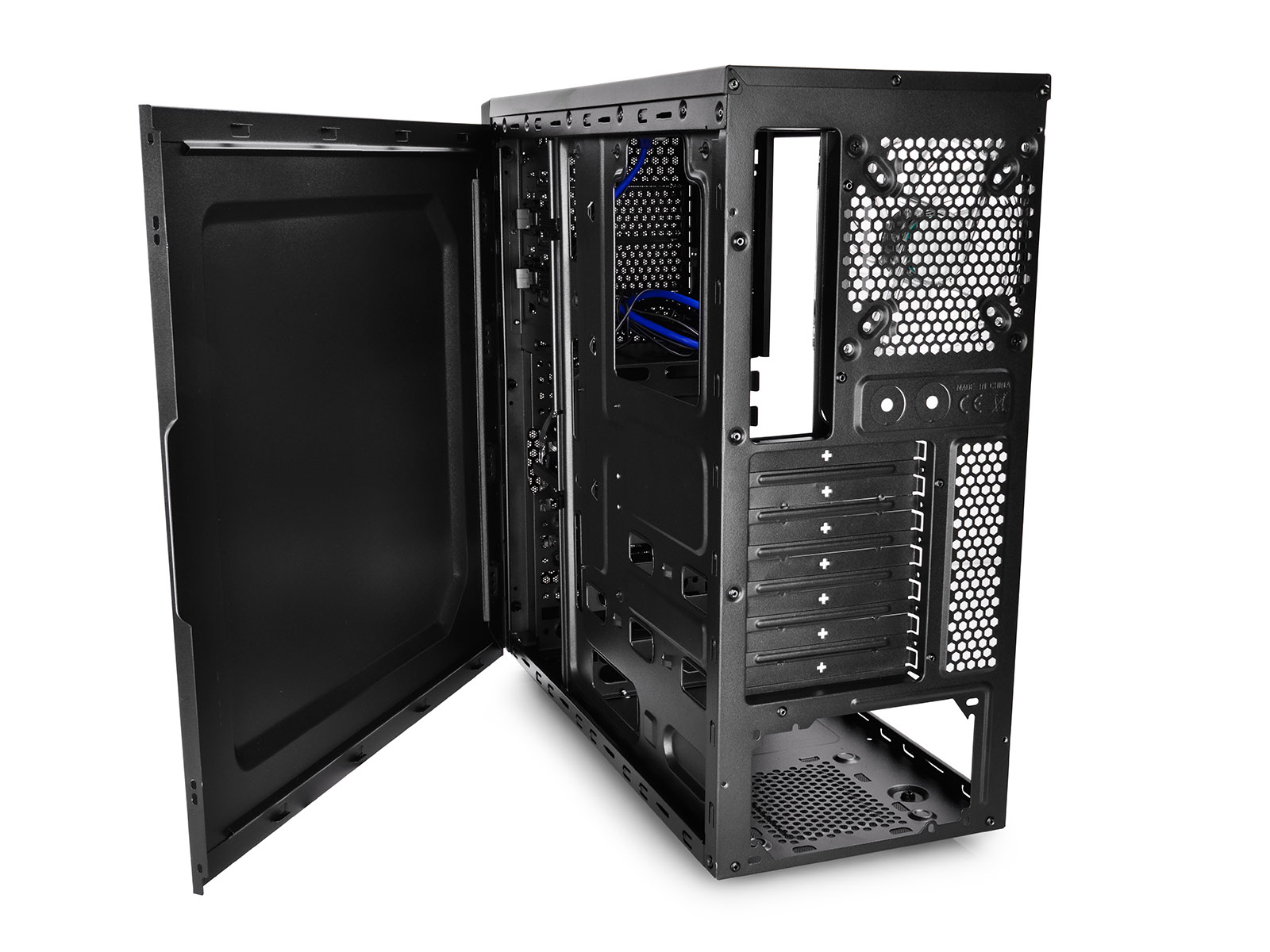

Backplate Cable Installation

Multiple channels for supreme cable management.

Technical Spec

Motherboards	ATX/MINI ATX/MICRO ATX/MINI-ITX
Materials	SPCC+PLASTIC+RUBBER COATING(Panel thickness: 0.7mm)

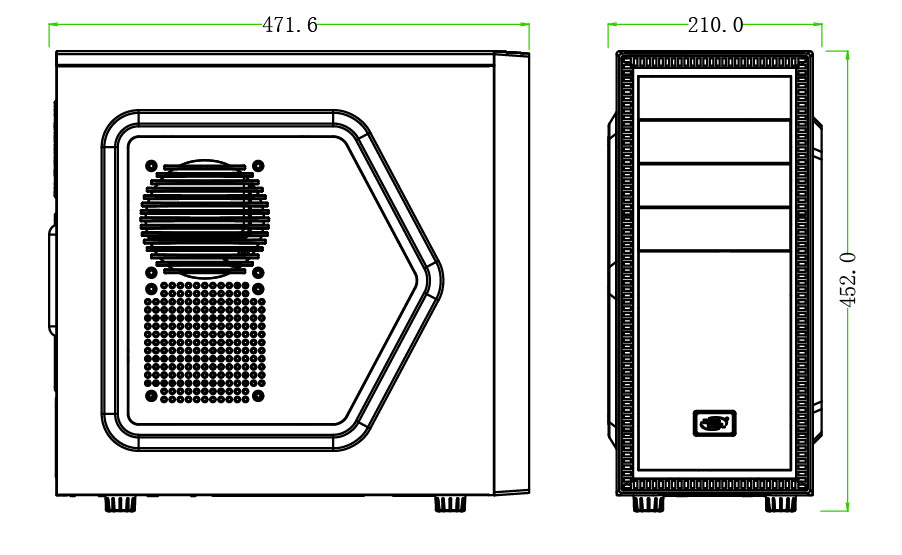

Dimension (LxWxH)	472210454mm
Net Weight	5.1kg
5.25" Drive Bays	2 (all tool-free installation)
3.5" Drive Bays	4 (all tool-free installation)
2.5" Drive Bays	3 (all tool-free installation)
I/O Panel	1×USB3.0/1×USB2.0/Audio×1/Mic×1
Expansion Slots	7
Cooling Fans	Rear: 1 X 120mm LED fan;Rear: 1 X 120mm LED fan Front: 1 X 120 mm LED fan Optional Top: 2 X 120mm Side: 2 X 120mm
Power Supply Type	ATX PS2
CPU Cooler Compatibility	165mm
VGA Compatibility	310mm
