Introduction

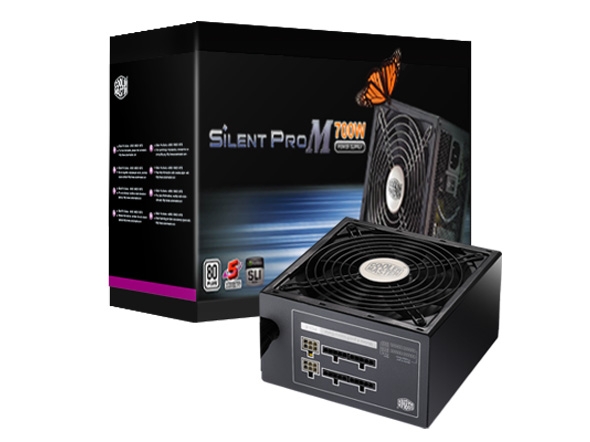

Silent Pro M series delivers up to 50A of power on a single +12V rail, enough power to start up a car. Ample connectors including PCI-e 6 + 2 pins ensure compatibility with the latest high-end systems. The power supply operates at minimal noise levels thanks to Cooler Master’s silent formula. This silent formula which comprises of patented hybrid copper plus aluminum heat sink, anti-vibration padding and intelligent fans.
Features
Up to 50A on a single +12V rail
Eco-design for energy and money saving by Active PFC.(>0.9)

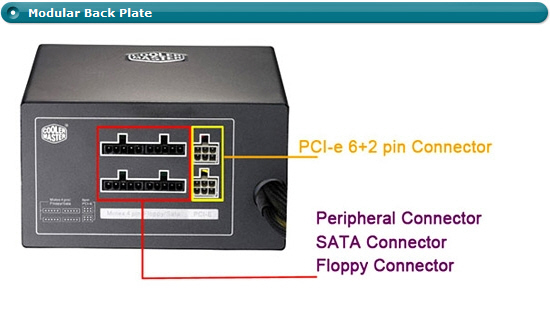

Flat modular cables to eliminate clutter and improve chassis airflow
Two 6+2 pin PCI-e connectors for multiple high-end graphic card set ups

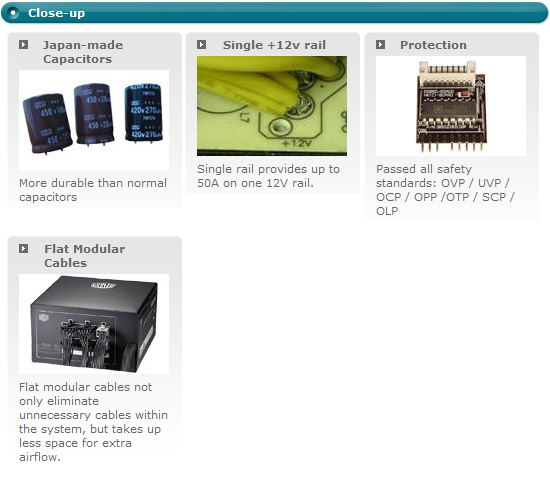

Japanese-made capacitors
Energy efficient design that meets 80 Plus requirements

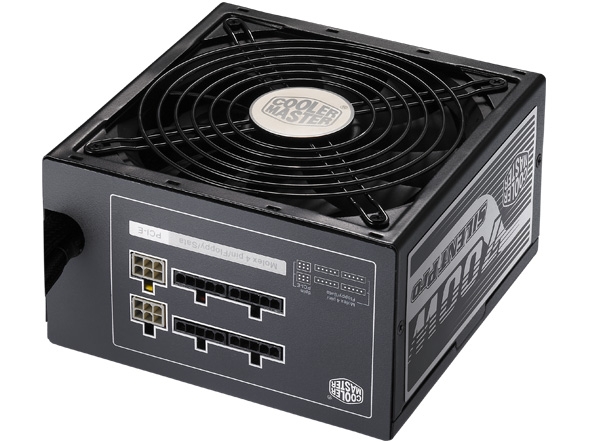

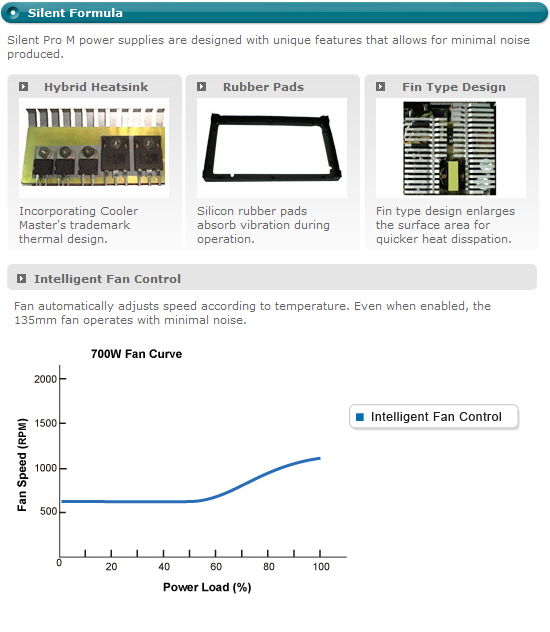

Intelligent 135mm fan speed control

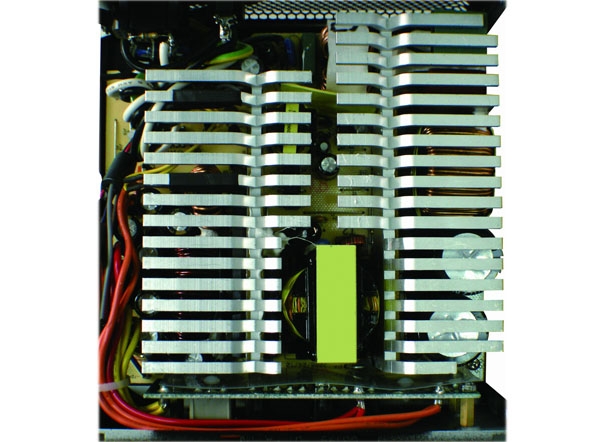

Hybrid copper plus aluminum heat sink
Anti-vibration silicon padding
Protection: OVP / UVP / OCP / OPP /OTP / SCP / OLP
High Power Density (150*150*86 mm)
High reliability (MTBF > 100,000 hrs)
Compliant with Intel standard Intel ATX12V V2.3 & SSI EPS 12V V2.91
Specifications
| Model |
RS-700-AMBA-D3 |
| |
| Type |
Intel ATX12V V2.3 ? SSI EPS 12V V2.91 |
| |
| Dimension (W / H / D) |
150(W) x 86(H) x 150(L) (mm) |
| |

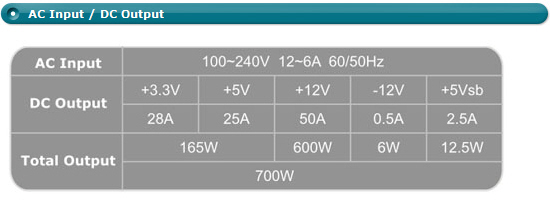

| Input Voltage |
90~264V (Auto Range) |
| |
| Input Current |
12A@115Vac, 6A@230Vac |
| |
| Input Frequency Range |
47~63Hz |
| |
| PFC |
Active PFC >0.9 |
| |
| Power Good Signal |
100~500ms |
| |
| Hold Up Time |
>17ms |
| |

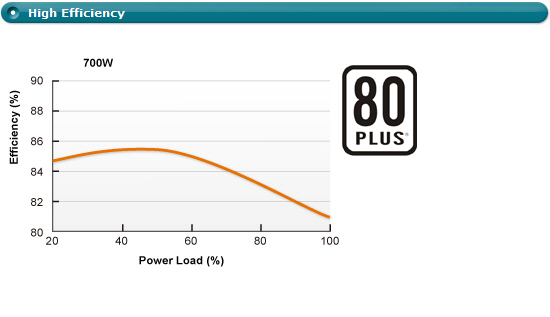

| Efficiency |
85% Typically |
| |
| MTBF |
>100,000hrs |
| |
| Protection |
OVP/ UVP/OCP/OPP/OTP /SCP/ OLP |
| |
| Output Capacity |
700W |
| |
| Max. Output Capacity |
840W |
| |
| Operation Temperature |
0~40°C (Nominal Input Voltage) |
| |
| Regulatory |
NEMKO / TUV / CE / GOST / C-tick / / UL / FCC |
| |
| Fan |
135mm ultra silent fan |
| |
| Certifications |

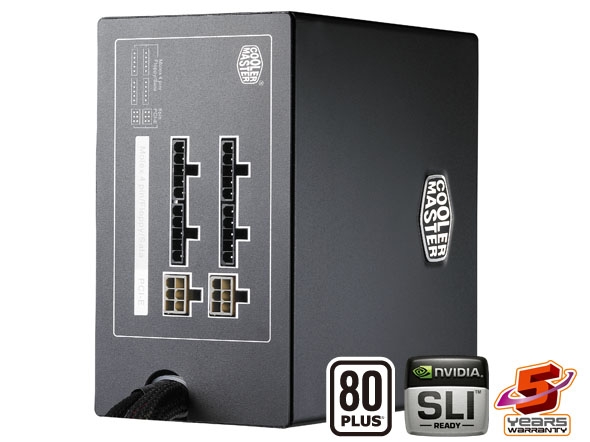

SLI / 80 Plus |
| |

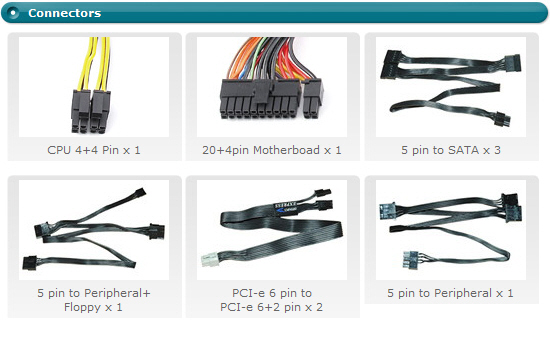

| Connector |
M/B 20+4 Pin Connector x 1
CPU 4+4 Pin x 1
PCI-E 6+2 Pin x2
4 Pin Peripheral x 5
SATA x 9
4 Pin Floppy x 1 |
