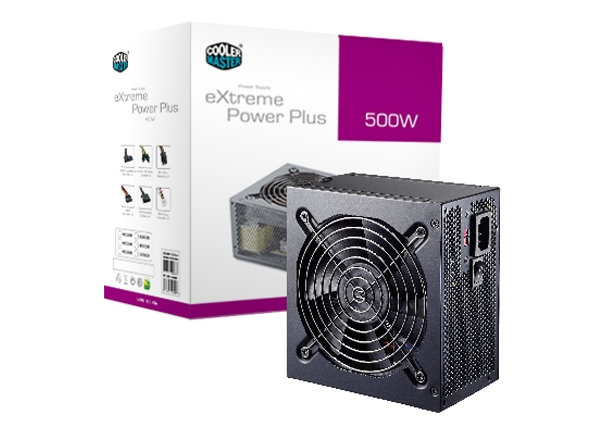

CoolerMaster PSU Extreme Plus 500W PPFC 120mm

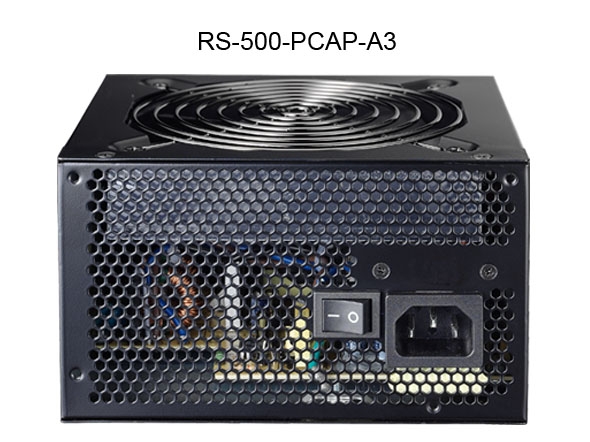

[RS-500-PCAP-A3]
№: ++981
Manufacturer: CoolerMaster
CoolerMaster PSU Extreme Plus 500W PPFC 120mm
1. Compliance with the newest Intel standard ATX 12V V2.3
2. More than 70% better efficiency at typical load operation
3. High reliability (MTBF > 100,000 hrs)
4. Green power design to meet Energy Star and Blue Angel requirements
5.?Multiple protection design(OVP/OCP/OPP/SCP)
6. Support dual +12V1 and +12V2 outputs for higher power usage
7-Two-year warranty
Specifications
| Model | RS-500-PCAR-A3 / RS-500-PCAP-A3 |
| Type | Intel Form Factor ATX 12V V2.3 |
| Dimension (W / H / D) | 150 x 86 x 140 mm |

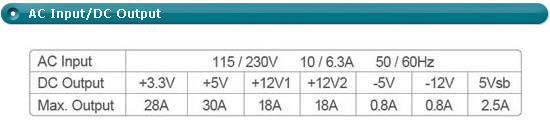

| Input Voltage | RS-500-PCAR-A3 / 90 ~132V/180~264V (Selectable) RS-500-PCAP-A3 / 180~264 V |
| Input Current | RS-500-PCAR-A3 : 10A @ 115Vac / 6A @ 230Vac RS-500-PCAP-A3 : 6A @ 230Vac |
| Input Frequency Range | 47 ~ 63 Hz |
| PFC | None PFC: RS-500-PCAR-A3 Passive PFC: RS-500-PCAP-A3 |
| Power Good Signal | 100 ~ 500 ms |
| Hold Up Time | > 17 ms |
| Efficiency | >70% Typically |
| MTBF | >100,000 hrs |
| Protection | OVP / OCP / OPP / SCP |
| Output Capacity | 500 Watts |
| Operation Temperature | 0~40°C Nominal Input Voltage? |
| Regulatory | Nemko / TUV / cUL / CE / BSMI /FCC / C-tick / CCC (Passive Model Only) |
| Fan | Sleeve bearing 120mm fan |

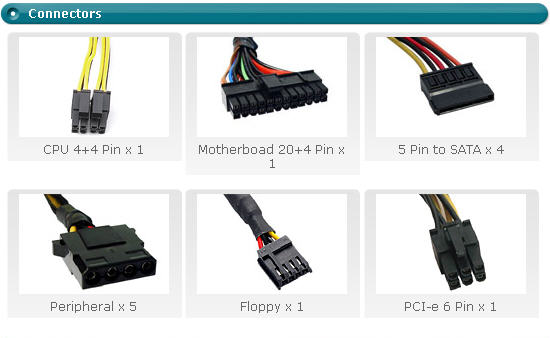

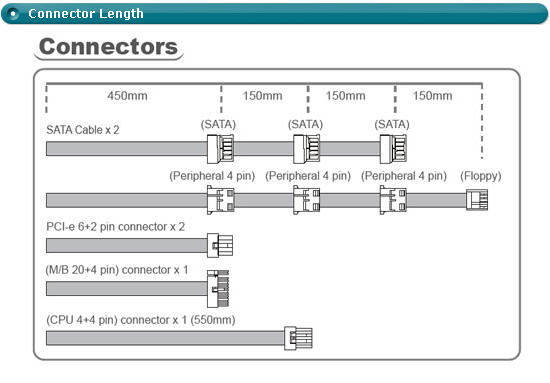

| Connector | M/B 20+4 Pin x 1 CPU 4+4 Pin x 1 PCI-E 6 Pin x 1 4 Pin Peripheral x 5 SATA x 4 4 Pin Floppy x 1 |
