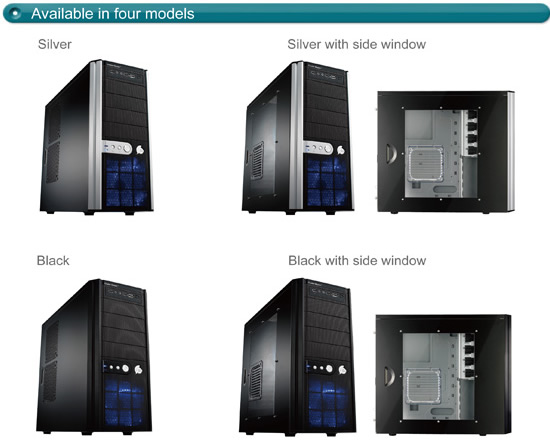

| Available Color |
Black / Silver |
|
| Material |
Body: Steel
Bezel: Aluminum, Mesh and Plastic |
|
| Dimension (W / H / D) |
202 x 440 x 485 mm
8.0 x 17.3 x 19.1 inch |
|
| Weight |
Net Weight: 7.5 kg / 16.5 lbs
Gross Weight: 9.2 kg / 20.28 lbs |
|
| M/B Type |
Micro-ATX / ATX |
|
| 5.25" Drive Bay |
4 (without the use of exposed 3.5”drive bay) |
|
| 3.5" Drive Bay |

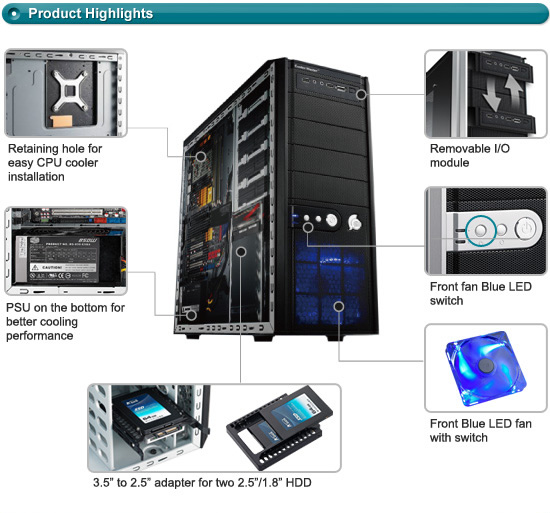

5 Hidden (one could be converted to two 2.5” /1.8“ HDD / SSD)
1 Exposed (converted from one 5.25” drive bay) |
|
| I/O Panel |
USB 2.0 x 2 , eSATA x 1 , MIC x 1 , Audio x 1 (supports HD / AC97 audio)
|
|

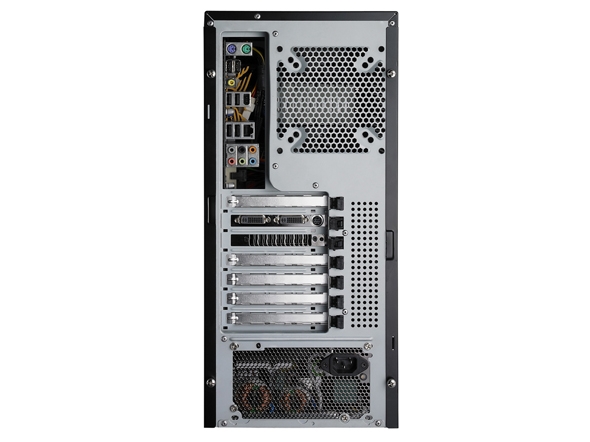

| Expansion Slots |
7 |
|

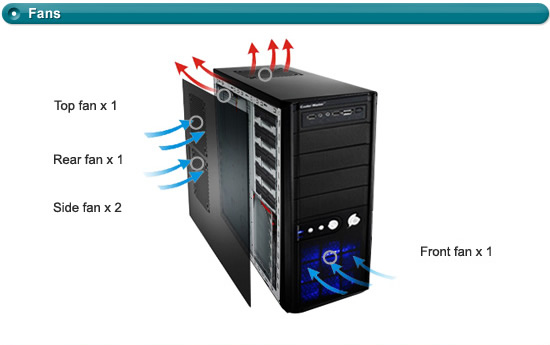

| Cooling System |
Front: 140 x 25 mm Blue LED on /off fan x 1 / 1200 RPM / 19 dBA
Rear: 120 mm fan x 1 / 1200 RPM / 17 dBA
Top: 120 / 140 mm fan x 1 (optional)

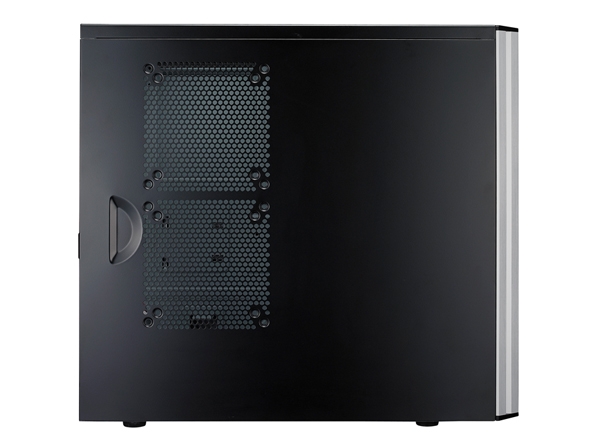

Side: 120 / 140 mm fan x 2 (optional) |
|
| Power Supply |
Standard ATX PS2 / EPS 12V (optional) |
