Introduction

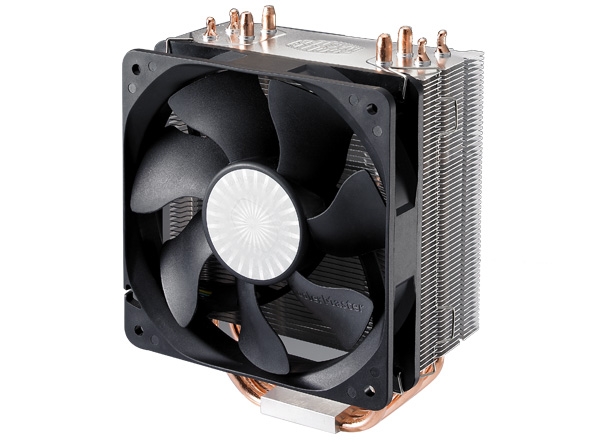

Succeeding the popular Hyper 212, the Hyper 212 Plus carries on the legacy of providing a great balance of performance and noise level during high and low speed operations.
Hyper 212 Plus is Cooler Master's first cooler to be equipped with an all-in-one mounting solution that includes LGA 1156 and 1366. Direct Contact heat-pipe is now also utilized in this latest update.
Features
- Well-balanced cooling performance:
- Computer aided heatsink design provides fin optimization with perfect balance between high and low speed operation.

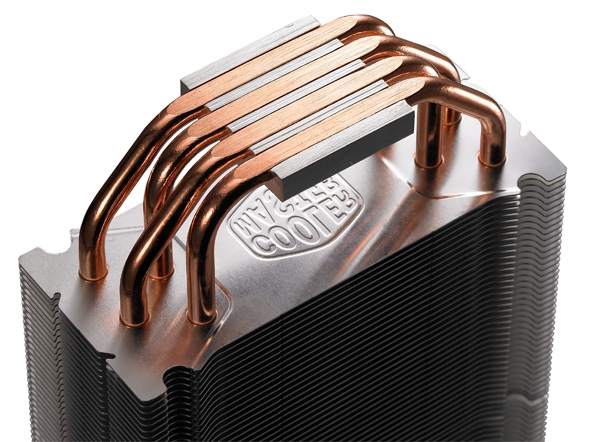

- 4 x Direct Contact heat-pipes for seamless contact between CPU surface and cooler.

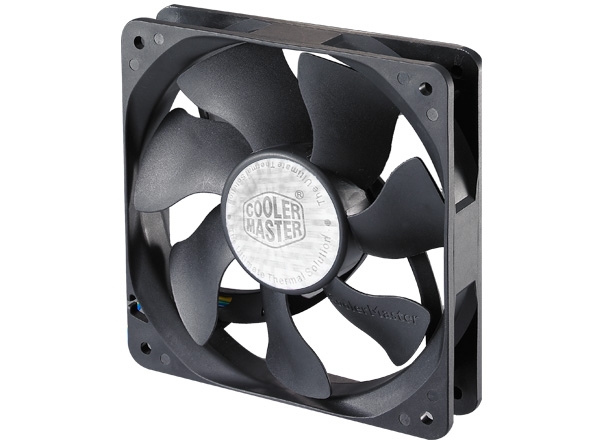

- Wide-range PWM fan with unique blade design for excellent airflow.

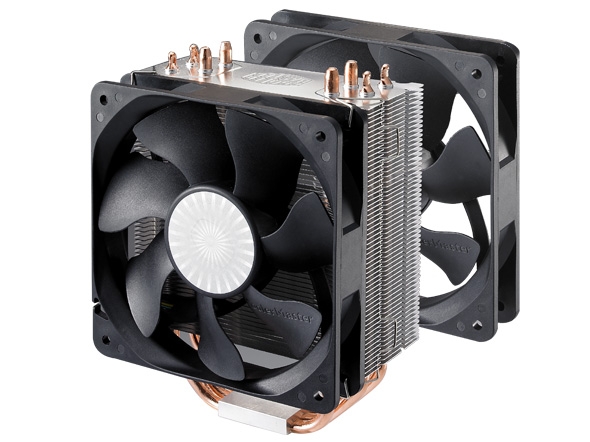

- Upgradable to dual fans and swapping of fans with extra fan-clips included.
- Fan mounting using clips for easy installation and swapping.

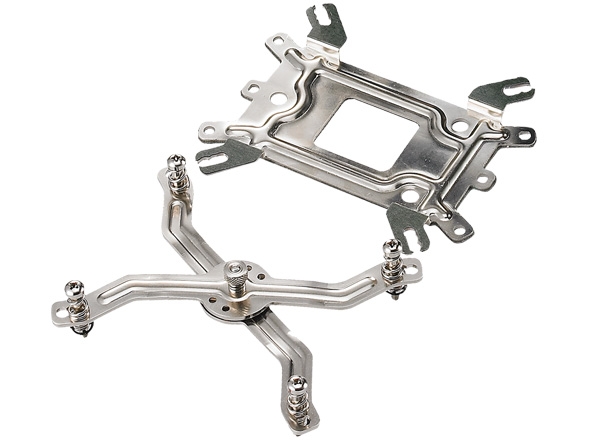

- Versatile all-in-one mounting solution for Intel Socket LGA775/1156/1366 and AMD Socket AM2/AM2+/AM3.
- Silent operation with minimal noise level at 13 dBA.
- Excellent airflow design with compact heatsink dimension.
2D Drawing
Specifications
| CPU Socket |
Intel:
LGA1366 / 1156 / 775
AMD:
AM3 / AM2+ / AM2 |
| |
| CPU Support |
Intel
Core™ i7 Extreme / Core™ i7 / Core™ i5 / Core™ i3 / Core™2 Extreme / Core™2 Quad / Core™2 Duo / Pentium / Celeron
AMD
Phenom™ II X4 / Phenom™ II X3 / Phenom™ II X2 / Phenom™ X4 / Phenom™ X3 / Athlon™ II X4 / Athlon™ II X3 / Athlon™ II X2 / Athlon™ X2 / Athlon™ / Sempron™ |
| |
| Dimension |
120 x 79.7 x 158.5 mm (L x W x H) |
| |
| Weight |
626g |
| |
| Heat Sink Material |
Aluminum fin / 4 heat pipes |
| |
| Fan Dimension (W / H / D) |
120 x 120 x 25 mm |
| |
| Fan Speed |
600 - 2000 R.P.M. (PWM) |
| |
| Fan Airflow |
21.2 - 76.8 CFM |
| |
| Fan Air Pressure |
0.40 - 3.90 mmH2O |
| |
| Bearing Type |
Long life sleeve |
| |
| Fan Life Expectancy |
40,000 hours |
| |
| Fan Noise Level (dB-A) |
13 - 32 dBA |
| |
| Connector |
4-pin |
