Arctic Accelero S1 Rev.2
[Accelero S1 Rev.2]

Каталожен №: ++327   Производител: Arctic

Описание:

Характеристики:

Application:
ATI Radeon HD 5870*,4890,4870,4850
nVIDIA GeForce GTS250*, 9800GTX+*, 9600GT*

ATI Radeon
HD 5870*
HD 4890*, 4870*, 4850*, 4830*
HD 4730, 4670, 4650
HD 4550, 4350
HD 3870*, 3850
HD 3690, 3650
HD 3470, 3490
HD 2900*, 2600, 2400
X1950*, X1900* series
X1800, X1650 series
X1600, X1550 series
X1300 series

nVIDIA GeForce
GTS250*, GT240*, GT220* (not LP)
210*, GTS150* (not LP), GT130* (not LP)
GT120 (not LP)
9800GTX+*, 9800GTX*, 9800GT*
9600GT*, 9600GSO*
9500GT (not LP), 9400GT (not LP)
8800GTS(G92)*,8800GT*,8800GS*
8600GTS, 8600GT
8500GT (not LP), 8400GS (not LP)
7950GT*, 7900*, 7800*, 7600
7200GS (TC), 7100GS (TC)
6800, 6600 series

Please check your card with the height restriction drawing to assure compatibility.

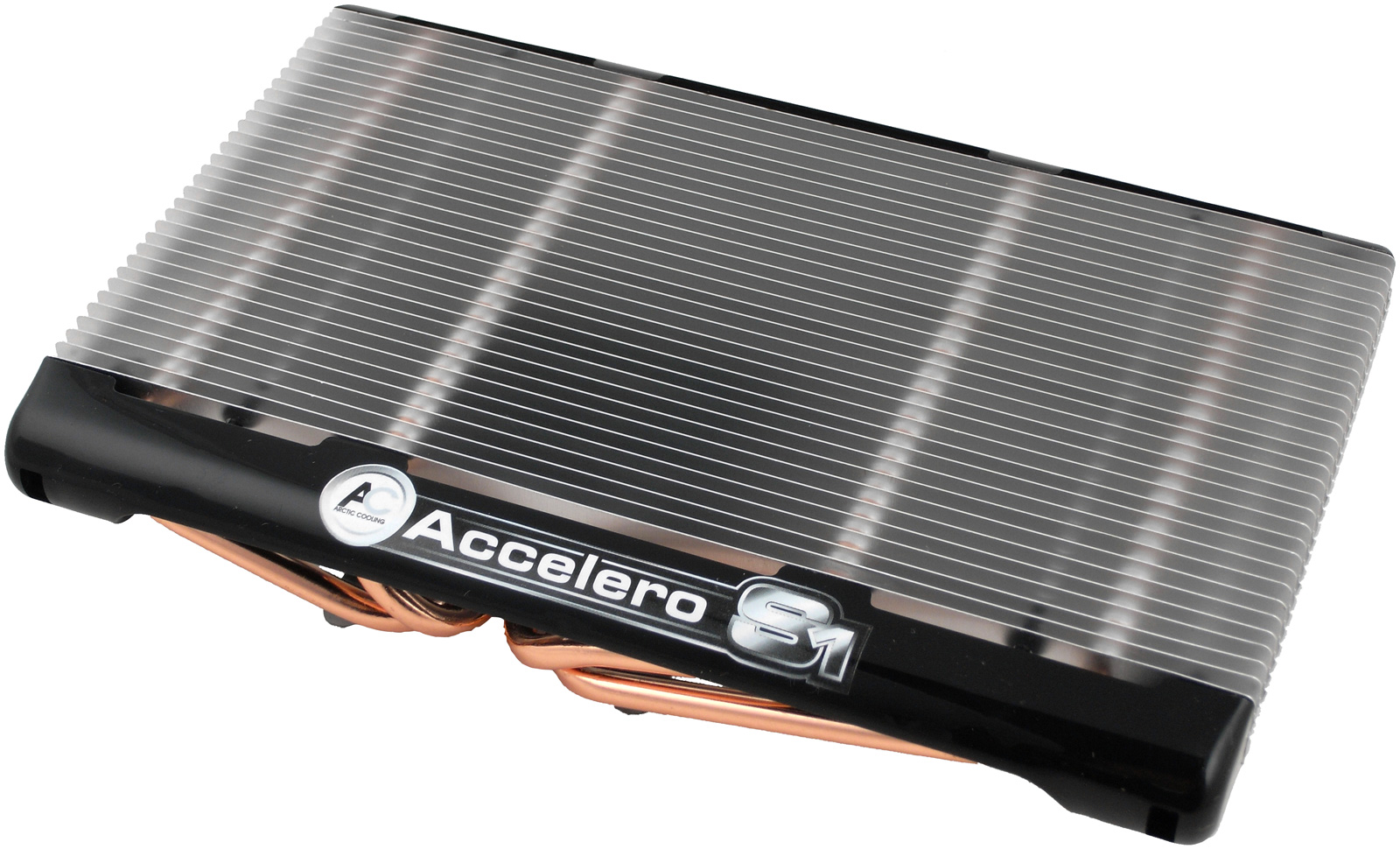

The award winning passive VGA cooler extends its compatibility to the latest graphic cards
The Accelero S1 Rev. 2 dramatically extends the compatibility to many of the latest graphic cards. It supports high-end to main stream graphic cards including the latest hot selling Radeon HD 3870, 3850 , GeForce 8800GTS (G92) and 8800GT.

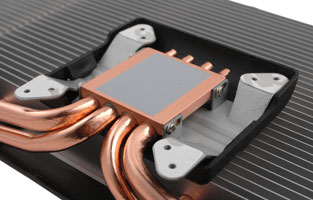

The Accelero S1 Rev. 2 now comes with a new flexible mounting mechanism, multiple screw hole sets and modifications to the heatpipes enabling it to fit a wider range of leading graphic cards. As a result more gamers can benefit from adopting the Accelero S1 Rev. 2 which dramatically improves their gaming experience.

.

To provide passive cooling for high-end graphic cards, Accelero S1 Rev. 2 is a high performance passive cooler featuring 4 heatpipes connected with extra large surface area. It effectively removes a great deal of heat from the graphic cards keeping the components cool. Thanks to the elegant design, Accelero S1 Rev. 2 outperforms active cooling solutions. Accelero S1 Rev. 2 creates a true industry leading zero noise cooling solution for all enthusiast gamers.

• Noiseless Cooling
• 4 Heat Pipes
• Special Heat Spreader for Voltage Regulator Cooling
• Memory Cooling
• High Reliability
• Low Weight

The cold air is drawn from outside to cool the fins directly:

The fins design optimize for air ventilation that enhance cooling performance:

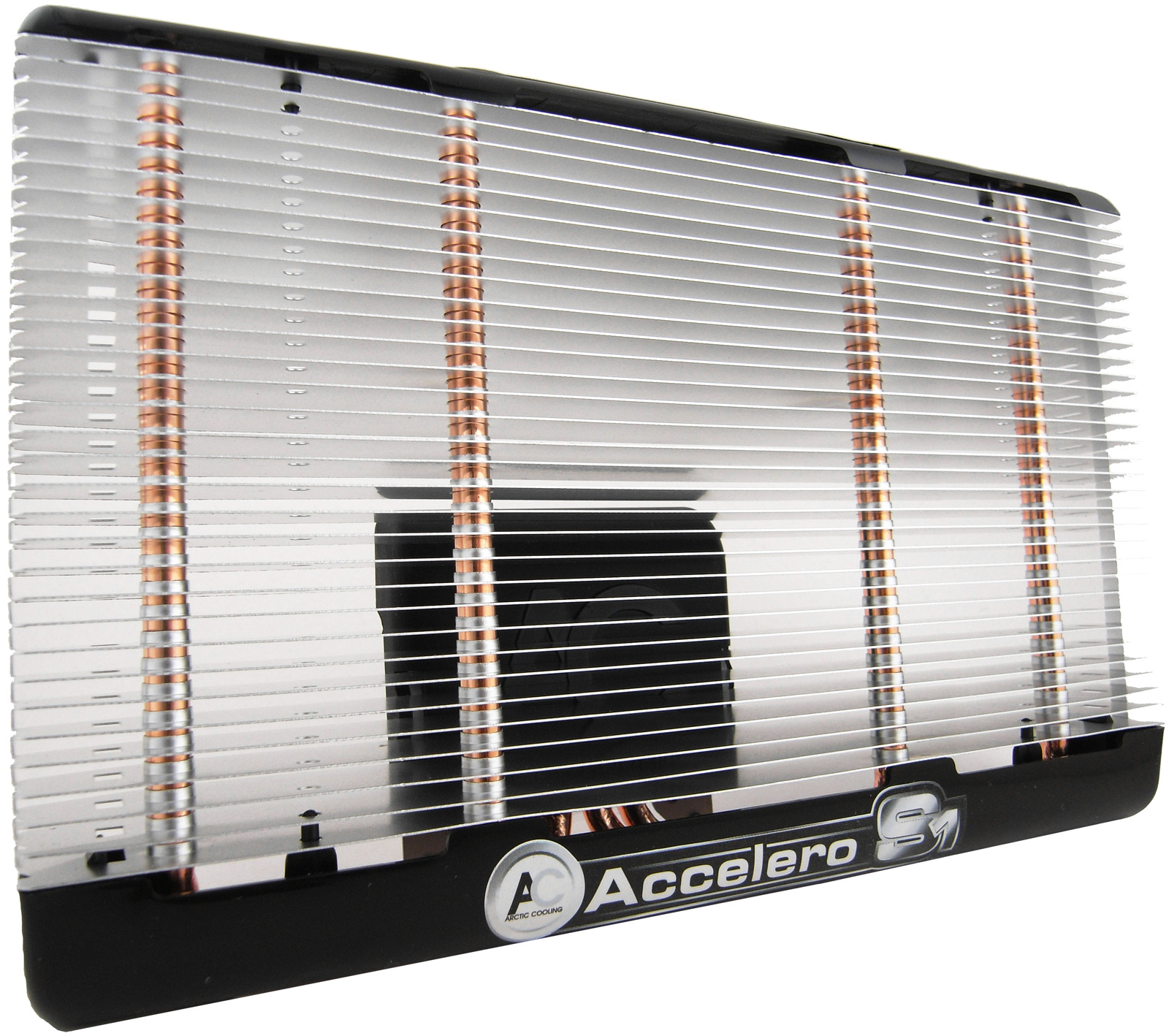

Accelero S1 Rev. 2 features 4 thick copper heatpipes which connect directly from the GPU core. The heatpipes with sintered powder wicks provide ultimate heat conductivity. Heat from the GPU is rapidly dissipated through 32 fins that extend beyond the height of the graphic card. Optimized fin design allows better air flow thus removing the heat more effectively. Together with the bundled RAM heat sinks and voltage regulator heat spreader, Accelero S1 Rev. 2 provides an all-round passive solution that achieves the best cooling performance.

Noise Level:

Temperature o­n ATI X1950Pro:

Never compromised o­n noise
Install and forget about it – No moving parts means it is maintenance free. An extra pair of mounting clips provides extensive protection to the graphic card that prevents damage from improper handling. With the help of the new mounting design, Accelero S1 Rev. 2 is widely compatible with high end ATI and nVIDIA graphic cards.

Accelero S1 Rev. 2 can still be paired with the Turbo Module – the twin fans add-on, which further increases the potential power of Accelero S1 Rev. 2 with enhanced cooling performance under extremely quiet operation. Turbo Module helps boost up the GPU and memory overclockability, squeezing more graphic performance than ever before.

		01/2008 PCSPACE: Accelero S1 Rev.2 We was really surprised with new Accelero S1 Rev. 2 cooling performance, even with new GeForce 8800GTS. With additional Turbo Module is this cooler unbeatable and when we look at his price, we must give him an TOP Product award. Good work.
09/2007 Silenthardware.de Arctic Cooling zeigt mit dem Accelero S1 eindrucksvoll, dass absolute Topkühler nicht zwangsweise viel kosten müssen. Ohne wirkliche Schwächen präsentierte sich der Accelero S1 von der besten Seite und stürmte förmlich zum Sieg und stellt ab sofort die neue Referenz unter den Grafikkartenkühlern dar.              09/2007 Computerbase.de Arctic-Coolings Accelero S1 hat sich in Verbindung mit dem optionalen Turbo-Modul als klarer Leistungssieger aus unserem ungleichen Duell heraus kristallisieren können. Wer seine Hochleistungsgrafikkarte allerdings gut und vor allem sehr leise gekühlt wissen will, dabei nicht so tief in die Tasche greifen möchte, [...] der ist mit dem Accelero S1 für die aktuelle Beschleunigergeneration respektive dem S2 für etwas ältere Modelle bestens beraten.              08/2007 Overclock Paradise: Accelero S1 + Turbo Module The performance of S1+Turbo Module is really amazing. Each test results are leading far away. The difference between stock cooler and S1+Turbo is more than 20C. Inside the whole test, S1+Turbo Module temperature never exist 40C. For the overall performance is really not bad. Also, the S1 + Turbo Module has very less noise and impressive. It seems that the big heat fins and low rotation fan design will be the best cooling solution for high heat dissipation graphic card.              08/2007 4Gamer.net: Accelero S1 / Accelero S2 + Turbo Module Incredible cooling performance. 12C cooler than ASUS's fan-less solution and 20C cooler than Radeon HD 2600 XT GDDR4's reference cooler. Turbo Module is very useful and silent.              08/2007 DriverHeaven.net: Accelero S1 + Turbo Module The Arctic Cooling Accelero S1 is a monster of a cooler and it does deliver excellent cooling performance. Installation of the S1 was very easy, requiring little more than the attachment of 4 screws and the pre applied thermal paste is of very high quality. The ability to buy a small fan module is a real benefit and credit goes to Arctic Cooling for keeping the noise levels low. The icing o­n the cake is that the Accelero S1 is priced very competitively. The ability to buy a small fan module is a real benefit and credit goes to Arctic Cooling for keeping the noise levels low.              08/2007 hardtecs4u.com Nach diesen beeindruckenden Temperaturen bleibt eigentlich nicht mehr viel zu sagen. Das Kühlvermögen des Arctic Cooling Accelero S1 ist mit oder ohne Turbo Modul enorm hoch. [...] Die Montage des Kühlers ist durchaus leicht durchzuführen und wer keine ?linken Hände? hat sollte diese in maximal 10 Minuten erledigt haben. [...] [...] Von daher bleibt uns keine Alternative, als den Arctic Cooling Accelero S1 mit unserer einzigen Auszeichnung, dem Editors Choice Award, zu versehen.               07/2007 HardwarecrewMal wieder typisch für Arctic Cooling - kann man doch für knapp über 10 Euro einen sehr guten Kühler kaufen.[...] Die Kühlleistung ist mehr als überzeugend - vielleicht sollte gar der eingesessene Passiv-Gegner mal einen Blick riskieren. [...] Alles in allem verdient der Arctic Cooling Accelero S1/2 einschließlich dem Turbo Module mit Empfehlung unseren Preis-/Leistungs-Award.              07/2007 XtremeComputing: Accelero S1 + Turbo Module This cooler is definitely not something to be trifled with. It destroyed anything that I could compare it against, even watercooling. I would recommend the S1 without a moment’s hesitation.              07/2007 HardwareLogic: Accelero S1 A relatively inexpensive passive cooler can run a performance mid-range card like the X1950Pro is pretty impressive. What is even more attracitve is that this cooler can be had for the same price as many other popular GPU cooling products whether they are passively cooled or noisy fans.              07/2007 PCTuner.net: Accelero S1 Seen the advantage of 20°C vs the standard cooler, the points to favor of the new structure are obvious: cooler with o­ne solution to zero noise, without fans , without of maintenance.              07/2007 MADSHRIMPS: Accelero S1 The S1 doesn’t fail to impress, no matter how you look at it. The performance in complete passive mode is stunning, 56°C! With the Turbo Module installed, temperatures are at an amazing low of 44.5°C. Beating the competition by a very comfortably margin. The Arctic Cooling Accelero S1 (with/without additional Turbo Module) truly shines in our roundup.              07/2007 UNLiMiTPC.com: Accelero S1 + Turbo Module Although Turbo Module speed fan is 1500rpm, not hight speed, it could be absolutely no noice in case. We found that's good performance and noiceless.It 's stable temperature at 51c with full load.              07/2007 59 Hardware: Accelero S1 Its performances are very interesting within the framework of our tests. It is the dream, well-sure; no harmful effect is to be regretted, even with the Turbo Module installed. o­n this last our matter will be measured more, its effectiveness is quite real and undeniable.              06/2007 Custom PC: Accelero S1 Its ability to deliver what performance it can silently. This is a good job.              06/2007 Svět hardware: Accelero S1 The thermal performance of Arctic Cooling Accelero S1 and S2 speaks for itself, it is simply outstanding. The coolers are easy to install, there are heatsinks for BGA memory modules included as well as PWM area heatsinks for Radeon X19x0 series (Accelero S1).              06/2007 DragonSteelMods: Accelero S1 AC has achieved something great in the Accelero S1, a perfect combination of performance and silence.              06/2007 PC-Attitude: Accelero S1 + Turbo Module The Accelero S1 is finally a very good product, a cooling solution for people looking for silence, high performance and good price.              06/2007 Overclock Intelligence Agency: Accelero S1 As a silent-and I mean silent: no fans, ifs, ands, or buts-alternative to the stock cooler, it performs well.              05/2007 X-bit labs: Accelero S1 Arctic Cooling solutions proved up to the mark and performed perfect according to their positioning and range of supported graphics cards. They are truly the best graphics card coolers out there.              05/2007 TweakTown: Accelero S1 This is o­ne of the better versions of the X1950PRO and the silent design works well. The card performs just as well as all those other models with noisy spinning fans.              05/2007 hardwaretech: Accelero S1 It is the most effective product. the product simply has no rivals. You get cooling system, excellent cooling even hot videocards.              05/2007 Fusion Mods: Accelero S1 I definitely recommend that all of you check out the Accelero S1.              05/2007 Overclocking.es: Accelero S1 It has proven to we more than enought, performing even better than the 7900GTO/GTX stock cooler. We've been very impressed with the great performance of this heatsink, which makes us to recommend it for everyone who has a compatible graphic card and is searching for silent or better temperatures.              05/2007 UNLiMiTPC.com: Accelero S1 This Arctic cooling Accelero S1 should proof that Fanless VGA cooling is as good as the other cooling as you can see the result . With air flow in the case and with properly essemble the Arctic Cooling Accelero S1 should work good and carries away the heat form your VGA.              04/2007 Area3d: Beide Kühler können auf der ganzen Linie überzeugen. So ist der S1 derzeit wohl mit Abstand der beste passive Grafikkartenkühler auf dem Markt. Er punktet mit einmaliger Kühlleistung, einer erstklassigen Verarbeitung und einem für derartige Produkte niedrigen Preis. Zum X2 kann man eigentlich nicht mehr viel sagen. Er hat sich vielfach bewährt und auch unser Test bestätigt ihm eine Spitzenleistung. Leise, stark und günstig. Ein gutes Beispiel wie ein guter Kühler zu sein hat. Es wäre vermessen nicht beide Kühler mit Gold zu belohnen.              04/2007 FiringSquad: Accelero S1 The heat pipe cooler does a great job of keeping the GPU cool. This is an impressive achievement for a card that’s cooled with no fans, so Arctic Cooling and PowerColor deserve credit for getting their cooling system right o­n the X1950 Pro SCS3.              04/2007 bit-tech.net: Accelero S1 the Arctic Cooling Accelero S1 is up to the challenge of keeping ATI's full-fat RV570 chip under control. In fact, it's actually better at the job than ATI's reference cooler -- this is no mean feat! The Accelero S1 was able to keep the GPU temperature under 65 degrees, even with the core overclocked to 600MHz, which is also mighty impressive. For reference purposes, the loaded core temperature is a full 10°C higher with ATI's stock cooler installed at the same ambient temperature!              04/2007 Bjorn3D: Accelero S1 It's silent yet it runs cool. Checking SCS3 with a hand revealved no sign of hot spots. Even memory heatsinks weren't hot. Without a doubt, this is o­ne of the best performing passively cooled cards that I have reviewed so far.              03/2007 Elite Bastards: Accelero S1 Incredibly well. We find the PowerColor board actually running a few degrees cooler than the active solution. Astonishing results for a passively cooled board. The innovative cooling solution not o­nly cools the core well, it actually manages to beat out some active cooling solutions! Impressive stuff indeed.              03/2007 Coolaler: Accelero S1 Even without any fan, the heat dissipation and temperature performance both are satified.              03/2007 D-Cross: Accelero S1 The graphic card overall has very good heat dissipation design. The whole SCS3 performs greatly. Not o­nly doesn't have the annoying noise, when check out the temperature from the panel control, still not reaches 60C. The heat dissipation performs greatly.
